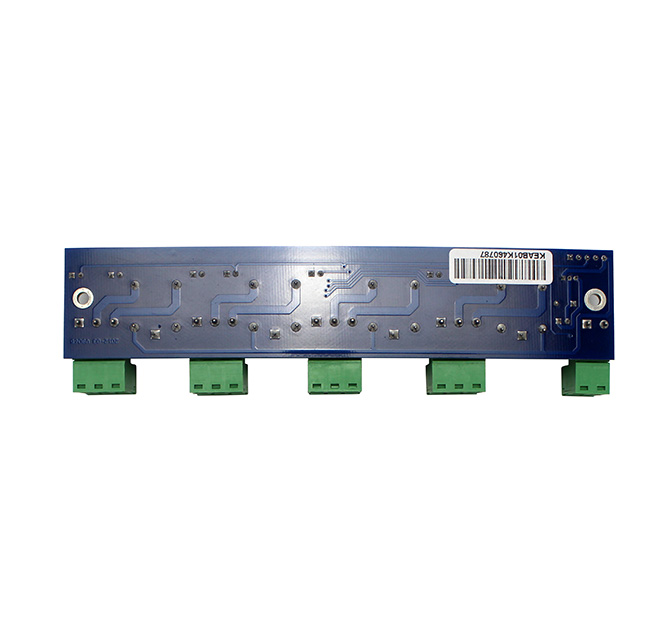

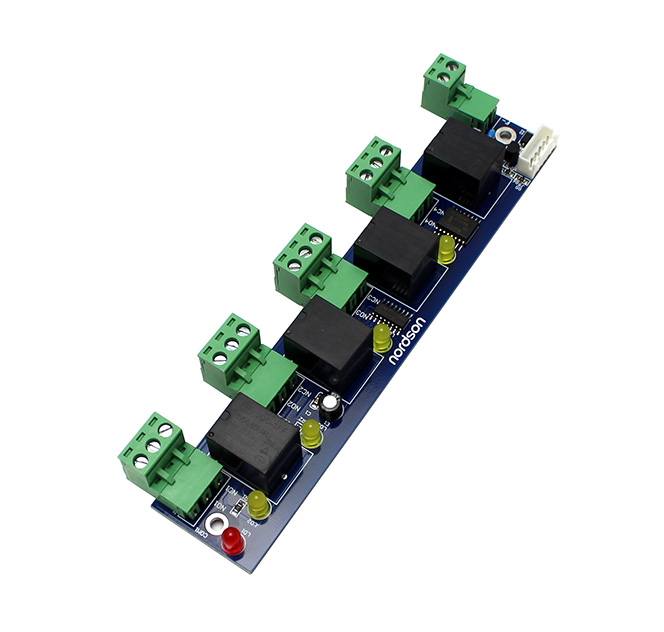

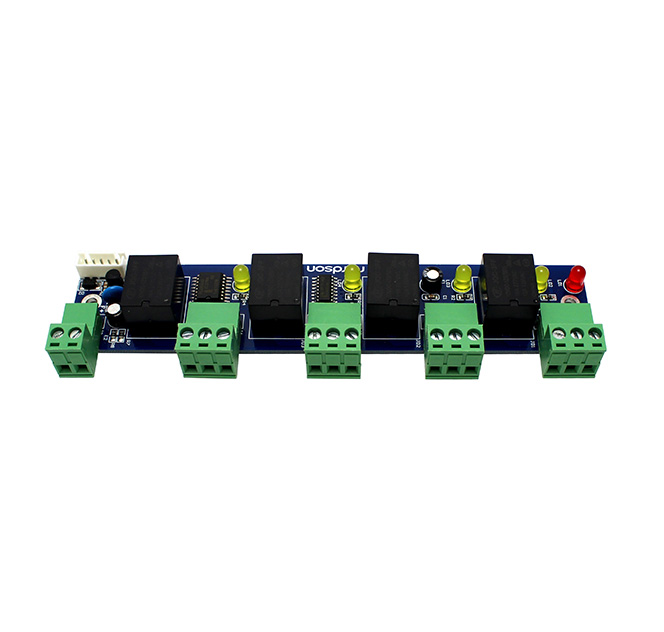

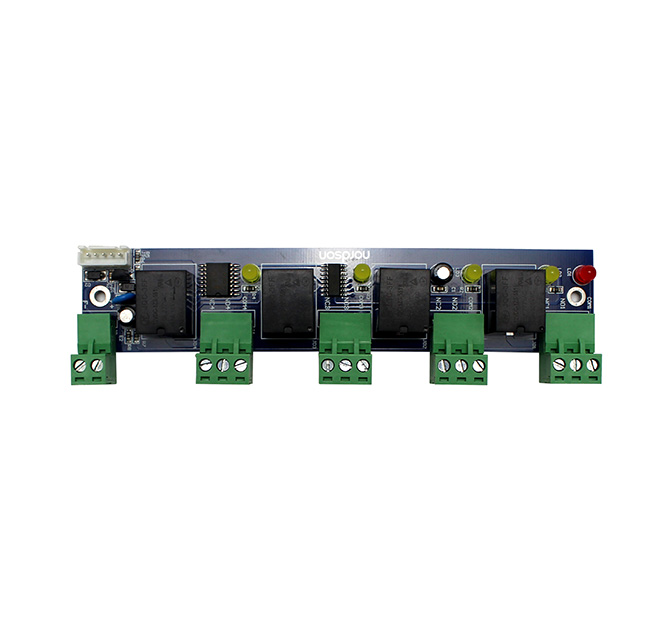

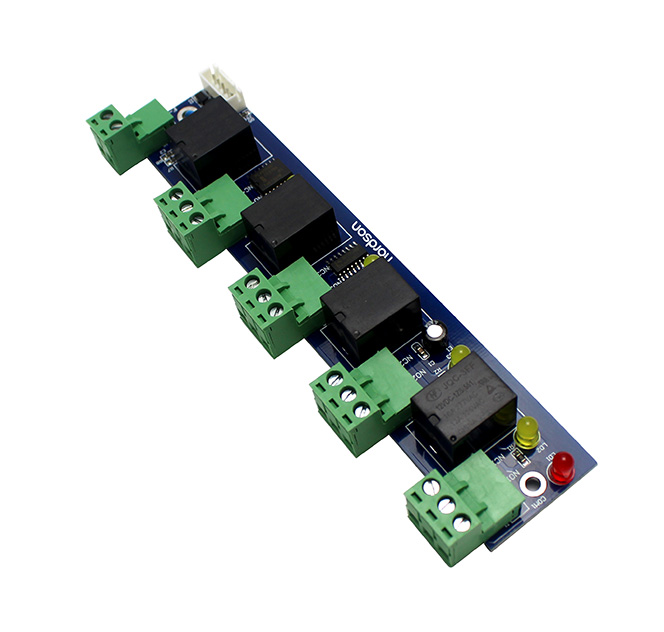

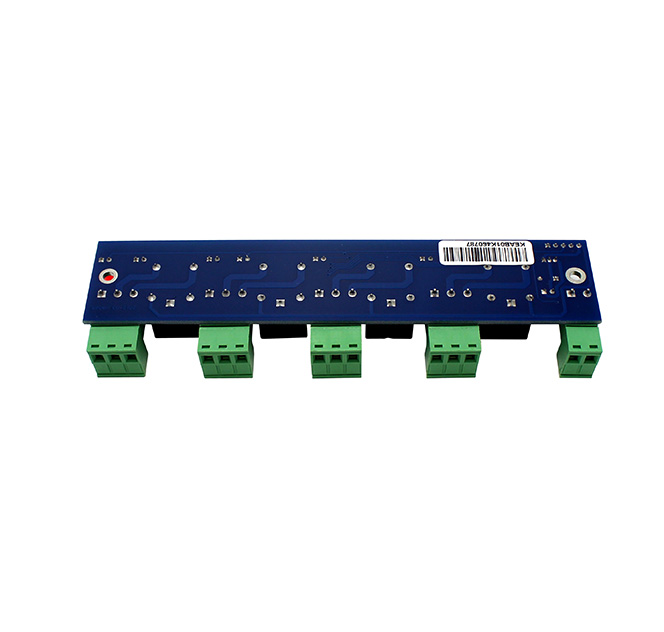

J01 Enhanced Alarm Output and Integrated Fire Control Expansion Controller

NS-J01 Enhanced Alarm Output and Integrated Fire Control Expansion Controller with alarm output and fire linkage expansion board, with access controllers, software settings can be achieved with the fire and alarm output signals. Four alarm output, software can be freely defined to the host controller of a door or a few gate functions.

NS-J01 Enhanced Alarm Output and Integrated Fire Control Expansion Controller with alarm output and fire linkage expansion board, with access controllers, software settings can be achieved with the fire and alarm output signals. Four alarm output, software can be freely defined to the host controller of a door or a few gate functions.
This enhanced Alarm Output and Integrated Fire Control Expansion Panel only can compat with the NS-E series controller.
1.4-way alarm output, you can specify which function to which door of the controled area
2.The controller can connect the fire control output, when fire signal received, doors in the controlled area will be open automatically, and fire alarm will be recorded.
3.The controller can control: invalid break in alarm, long time unlocking alarm, intimidation break in alarm, unlocking linkage ouput, invalid card swiping alarm, integrated fire control alarm
4.Allow to change anti-intimidation password
5.The controller can set long time unclocking alarm time: 0-6000 seconds
6.The controller can set the time delay of each output from 0 to 6000 seconds
7.Applicable to access controllers: NS-L1,NS-L2,NS-L4

Function Introduction
Applicable to access controllers	NS-L1 / NS-L2/ NS-L4
Can Control:	invalid break in alarm, long time unlocking alarm, intimidation break in alarm, unlocking linkage ouput, invalid card swiping alarm, integrated fire control alarm
Should pay attention to:	This enhanced Alarm Output and Integrated Fire Control Expansion Panel only can compat with the NS-110 series controller, and the software should be V6.6 or higher version.
Output and input :	4-way input and 4-way alarm output. You can specify which function to which door of the controled area .Can connect the fire control output, when fire signal received, doors in the controlled area will be open automatically, and fire alarm will be recorded.
Other:	Allow to change anti-intimidation password
	Can set long time unclocking alarm time: 0-6000 seconds
	Can set the time delay of each output from 0 to 6000 seconds
Unit Packing Way	Brown box
Accessories	User Manual, warranty card, necessary parts for connecting panel
Package Size	21436143mm
