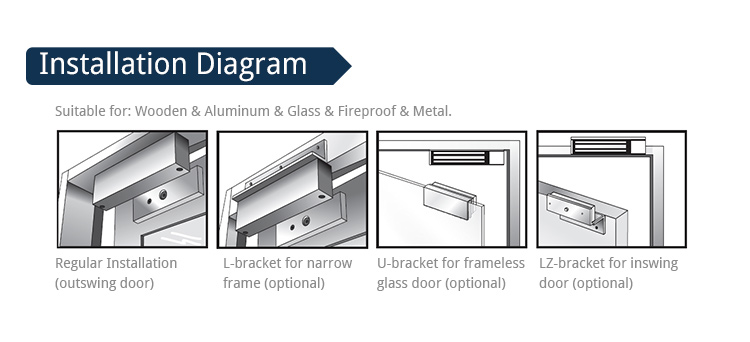

NE-280S,single door magnetic lock, with the door state signal feedback ,specially used to normal glass door,wooden door,metal door,fire doors, small doors,the most widely used.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.
Special Anti-residual magnetic design makes automatic access control safer and more convenient.

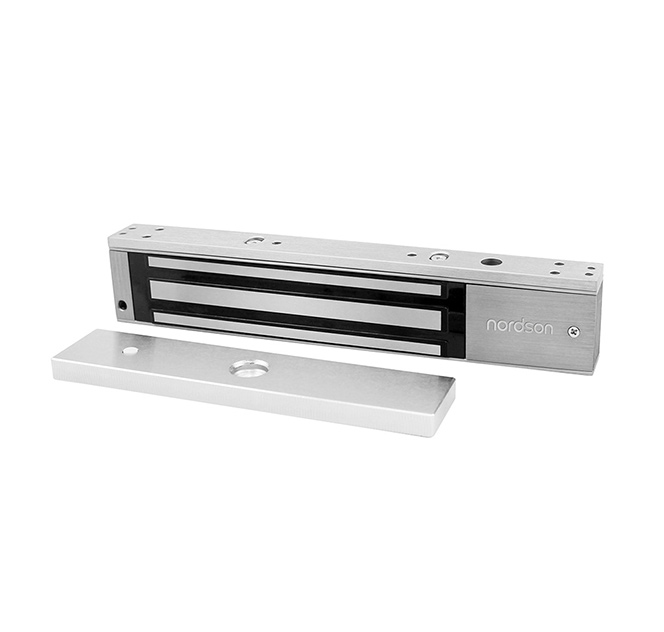

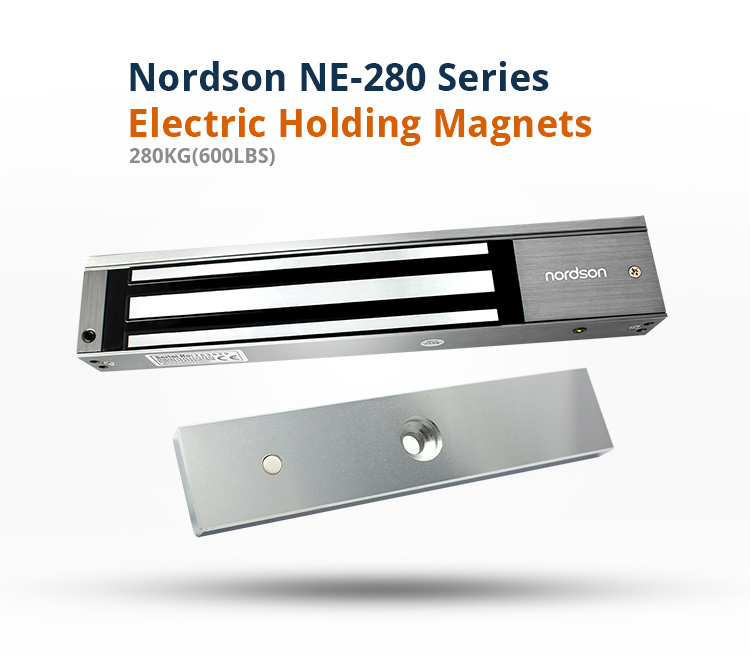

NE-280S(Magnetic lock 600Lbs)

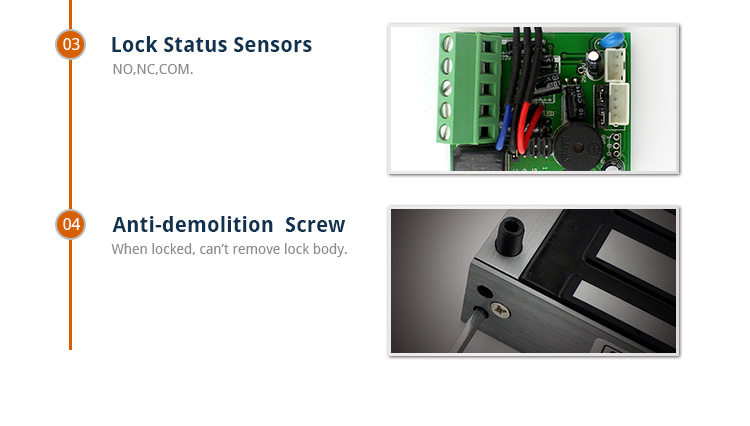

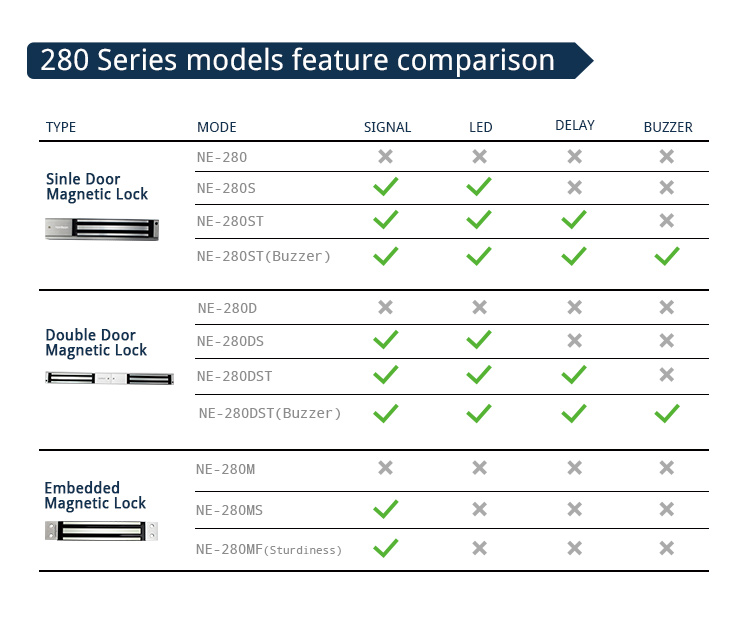

With LED and signal output

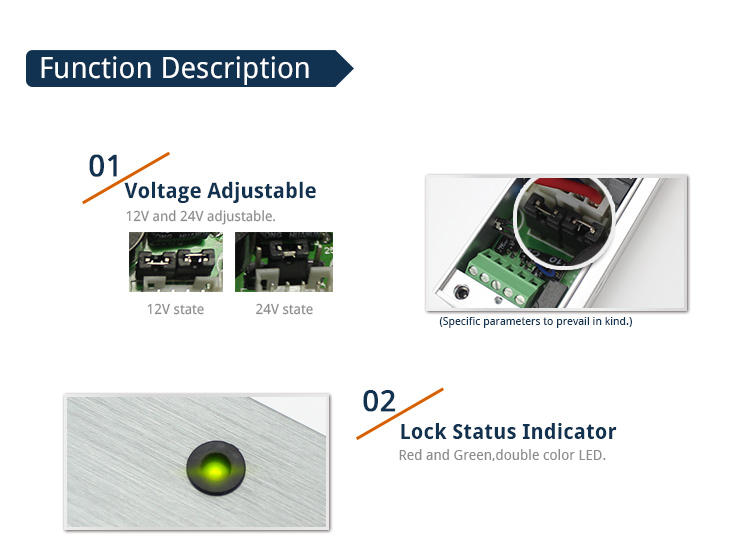

Voltage:DC12V or DC24V
Waterproof IP65 Customization Available

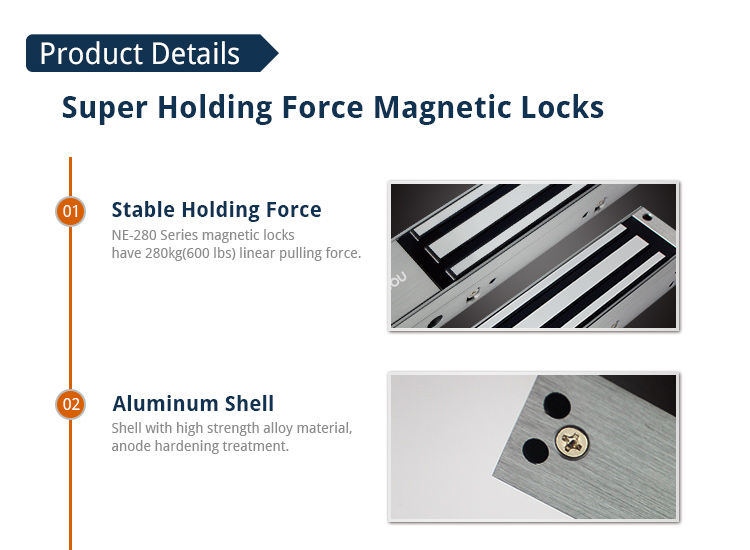

Holding Force: 280kg (600Lbs)

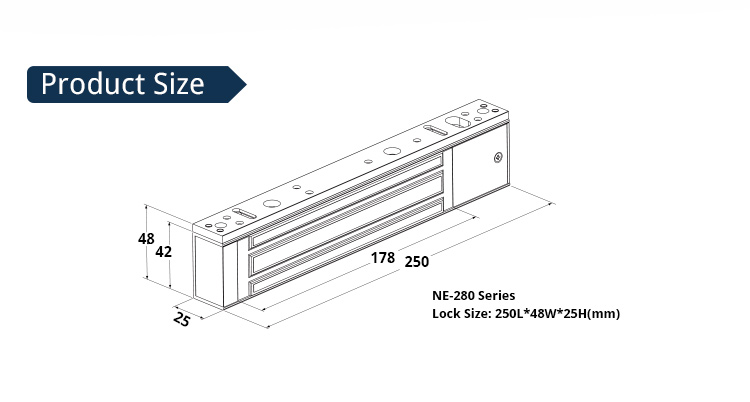

Lock Size: 250L*48W*25H(mm)
Armature Plate:180L*38W*11H(mm)
Current Draw: 12V/500mA 24V/250mA
LED indicates the door is unlock,Green indicates the door is lock
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame

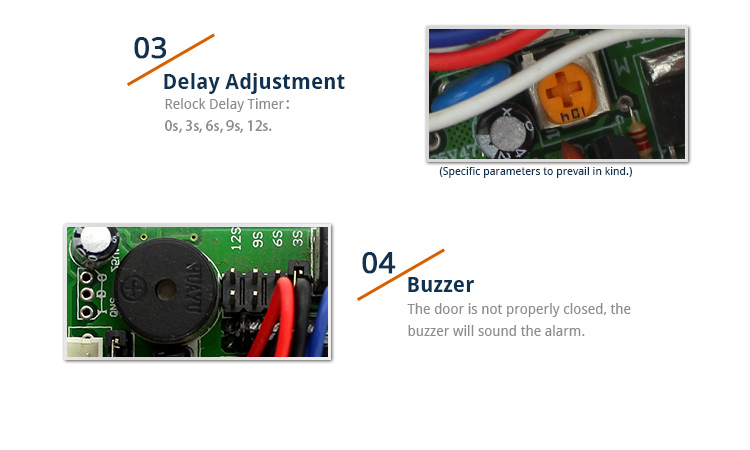

With Buzzer Customization Available
Weight: 2.0kg
Voltage:DC12V or DC24V
Waterproof IP65 Customization Available
Holding Force: 280kg (600Lbs)
Lock Size: 250L*48W*25H(mm)
Armature Plate:180L*38W*11H(mm)
Current Draw: 12V/500mA 24V/250mA
LED indicates the door is unlock,Green indicates the door is lock
No residual magnetism, no mechanical damage 90 degrees open for all kinds of doors with frame
With Buzzer Customization Available
Weight: 2.0kg
