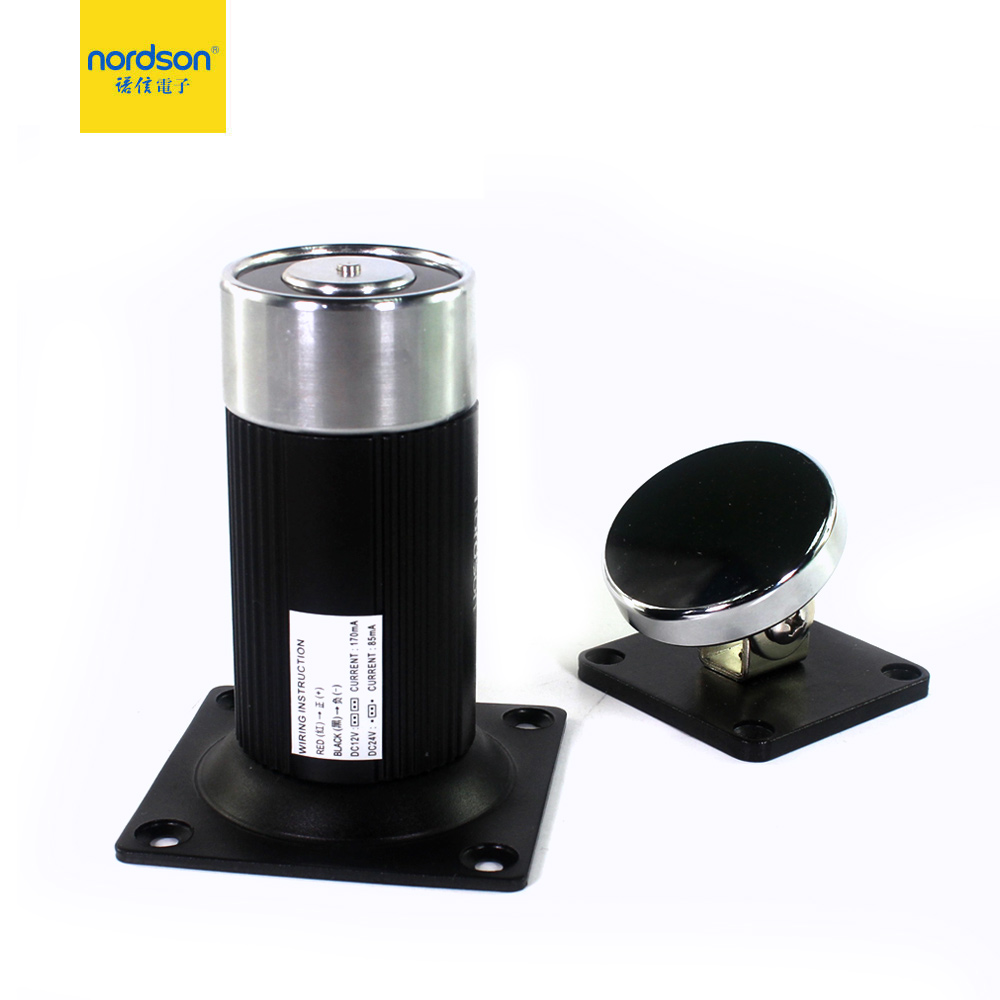

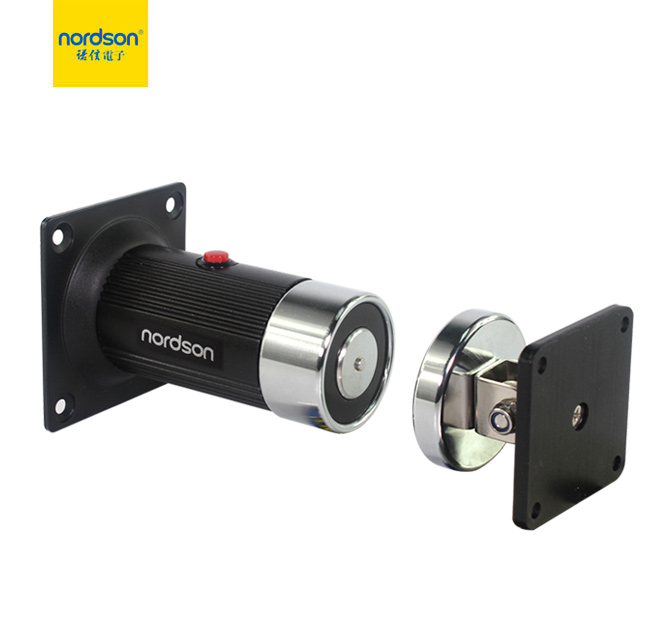

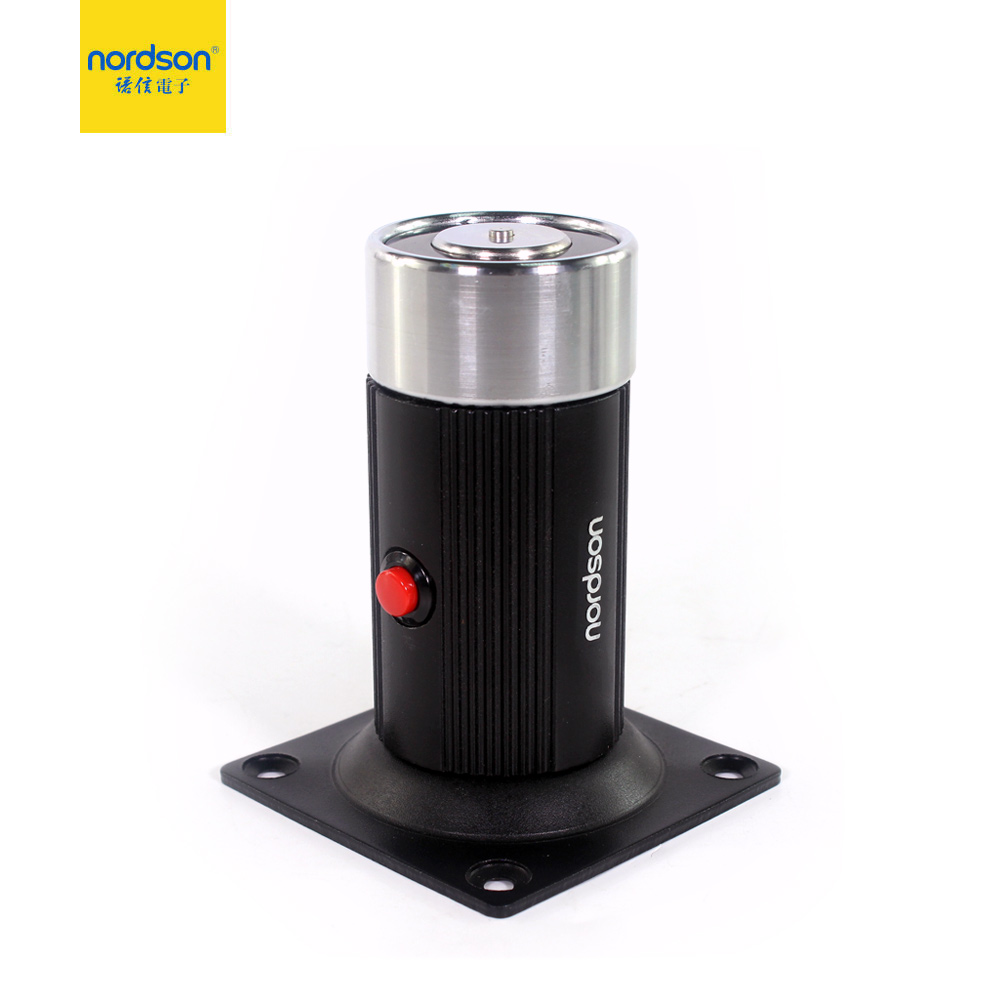

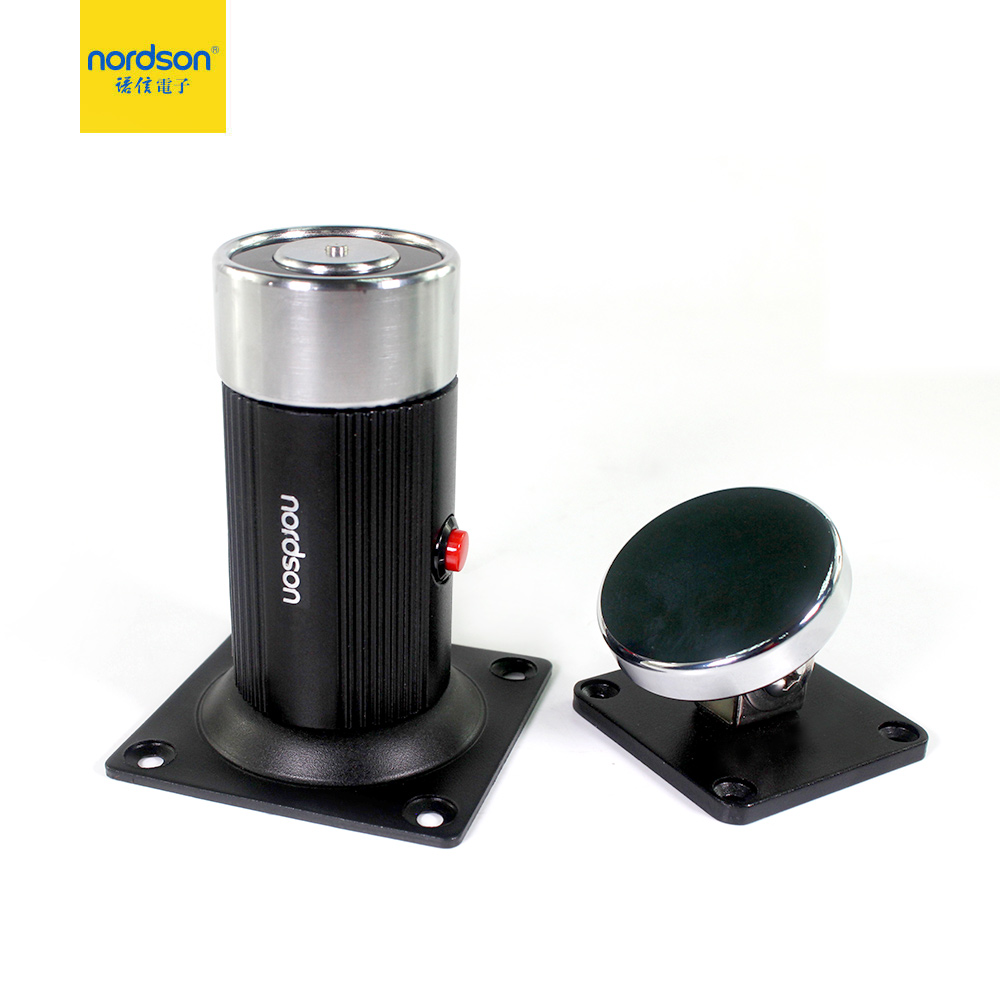

NP-G120 Hold Open Magnets

Dimensions: 80L*80W*105H(mm)
Holding Force: 50kg(100Lbs)
Voltage: 12/24VDC+10%
Current Draw: 12V/170mA 24V/85mA

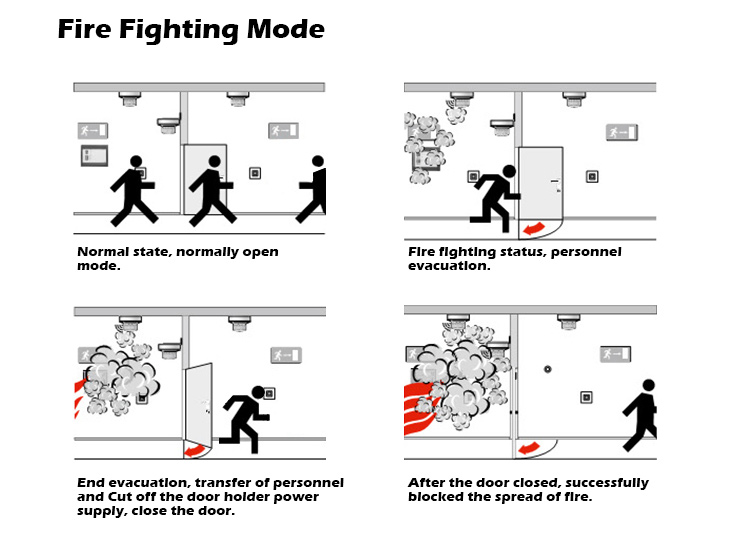

Fail-safe type (power to lock), suitable for fire exit door.
Weight: 1.2kg

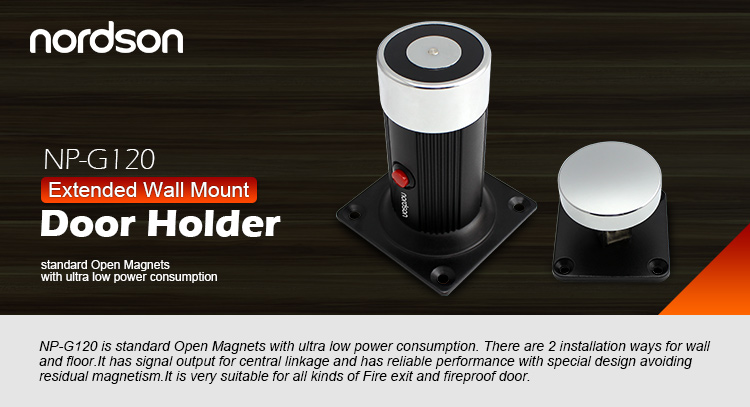

NP-G120 is standard Open Magnets with ultra low power consumption. There are 2 installation ways for wall and floor.It has signal output for central linkage and has reliable performance with special design avoiding residual magnetism.It is very suitable for all kinds of Fire exit and fireproof door.

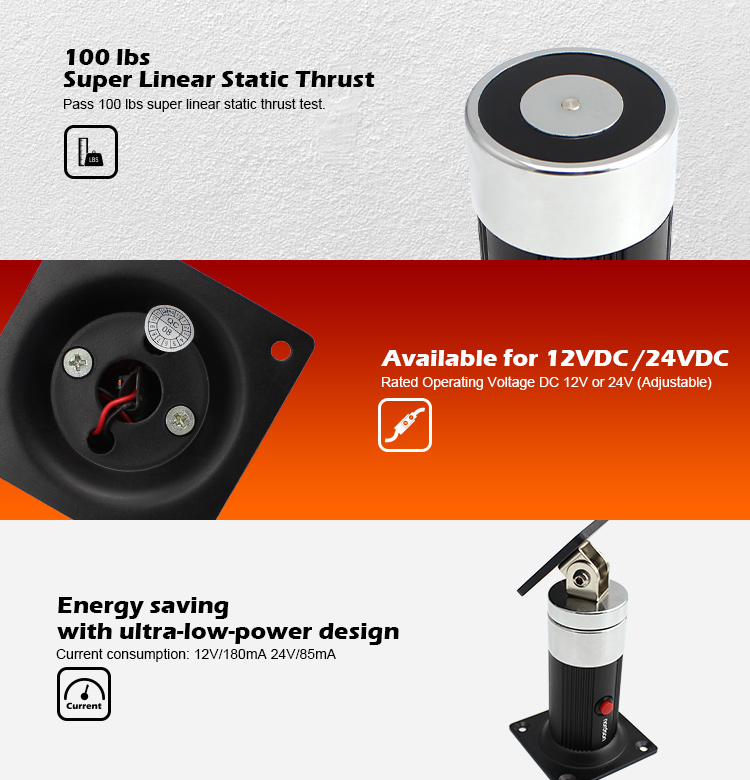

1.Pass 100lbs super linear static thrust test

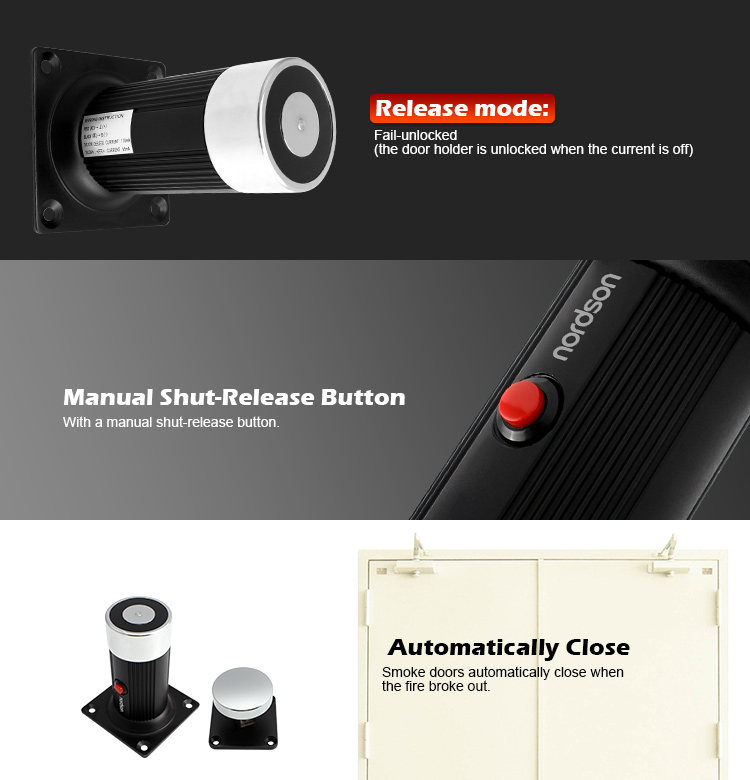

2.Release mode: Fail-unlocked(the strike is unlocked when the current is off)
3.Available for 12VDC /24VDC
4.Energy saving with ultra-low-power design

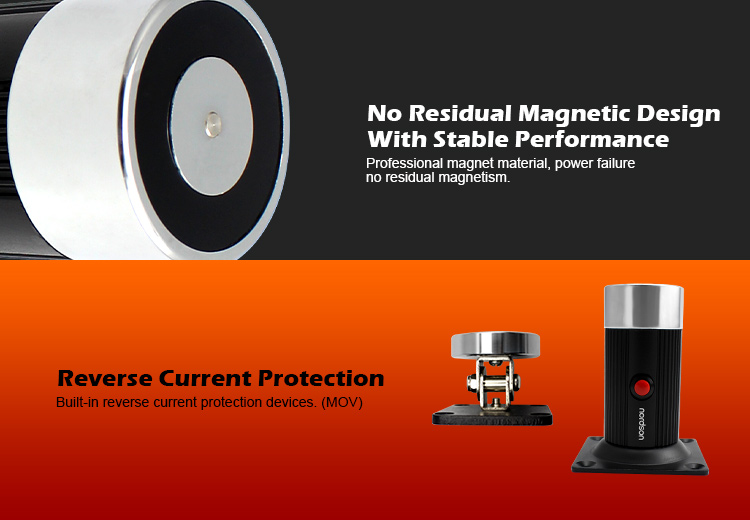

5.No residual magnetic design with stable performance
6.MOV Provides Reverse Current Protection.

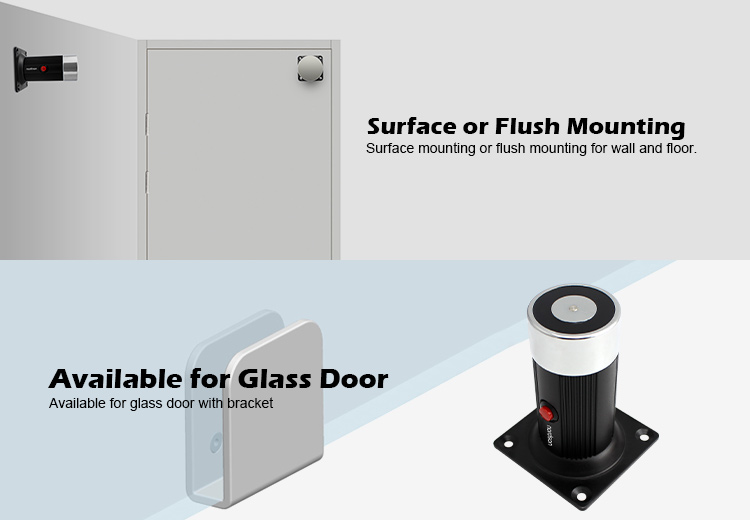

7.Surface mounting or flush mounting for wall and floor
8.Available for glass door with bracket

Version	Fail-unlocked
Holding Force	50kg(100Lbs)
Standard Functions	Manual door release button
Lock Status Sensors	NO
Rated Operating Voltage	DC 12V or 24V (Adjustable)
Current consumption	12V/180mA 24V/85mA
Surface finish	Paint and Zinc plated
Ambient temperature in °C	-10°C - +55°C

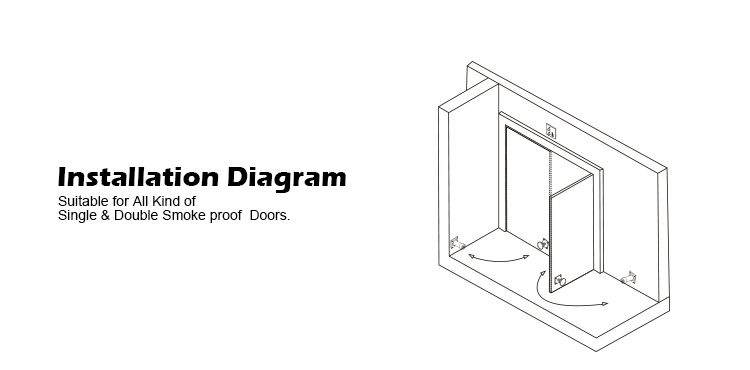

Suitable for	All Kind of Single & Double Smokeproof Doors

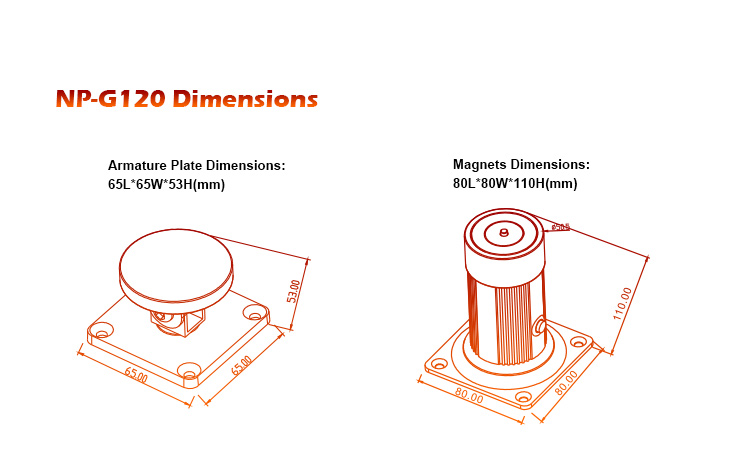

Magnets Dimensions(L x W x D)	80L80W110H(mm)

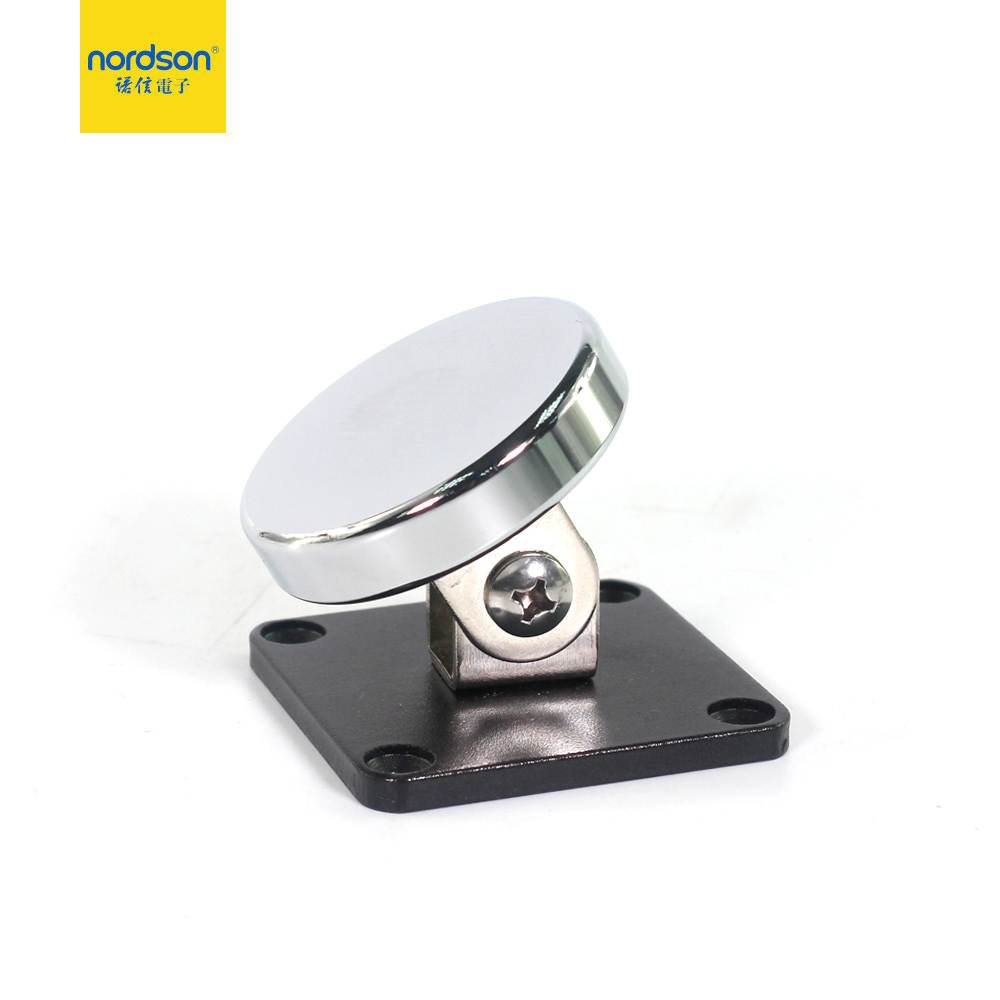

Armature Plate Dimensions(L x W x D)	65L65W53H(mm)
Weight in kg	1.0kg
CE-mark for building	YES
Rohs-mark for building	YES
