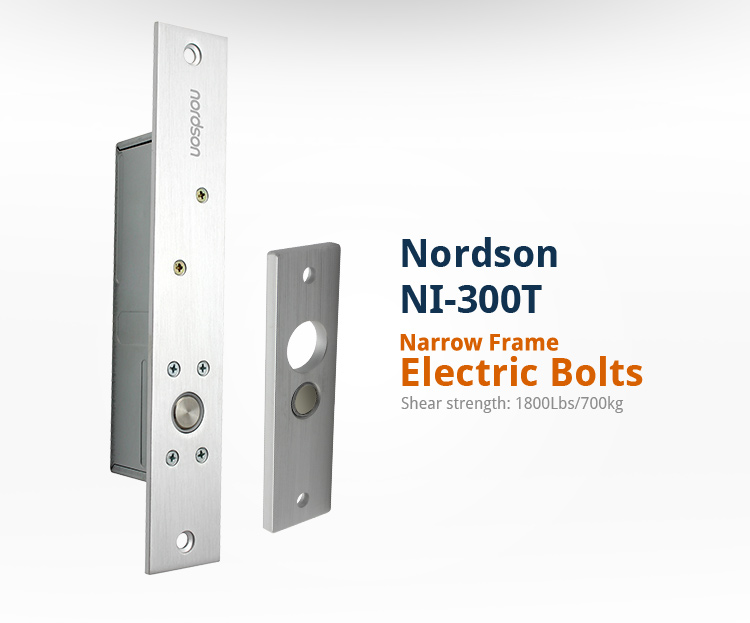

NI-300T Narrow Frame Electric Bolt Lock

NI-300T Narrow Frame Electric Bolt Lock

Fail-safe type: Power to lock
2 Lines Eletric Lock with Low Temperature

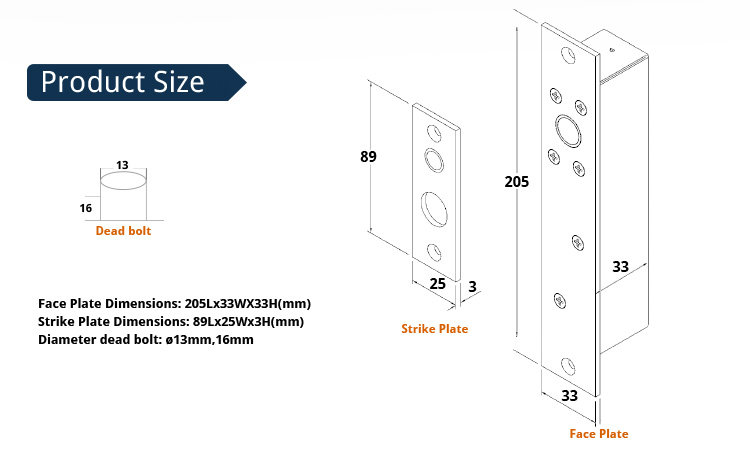

Face Plate: 205L*33W*33H(mm)
Strike Plate: 89L*25W*3W(mm)
Bolt: 16mm DIA,stainless steel 13mm throw

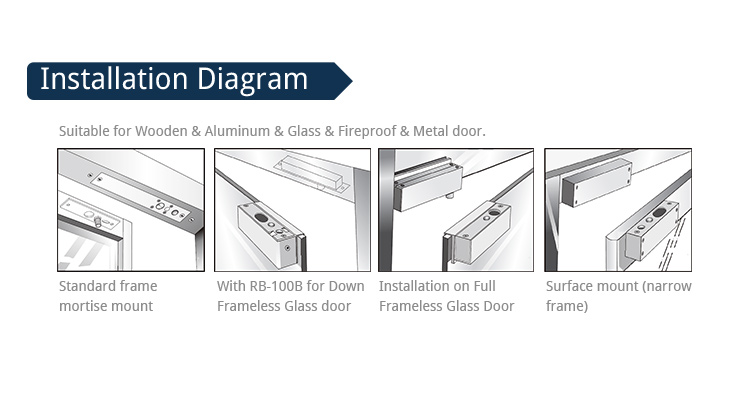

Suitable for: Wooden Door,Glass Door,Metal Door,PVC Door
Weight: 0.5kg

inquiry

NI-300T Narrow frame sturdiness electric bolt lock, suit for narrow-framed glass doors, wooden doors, metal doors, fire doors. Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving. Attached accessories for frameless glass door and narrow panel door.

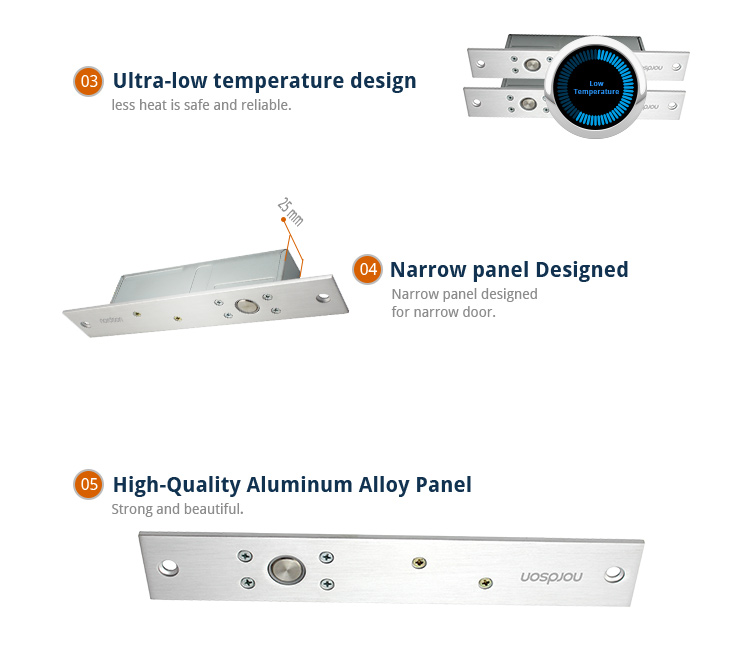

1. Narrow panel designed for narrow door

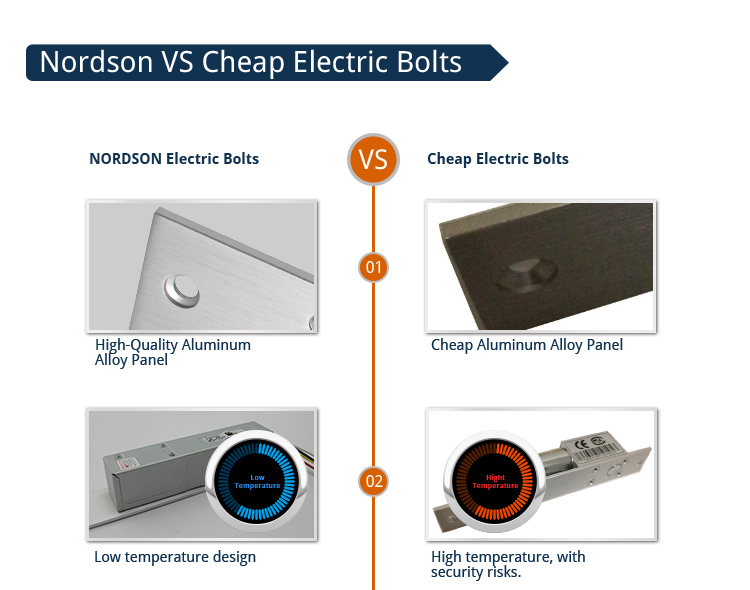

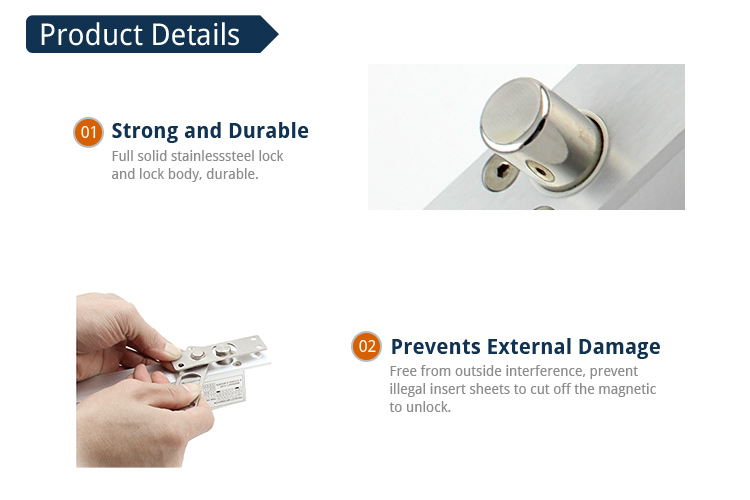

2. Full solid stainless steel lock and lock body,durable;
3. Ultra-low temperature design, less heat is safe andreliable
A.Momentary current conversion
B. electric bolt will start scouting low power consumption and low temperature conversion while Door position is not corrector with stands bolt
C. Photoelectric technology, reduce mechanical failure
4. Optical control techniques to prevent mechanicalfailure
5. Ultra-low-power design, energy saving
6. 500,000 times successful test
7. Built-in reverse current preventing equipment.
8. Intelligent single-chip configuration, level three current applications
9. LED light design in the lock front panel, can beeasily displayed during embedded installation

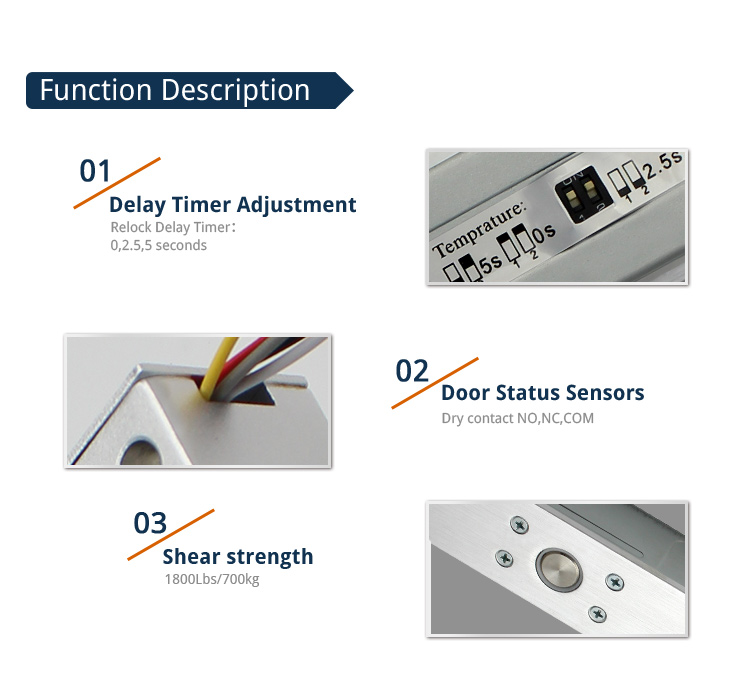

10. time delay setting: 0/3/6/9 sec.
11. Protective performance with intelligent single-chip configuration

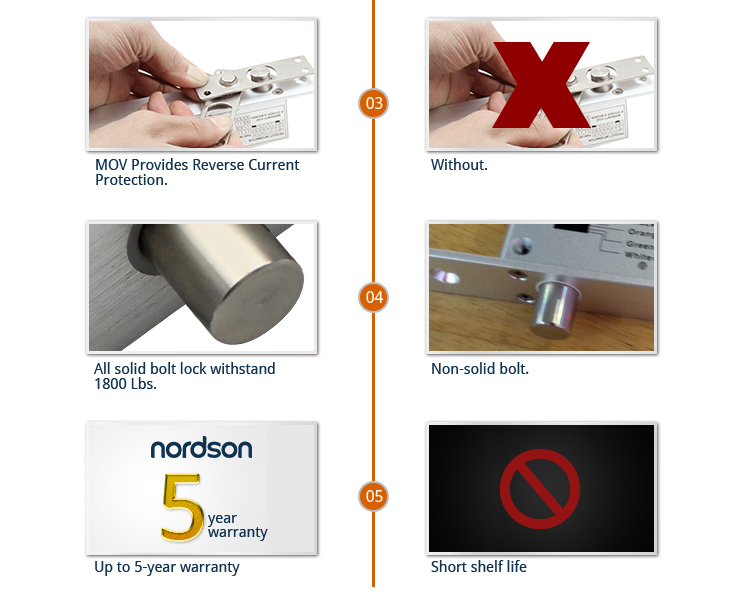

12. Prevents external damage，MOV Provides Reverse Current Protection
13. overload dual current
14. Built-in optical coupling open output push button contact
15. Auto-relock if no Action within 5 secs.
16. CE, ROHS & MA certificates
