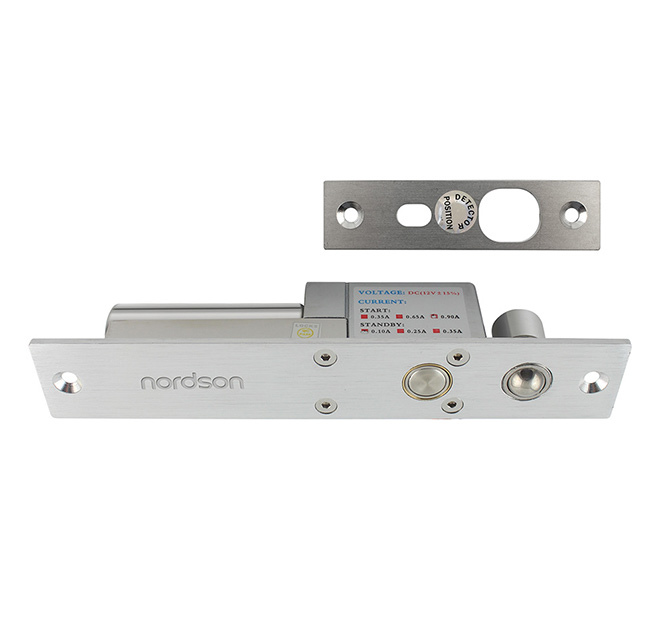

Stell Electric bolt lock,Electronic door lock OEM,Electric Shutter Lock

Fail-safe type: Power to lock
Face Plate: 235L*35W*38H(mm)
Strike Plate : 130L*30W*2W(mm)
Voltage: 12VDC
Start Current: 650mA Standby Current: 250mA
Timer: 0/3/6/9 seconds available to set
Main Function: 6 line magnetic output with LED and timer
Weight: 0.72kg

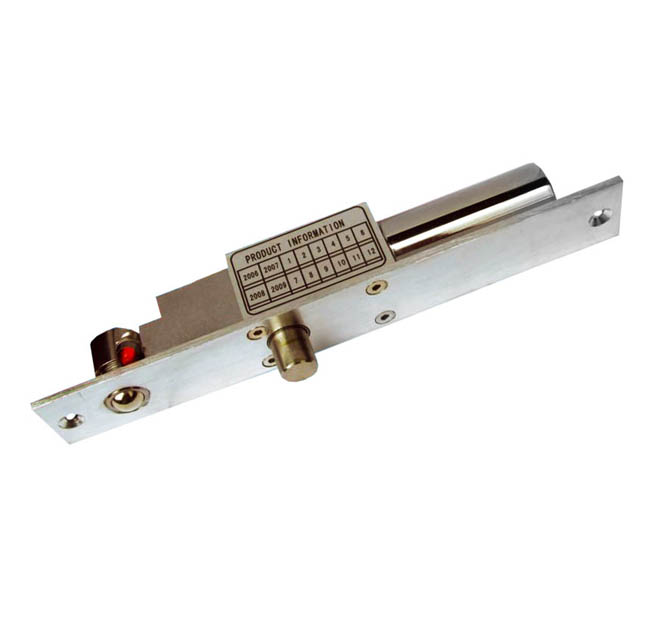

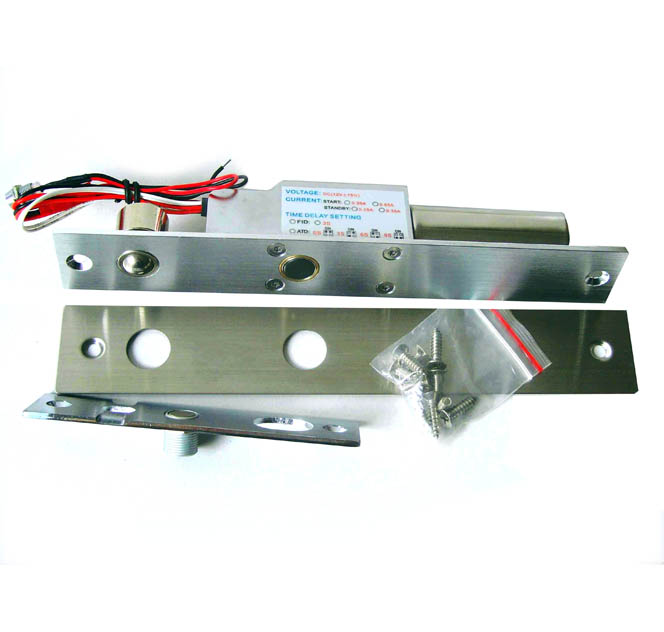

NI-200T Electric Shutter Lock, is a fast and accurate positioning low magnetic induction electric locks, which suits for framed glass doors, wooden doors, metal doors, fire doors. Special photoelectric control ultra-low temperature, low efficacy,Safe and reliable energy saving. Particularly suit for 180 degree swing door or glass door.
1. Special positioning beads,lock rapidly
2. Full solid stainless steel lock and lock body,durable;
3. Ultra-low temperature design, less heat is safe andreliable
A.Momentary current conversion
B. electric bolt will start scouting low power consumption and low temperature conversion while Door position is not corrector with stands bolt
C. Photoelectric technology, reduce mechanical failure
4. Optical control techniques to prevent mechanical failure
5. Ultra-low-power design, energy saving
6. 500,000 times successful test
7. Built-in reverse current preventing equipment.
8. Intelligent single-chip configuration, level three current applications
9. Product specification is complete for all types of door installation
10. time delay setting: 0/3/6/9 sec.
11. Protective performance with intelligent single-chip configuration
12. Prevents external damage，MOV Provides Reverse Current Protection
13. overload dual current
14. Built-in optical coupling open output push button contact
15. Auto-relock if no Action within 5 secs.
16. CE, ROHS & MA certificates

Version	Fail-unlocked
Diameter dead bolt	ø16mm,16mm
Shear strength	2000Lbs/800kg
Lock Status Indicator	LED status indicators
Lock Status Sensors	Dry contact NO,NC,COM
Door Status Sensors	Dry contact NO,COM
Relock Delay Timer	0,3,6,9 seconds open time delay is adjustable
Rated Operating Voltage	DC 12V or 24V (Customization Available)
Start Current	650mA
Standby Current	250mA
Optional Functions	Relock Delay Timer,Buzzer
Face place material	High Aluminum
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C
Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal door
Face Plate Dimensions(L x W x D)	235Lx35WX38H(mm)
Strike Plate Dimensions(L x W x D)	130Lx30Wx2W(mm)
Weight in kg	0.96kg
CE-mark Certificat	YES
Rohs-mark Certificat	YES
