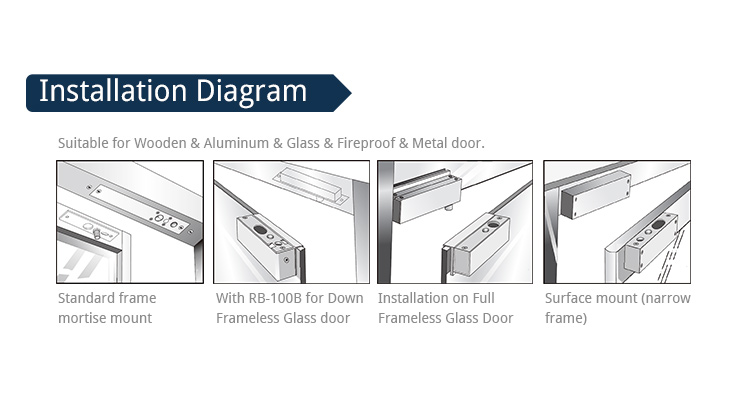

NI-100E is a multi function 5 lines Electric bolt lock with door status signal output and delay function, which is fail safe electric bolt lock that suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low temperature design, which makes access safer and durable.
Home >
Products >
Electric Locking Devices >
Standard Electric Bolts >
NI-100E Electric bolt lock

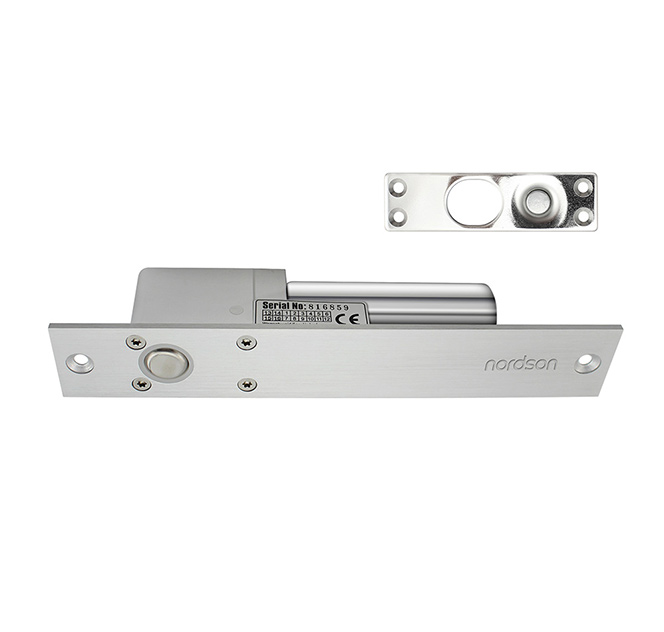

NI-100E Electric bolt lock
Fail-safe type: Power to lock

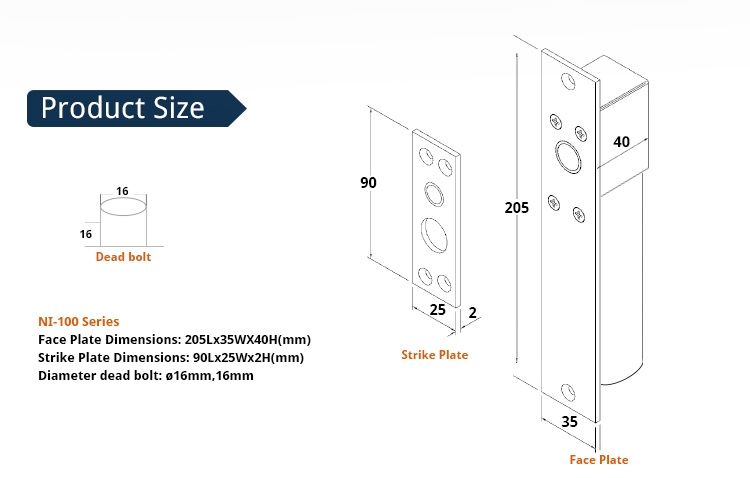

Face Plate: 205L*35W*40H(mm)
Strike Plate : 90L*25W*2H(mm)

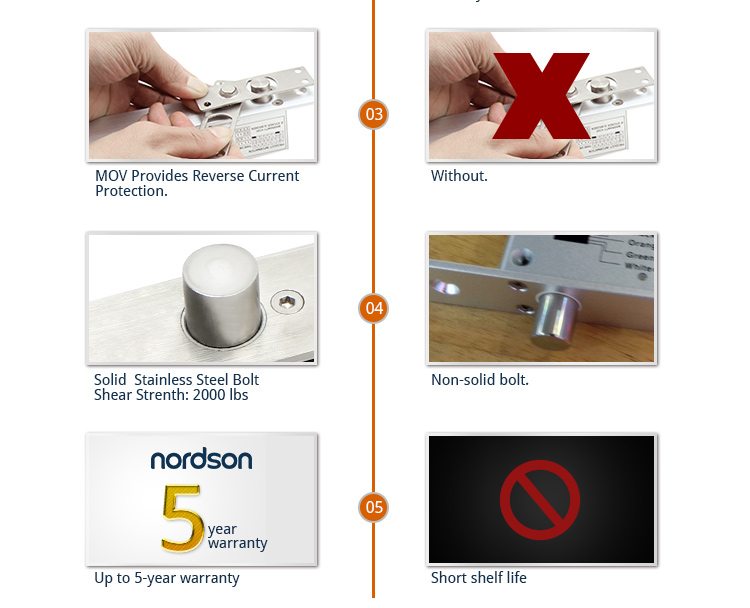

Bolt: 16mm (Throw) * 16mm(Diameter)
Fail Safe:Power to lock
Voltage: DC12V
Start Current: 960mA Standby Current: 130mA
Signal Output: door open or door close state detection output point,NC/COM
Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.

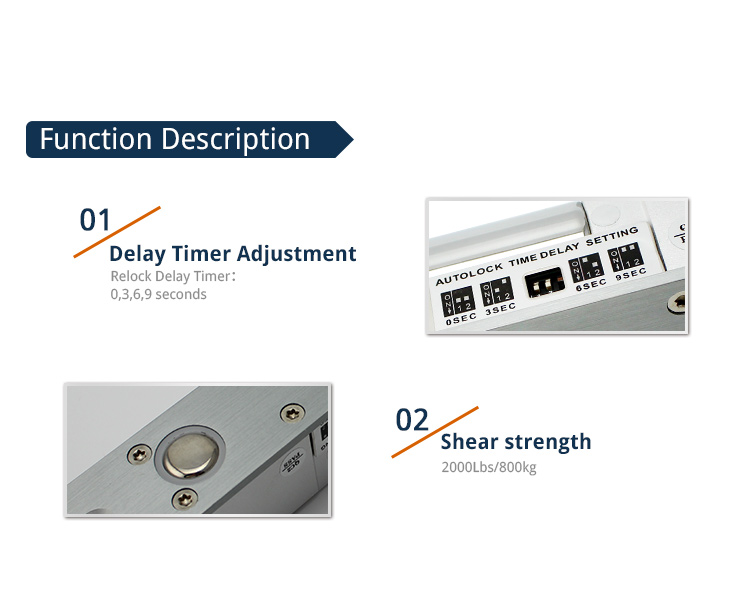

Timer: 0/3/6/9 seconds available to set

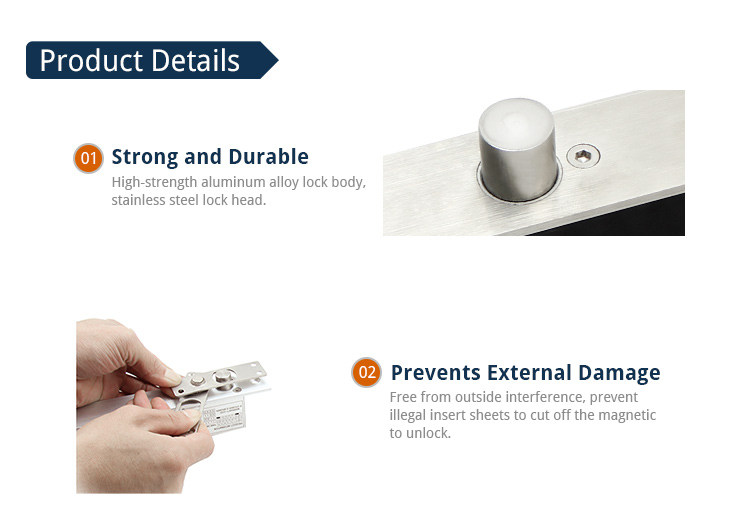

Face Place Material:High Aluminum,Carrulous Line Finished
Weight: 0.65kg
Face Plate: 205L*35W*40H(mm)
Strike Plate : 90L*25W*2H(mm)
Bolt: 16mm (Throw) * 16mm(Diameter)
Fail Safe:Power to lock
Voltage: DC12V
Start Current: 960mA Standby Current: 130mA
Signal Output: door open or door close state detection output point,NC/COM
Built-in photo couplers door open push button input contact. Door will lock again automatically when door is not open within 5 seconds.
Timer: 0/3/6/9 seconds available to set
Face Place Material:High Aluminum,Carrulous Line Finished
Weight: 0.65kg
