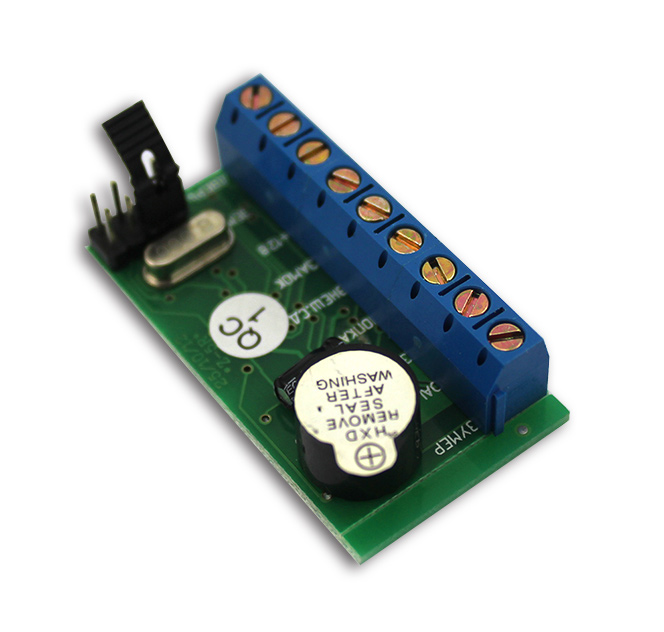

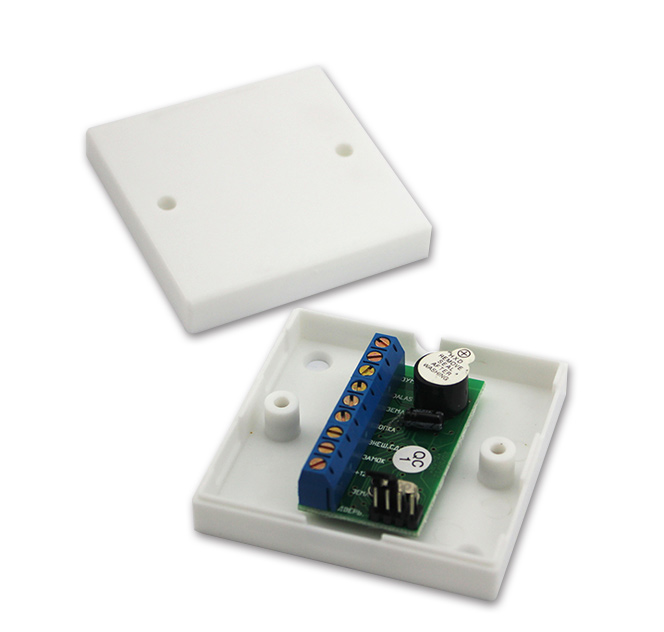

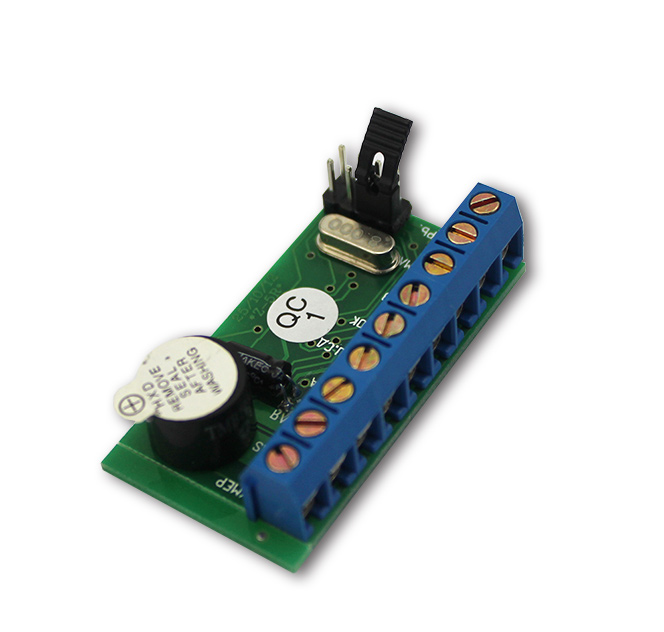

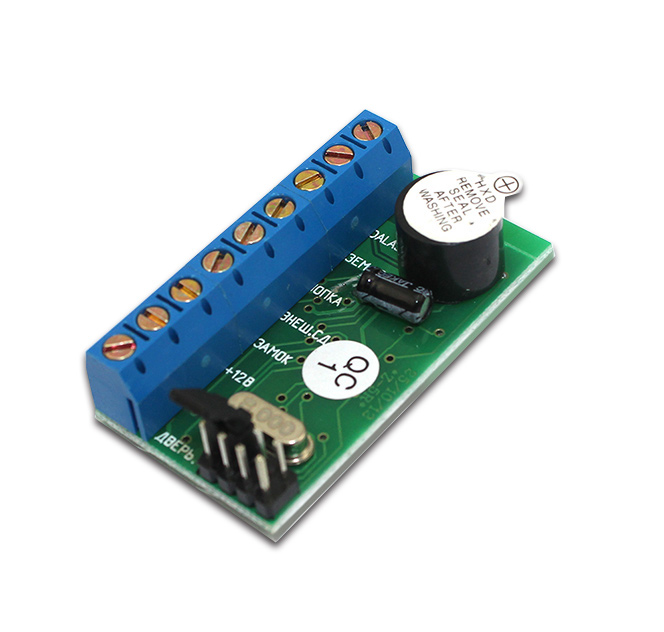

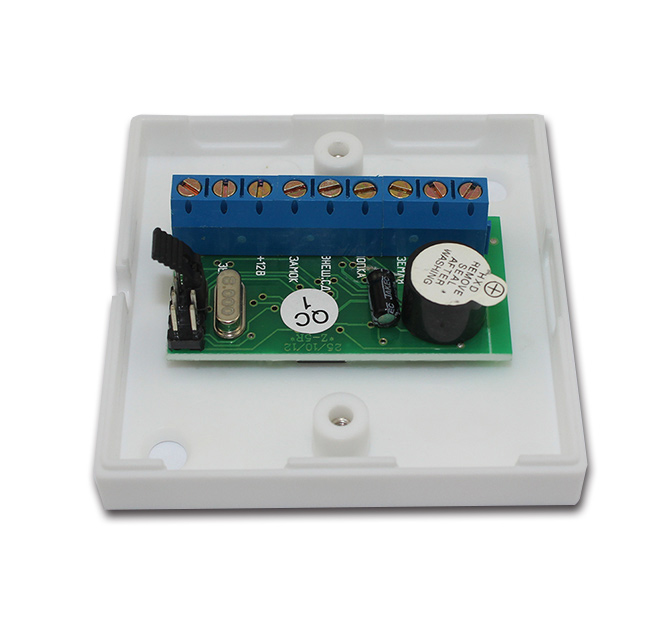

NT-Z5RMini standalone access controller is almost the smallest standalone access controller in the world, it has special designed for management of the electronic lock. Mini dimension allows to install it inside the lock as aboard, as well as separately in the case.

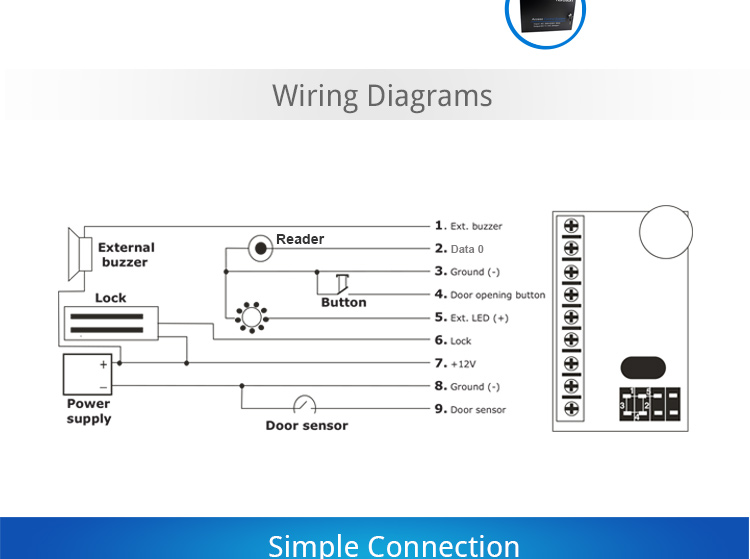

NT-Z5R has plenty functions, It can control the reader, lock opening button, door opening sensor, electronic lock, external LED, external buzzer, power supply, etc.

NT-Z5R owns 4-operation modes (normal mode/ safe mode/ accept mode/ trigger mode), It satisfies different security requirements.

1.Normalmode : Normal card and safety card open the door.

2. safemode: Special authorization safety card enter the door. (It is different from normal card , it must special authorization).

3. Acceptmode: Enter the accept mode, then swipe blank card, the blank card information will be saved.

4. Triggercard: Swiping manage card, the door keep open. ( when you swipe managecard the second time,
the door back to normal mode).

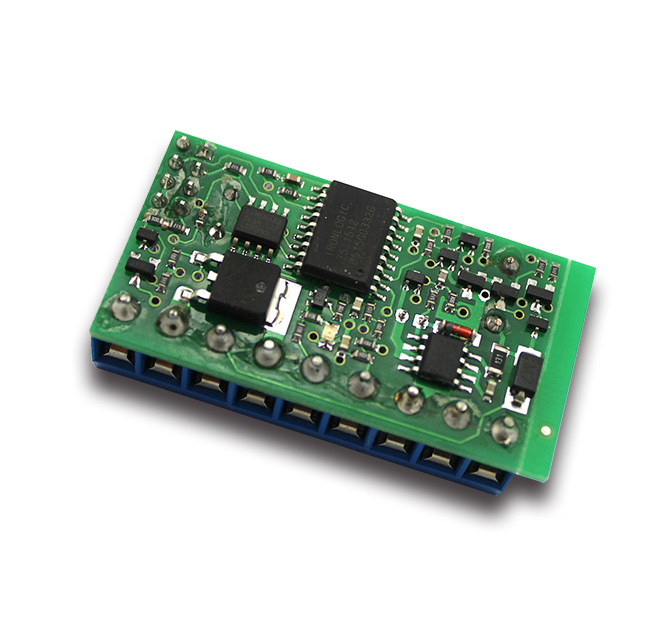

◆The Mini access control is the standalone controller designed for management of the electric locks.Controller dimensions allows to install it inside the lock as a board
◆4-Operation Mode:
1.Normal mode operation;
2.Safe mode operation;
3.Accept mode operation;
4.Trigger mode operation.
◆Card capacity: 1364
◆External readers count:1
◆External readers protocol iButton (1-Wire)
◆Support management card easy to add user card and delete user card

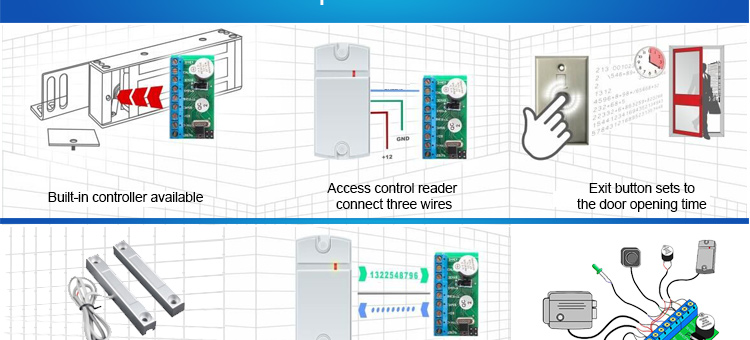

◆Full Access Control Features,Anti-passback,Access control interface for electric lock,door sensor,exit button,external LED,external buzzer.
◆Timer: 1-220 seconds available to set
◆Dimension:45*20*10mm
◆Gross Weight: 0.06kg

Name	NT-Z5R Mini standalone access controller
Controller type	Standalone
Voltage	12V DC
Card capacity	1364
Types of recordable keys	Normal, Master, Blocking
External readers count	1
External readers protocol	idata (1-Wire) or Wiegand
Operation modes	4 modes (Normal, Blocking, Accept, Trigger)
Access point types	Door
Actuator types	Electronic lock
Timer	0.1~220 seconds available to set

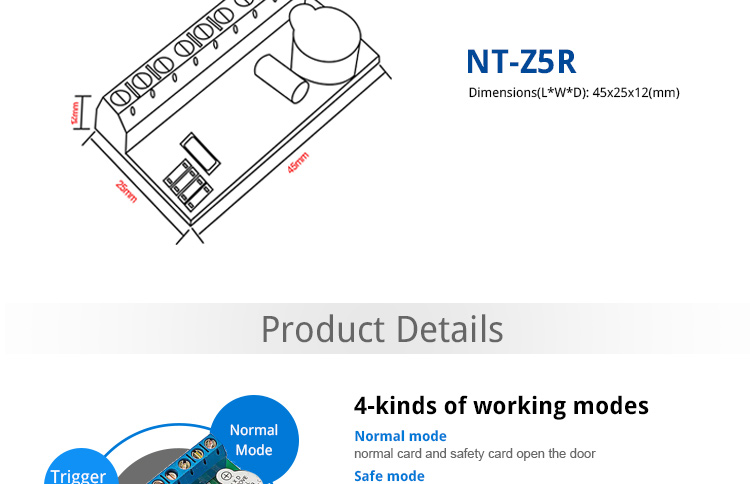

Dimension	45*25*12mm
Gross Weight	0.06kg
