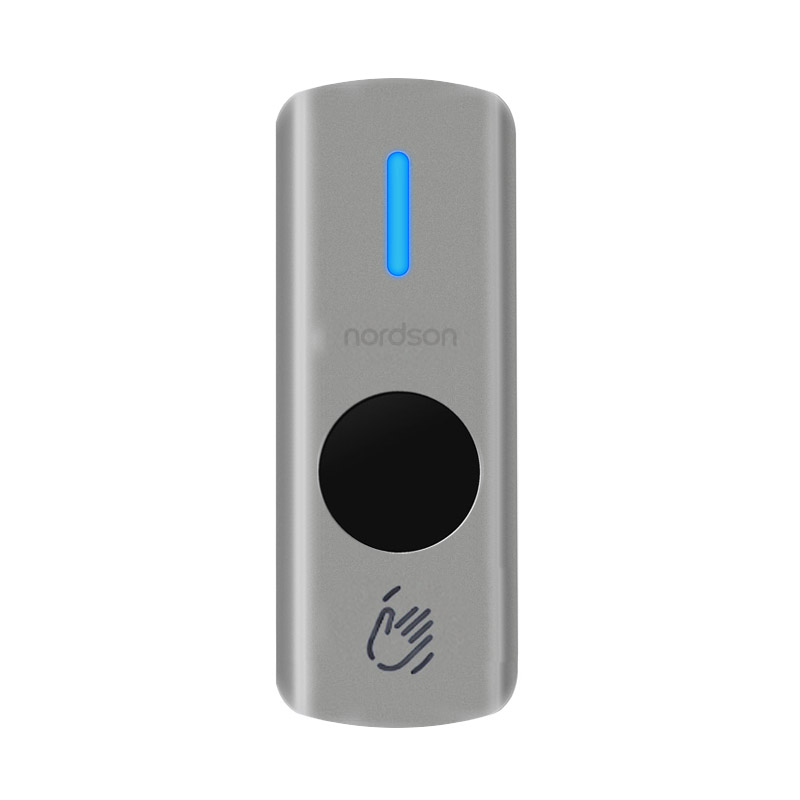

NF-C3 Infrared sensor exit button is an externally rated infrared architrave exit switch. Infrared detection activates the switch with a wave of the hand which is adjustable between 3-15cm, allowing activation without direct contact with the device. This is ideal for sterile environments and general high traffic areas such as hospitals, public buildings etc. It’s a great solution for “No Touch” activation and external environments.

The Infrared Sensor can be connected directly to an access control device to be used as an exit button. The bi-coloured LED indicator provides visual verification to the user.

1.Touchless infrared IR sensor exit button.

2.Adjustable infrared sensor - from 3 to 15cm activation range.

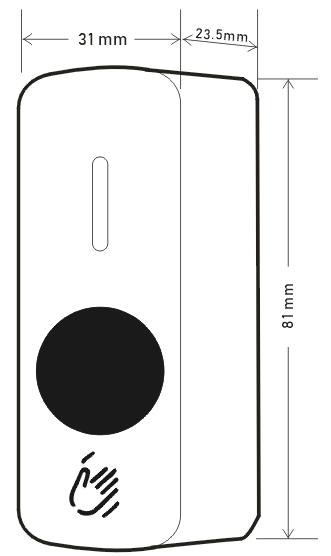

3.Compact, narrow architrave, surface mount design .

4.Two-colour LED status indicator - blue for standby, green for active.

5.Single pole NO/NC/COM.
