Hands Free Door Solution, Following Health and Safety

2020-04-23

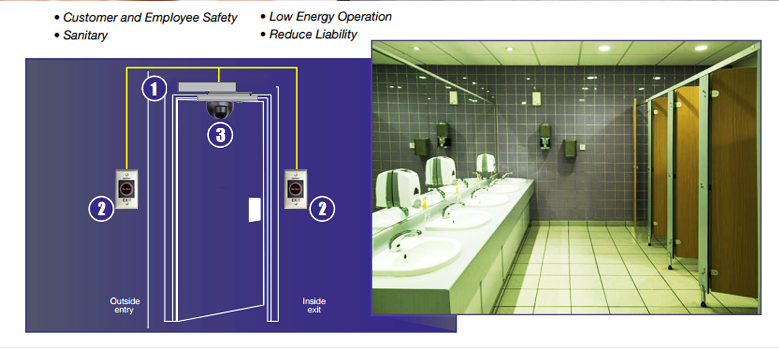

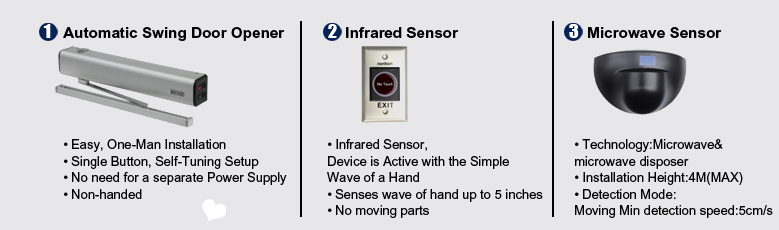

Automatic door opener+ Infrared sensor + Microwave Sensor

With COVID-19 spreads worldwide, public area protection is more significant during epidemic. Considering such case, Nordson launched a Non-touch Public Room Solution: Infrared sensor exit switch +Automatic swing door opener+Microwave sensor.
This system is specially designed for public bathroom, washroom. When people get in or out toilet door, just wave their hands in front of exit switch, then the door will automatically open or close without any touch

As we know, no touch will reduce the risk of virus and bacteria infection for school, hospital, company, factory and supermarket public area. Don’t miss out the intelligent hands free public door open solution. Your safety, we care! Nordson team are still on hand to support you and your business!

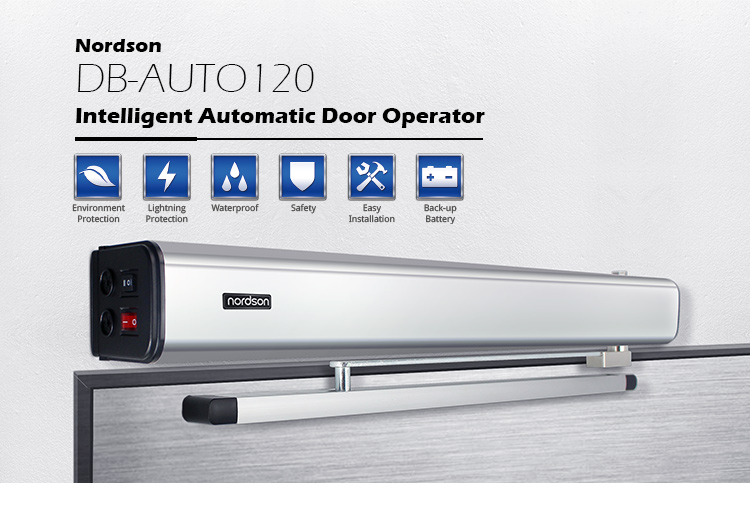

Model	DB-AUTO120 (Automatic Door Operator)
Voltage	AC110V-230V
Motor Power	25W
Opening Angle	0°-115°
Max Weight (Door)	120KG
Max Width(Single)	1.2M
Delay Time (Close)	0s/5s/10s/15s
Remote Function	Wireless Remote Control
Over-Load Protect	with
Auto-Reverse	with
Opening-Reverse	with
Electric-Lock Function	with
Clutch	with
Control Board	Biuld-in Control Board
Access Control KeyPad	Selective
Touch Sensor	Selective
Radar Detector	Selective
Weight	9.5kg

Get More
http://www.chinanordson.com/automatic-swing-door-opener/automatic-door-operator.html

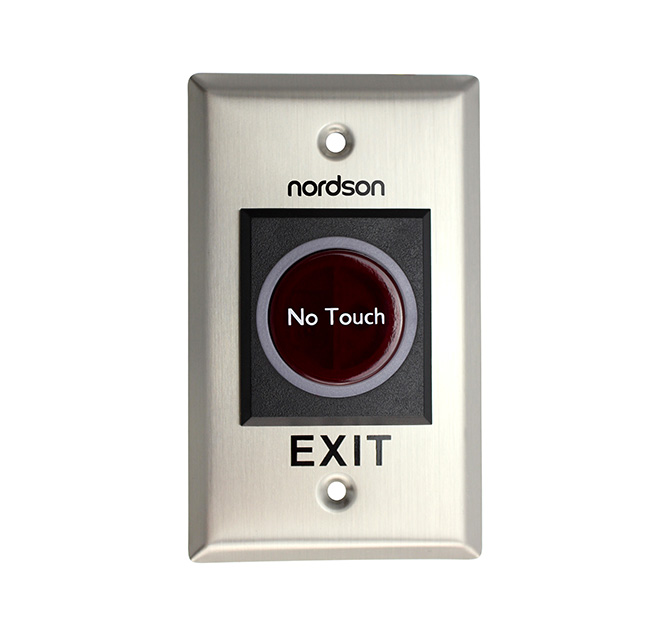

Model	NF-70 Non-Touch Infrared Sensor Switch
Application	Gate/Door/Exit/Automation control High capacity of relay dry contact
Standard Structure	SUS 304 Stainless steel Plate, Infrared Button
Signal Light	Blue LED indicator: Power ON(standby) Red LED indicator: Power ON(sensation)
Input Volt	DC 12V
Current Rating	12-28V,3A
Output Contact	NO,NC,COM
Mechanical Life	1000000 tested
Diffused Detection	No touch / Touch free Exit Sensor
Actuation Control	Optical / Infrared Technology
Waterproof protection	IP-55
Detection range	0.1 ~ 10 cm
Suitable for Door	Hollow Door
Operating temp	-10～+55℃(14-131F)
Operating Humidity	0-95% (non- condensing)
Dimensions	115L70W29H(mm)
Weight	0.085kg

Get More
http://www.chinanordson.com/non-touch-exit-infrared-sensor/non-touch-infrared-sensor-switch.html

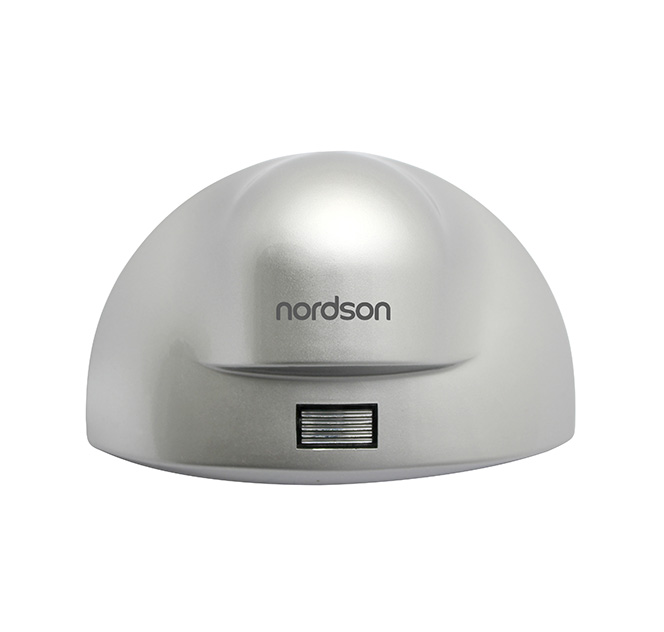

Model	AU-100G Microwave Sensor Switch
Frequency	24.125GHz
Transmitting power	20dBm EIRP Launch
Frequency density	5mW/cm2
Installation Height	4M(MAX)
Installation Angle	0-90 degree(lengthways) -30 to +30(lateral)
Detection Mode	Moving Min detection speed:125px/s
Power	2W(VA)
Detection range	8m*4m(Installation Height 2.2M)
Maximum voltage	42AC-60V DC
Maximum Current	1A
Maximum switching power	30W(DC)/60VA(AC)
Retention time	0.5S
Guide line	2.5M
Working temperature	-20℃~+55℃
Color	Black/silvery
Anti-interference performance	R&TTE 1995/5/EC,EMC 89/366/EEC
Power Voltage	12V to 36V DC
Dimensions	1208050mm
Gross weight	0.45kg

Get More
http://www.chinanordson.com/microwave-sensor-release/microwave-sensor-switch.html
