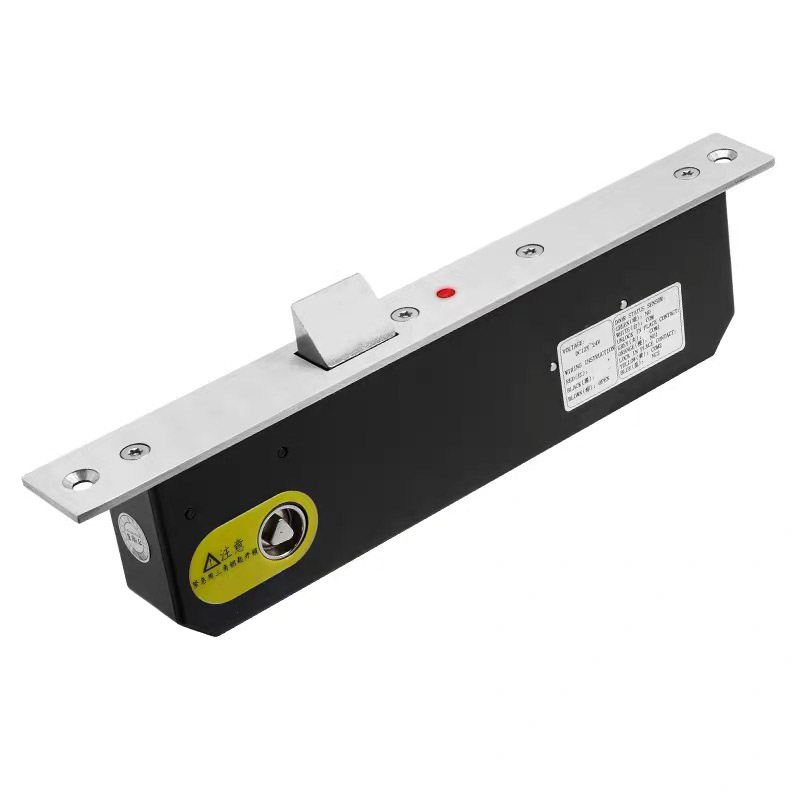

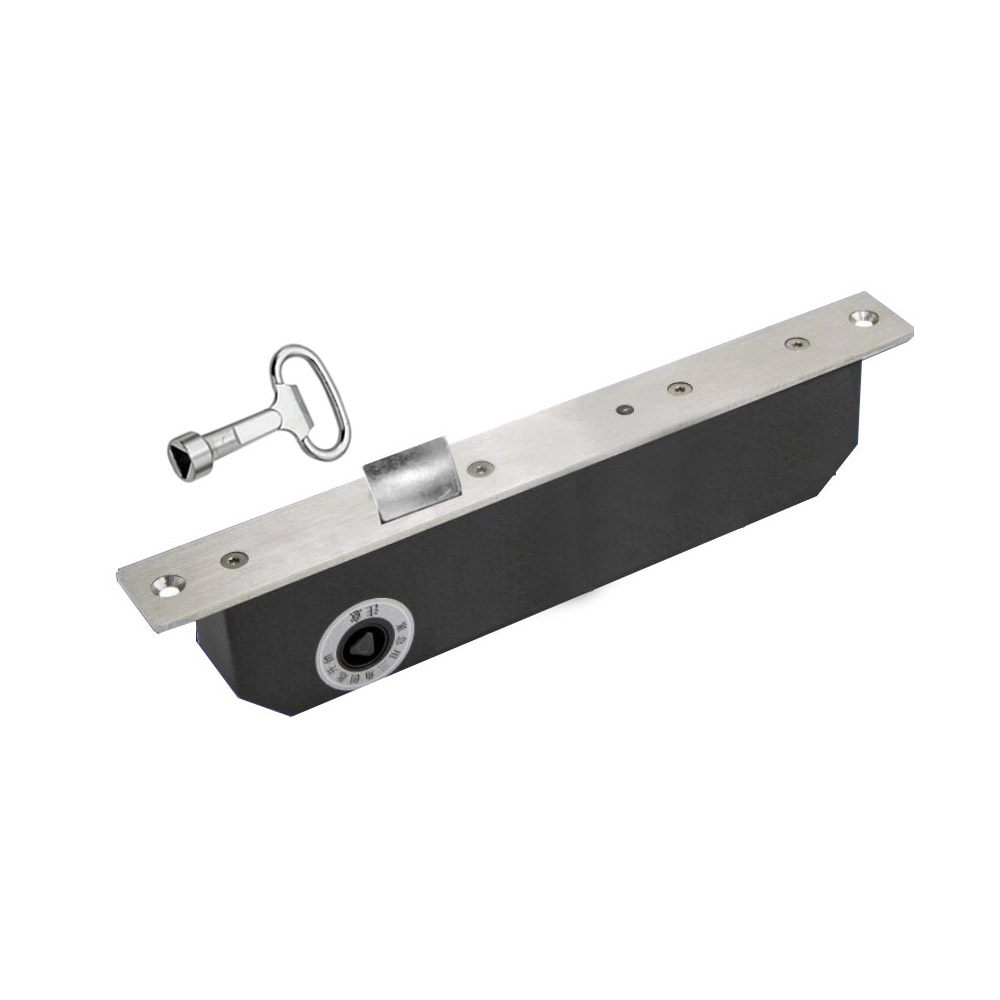

NI-170MD Motor Driven Electric Bolt Lock

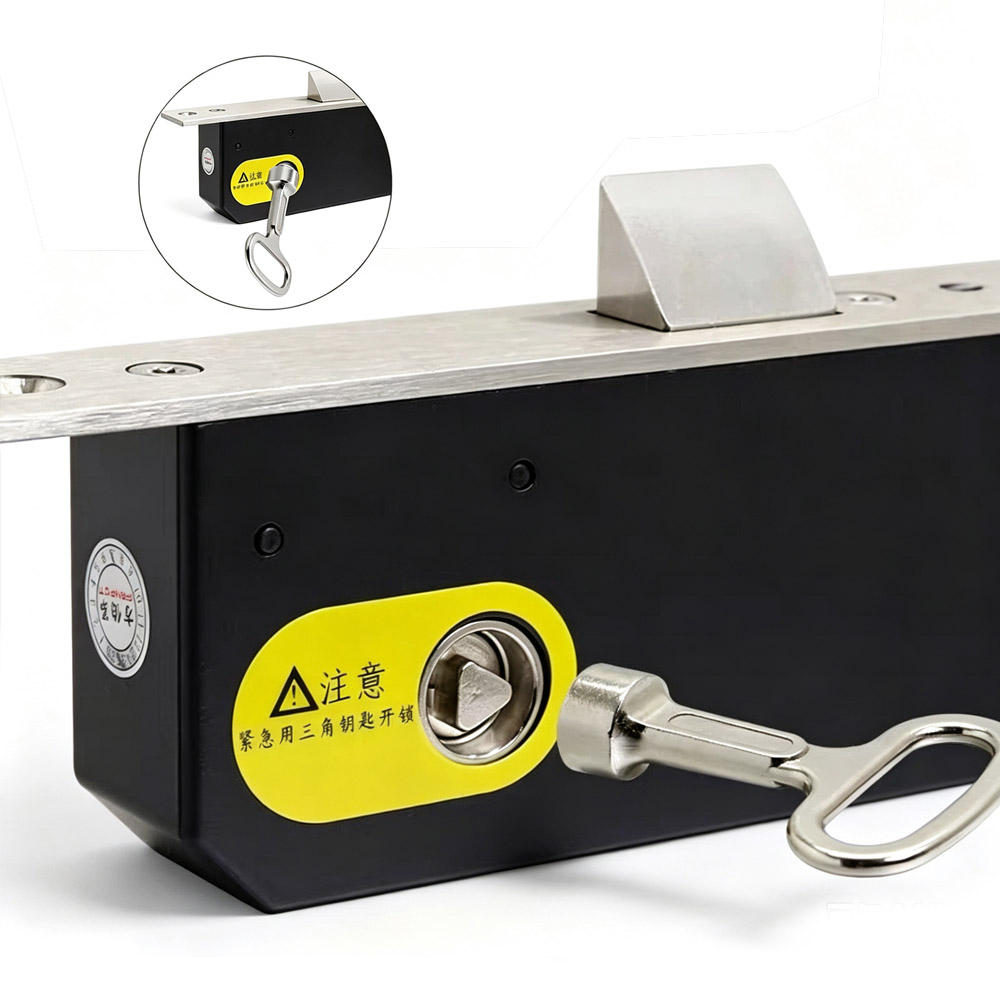

◆Support mechanical triangle key to unlock Special for Elevator Door.

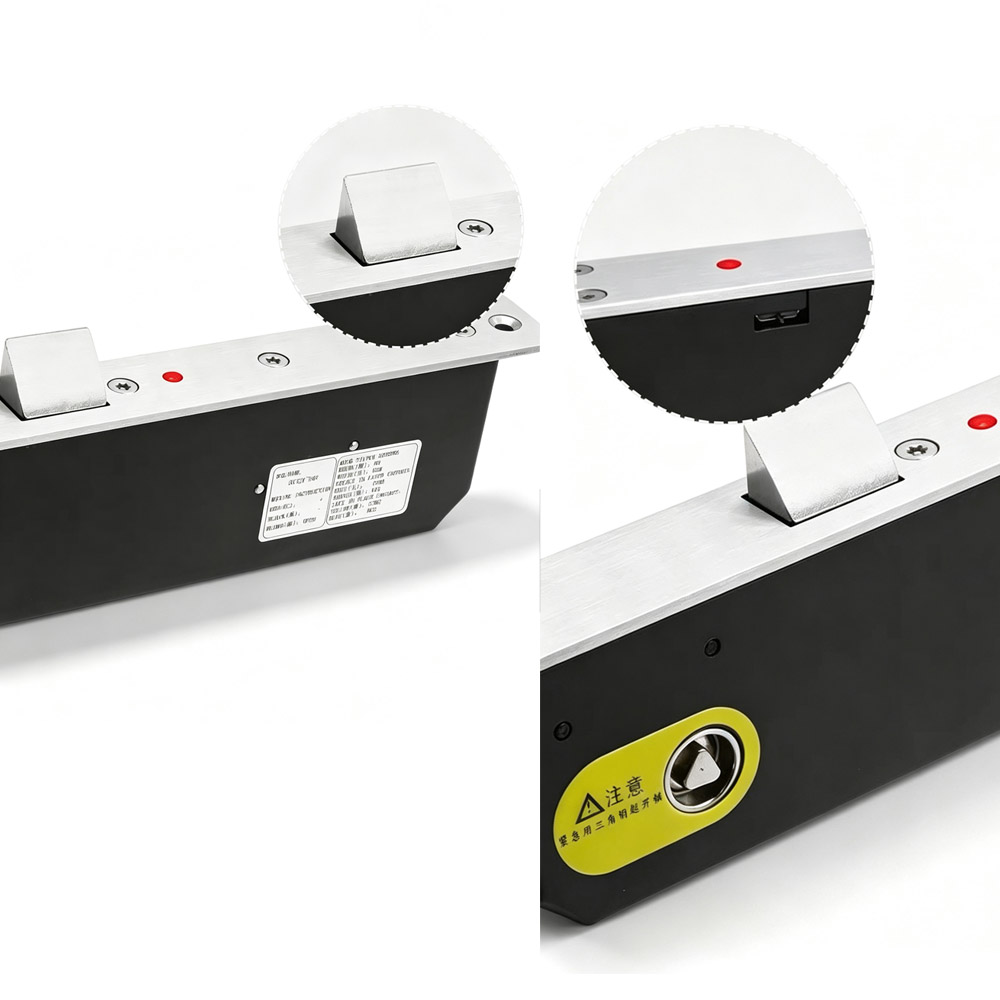

◆Monitored door and lock status
◆Stainless steel drop bolt
◆Free Voltage 12 to 24 VDC
◆Fail Secure(the bolt is locked when the current is off)

The motor-driven silent electric bolt achieves locking and unlocking through the reciprocating motion of the bolt, which is precisely actuated by a built-in stepper motor. The stepper motor delivers substantial output torque, generating sufficient thrust to properly align the bolt with the door and complete reliable locking even when the door is deformed or misaligned. All structural components are constructed from metal materials, and the plug-in and reset mechanical structure has undergone dedicated noise-reduction treatment. Two Hall-effect sensors integrated on the PCB accurately position and control the bolt’s extension and retraction, enabling fully silent locking and unlocking operations. Unlike traditional electric bolts that rely on a solenoid valve structure, this product does not require continuous power supply to the motor once it enters the locked or unlocked state, delivering excellent low energy consumption and eco-friendly performance.
◆Support mechanical triangle key to unlock Special for Elevator Door.
◆Monitored door and lock status
◆Stainless steel drop bolt
◆Free Voltage 12 to 24 VDC
◆Time Delay:0/3/6/9 Sec ( Adjustable)
◆Fail Secure(the bolt is locked when the current is off)

Model	NI-170MD
Version	Fail Secure(the bolt is locked when the current is off)
Holding Force	1200kg(2500Lbs)
Lock Status Sensors	Relay Contact NO,COM
Door Status Sensors	Dry Contact NO,COM
Push Button Contact	Door Open Push Button Input Contact
Rated Operating Voltage	Free Voltage 12 to 24 VDC
Current consumption	Start 12V/500mA;Standby 12V/20mA
Time Delay	0/3/6/9 Sec ( Adjustable)
Rated operating life/cycle test	100W
Optional Functions	Buzzer
Face Place Material	Stainless Steel
Lock Shell	High Aluminum
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C
Suitable for	Elevator Door & Metal door & Wooden & Aluminum & Fireproof

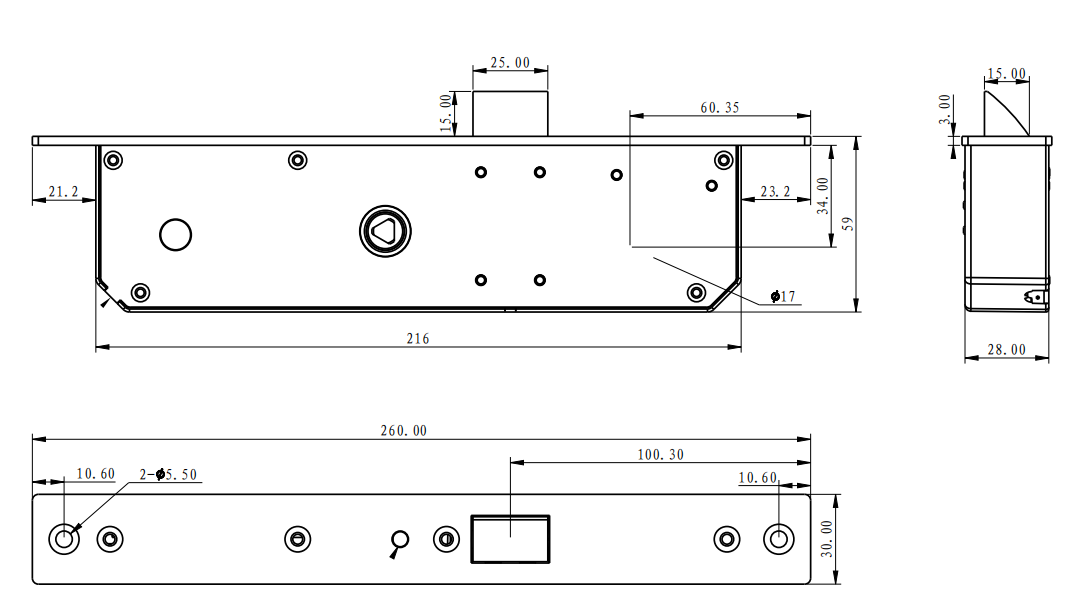

Lock Body Dimensions(L x W x D)	260L30W59H(mm)
Strike Plate Dimensions(L x W x D)	90L25W3D(mm)
Bolt	25L15W15D(mm)
Weight in kg	1.0kg
CE-mark for building	YES
Rohs-mark for building	YES
