The motor-driven silent electric bolt achieves locking and unlocking through the reciprocating motion of the bolt, which is precisely actuated by a built-in stepper motor. The stepper motor delivers substantial output torque, generating sufficient thrust to properly align the bolt with the door and complete reliable locking even when the door is deformed or misaligned. All structural components are constructed from metal materials, and the plug-in and reset mechanical structure has undergone dedicated noise-reduction treatment. Two Hall-effect sensors integrated on the PCB accurately position and control the bolt’s extension and retraction, enabling fully silent locking and unlocking operations. Unlike traditional electric bolts that rely on a solenoid valve structure, this product does not require continuous power supply to the motor once it enters the locked or unlocked state, delivering excellent low energy consumption and eco-friendly performance.
Home >
Products >
Electric Locking Devices >
Motor Driven Electric Bolt >
NI-160MD Motor Driven Electric Bolt Lock Home >
Products >
Electric Locking Devices >
Motor Driven Electric Bolt >
NI-160MD Motor Driven Electric Bolt Lock
NI-160MD Motor Driven Electric Bolt Lock

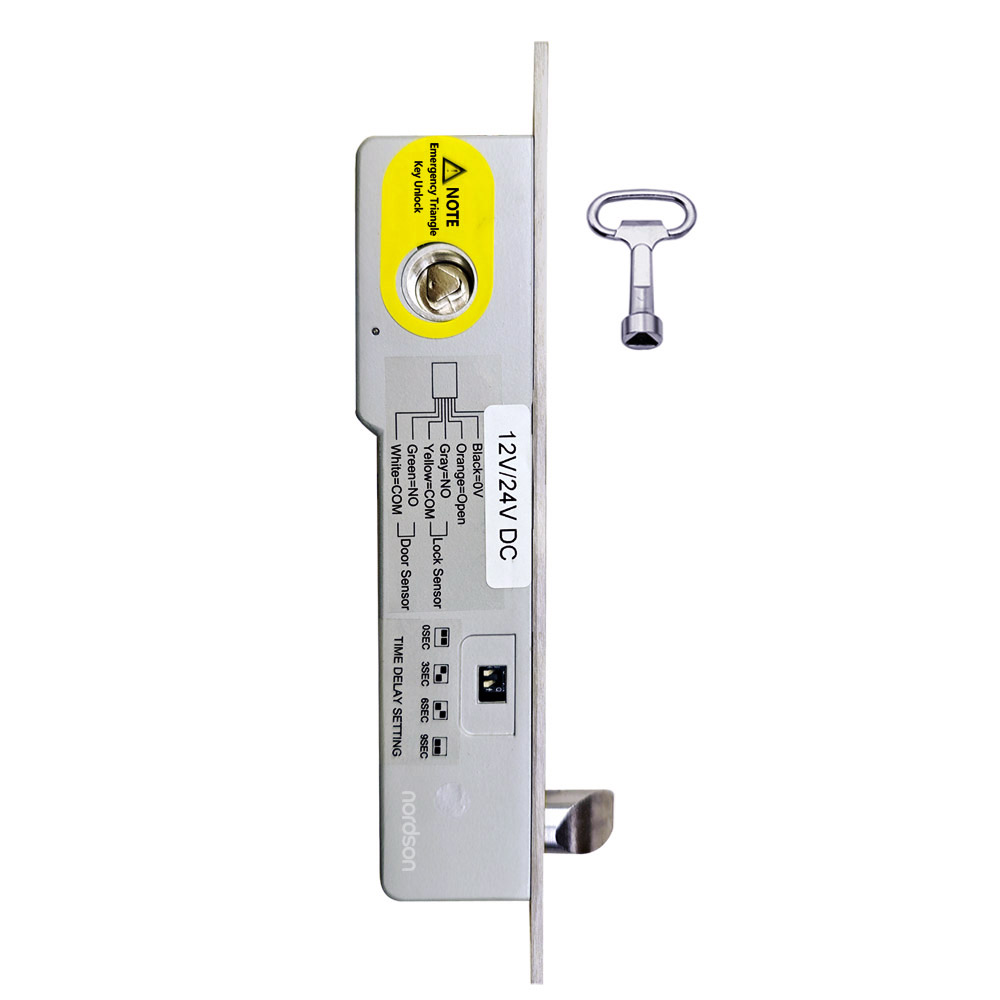

◆Support mechanical triangle key to unlock Special for Elevator Door.
◆Monitored door and lock status
◆Stainless steel drop bolt
◆Free Voltage 12 to 24 VDC
◆Fail Secure(the bolt is locked when the current is off)
◆Monitored door and lock status
◆Stainless steel drop bolt
◆Free Voltage 12 to 24 VDC
◆Fail Secure(the bolt is locked when the current is off)
