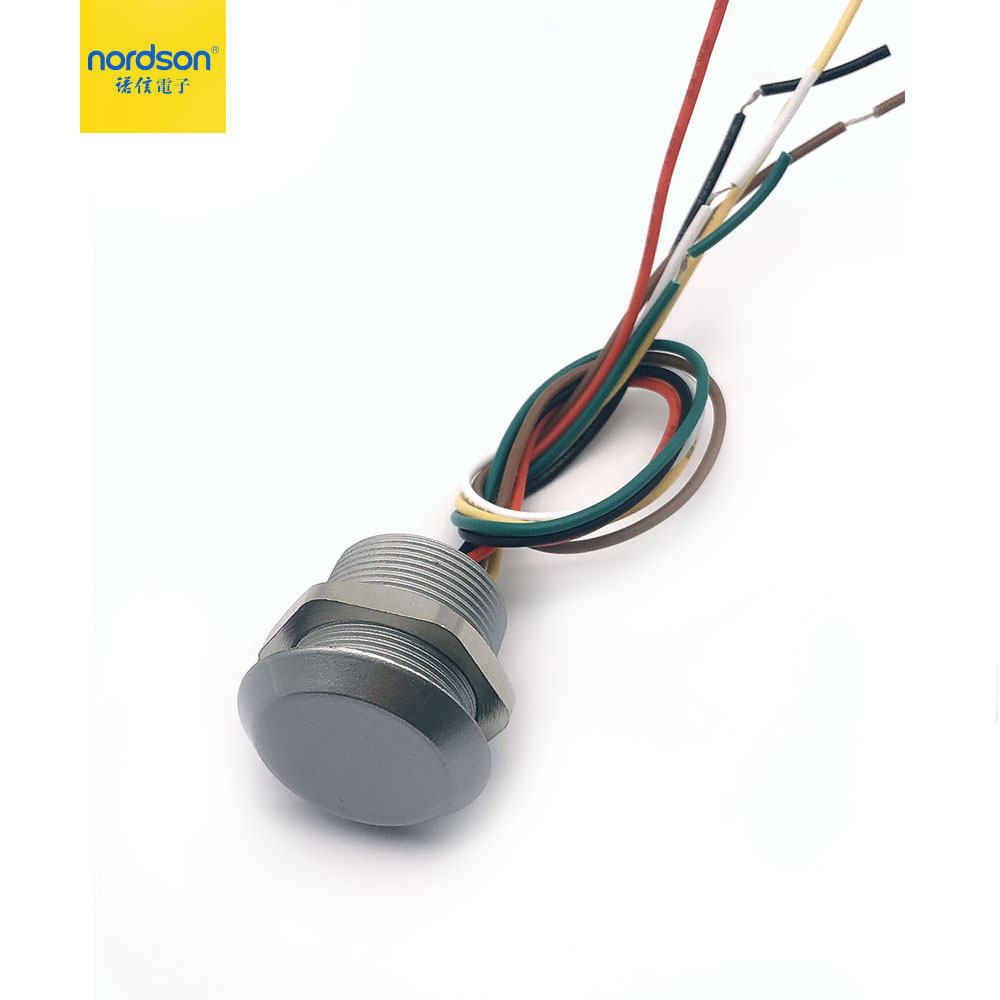

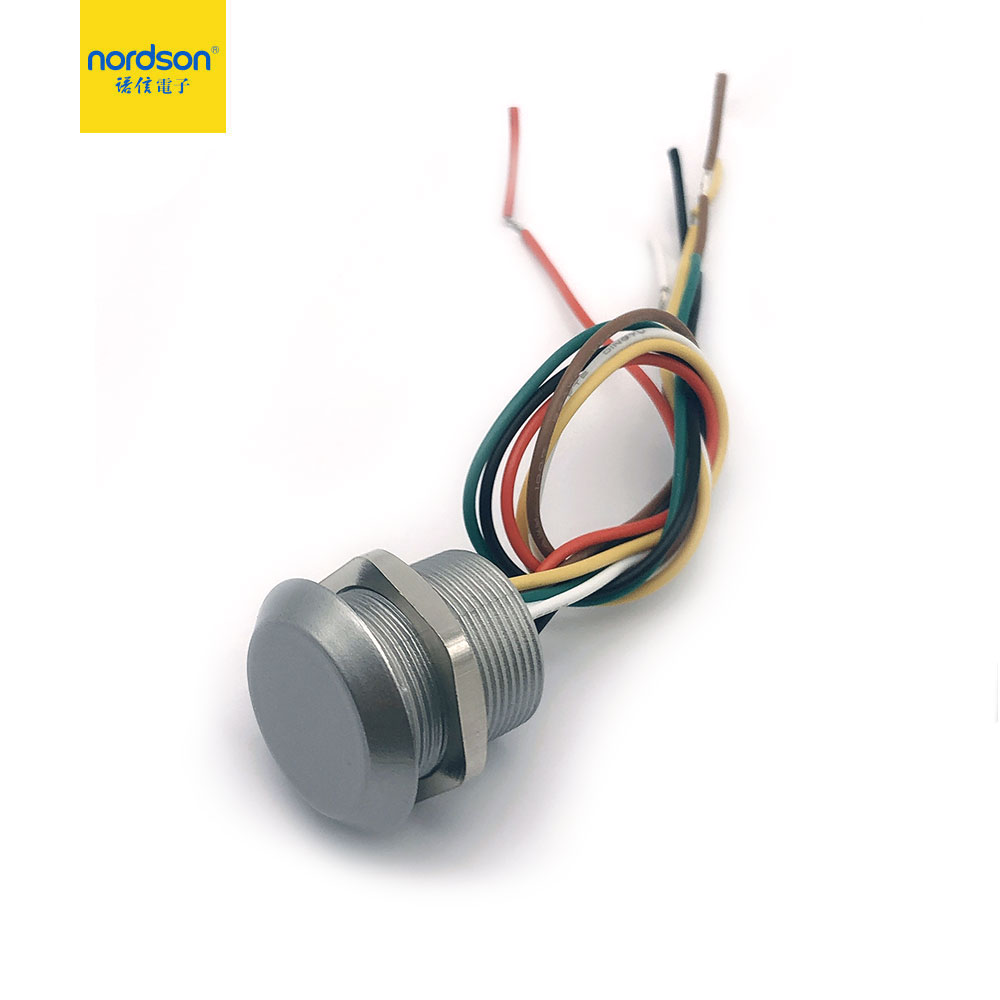

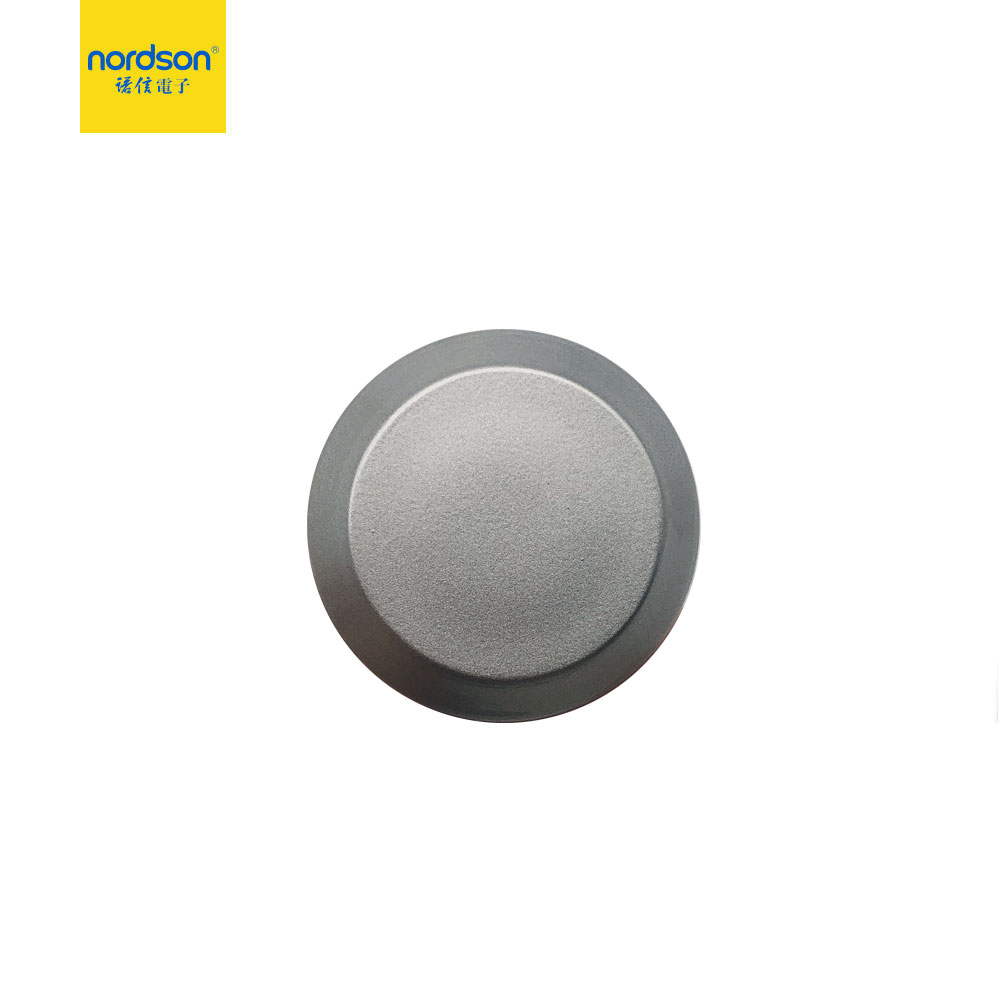

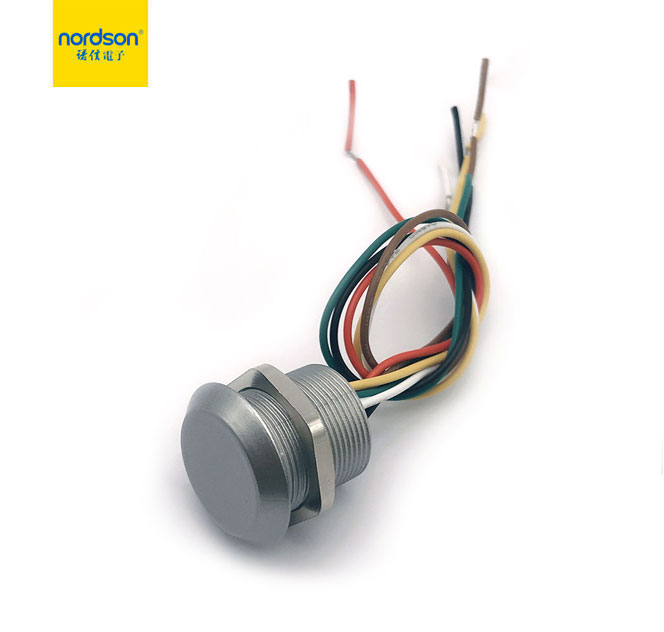

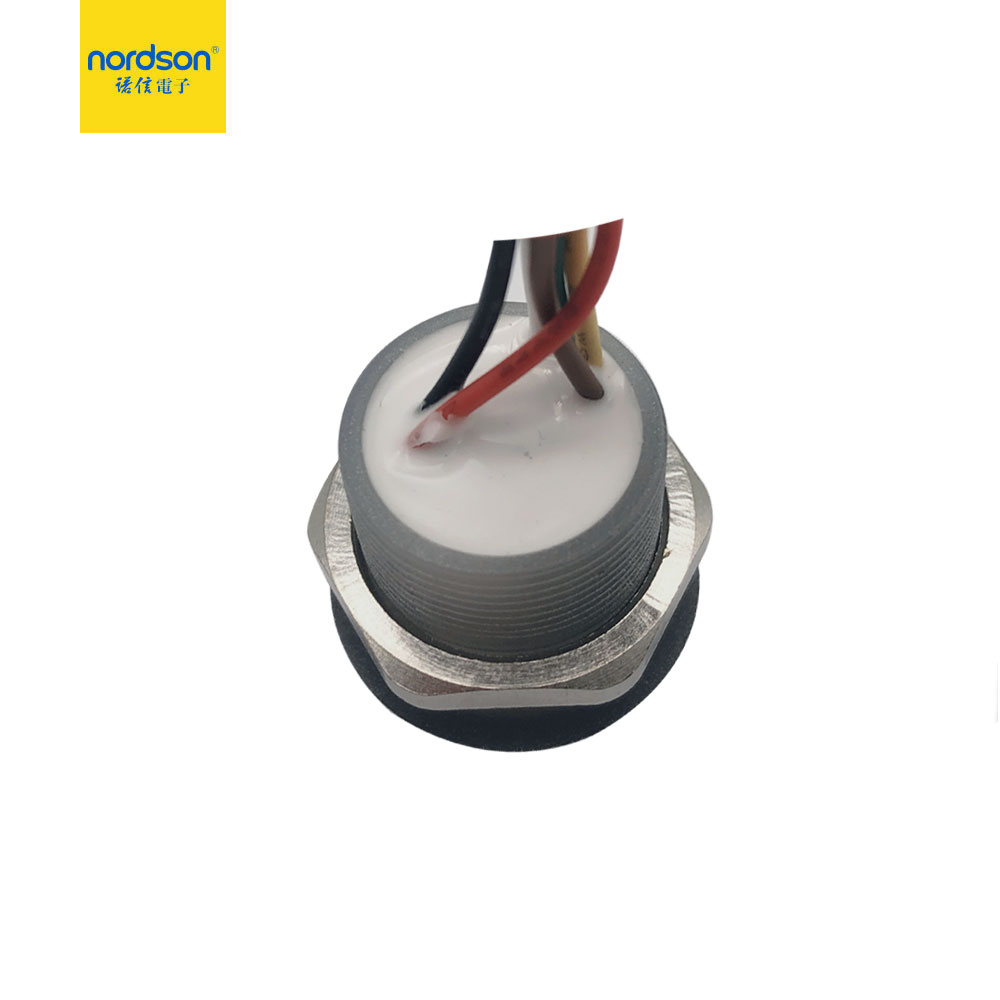

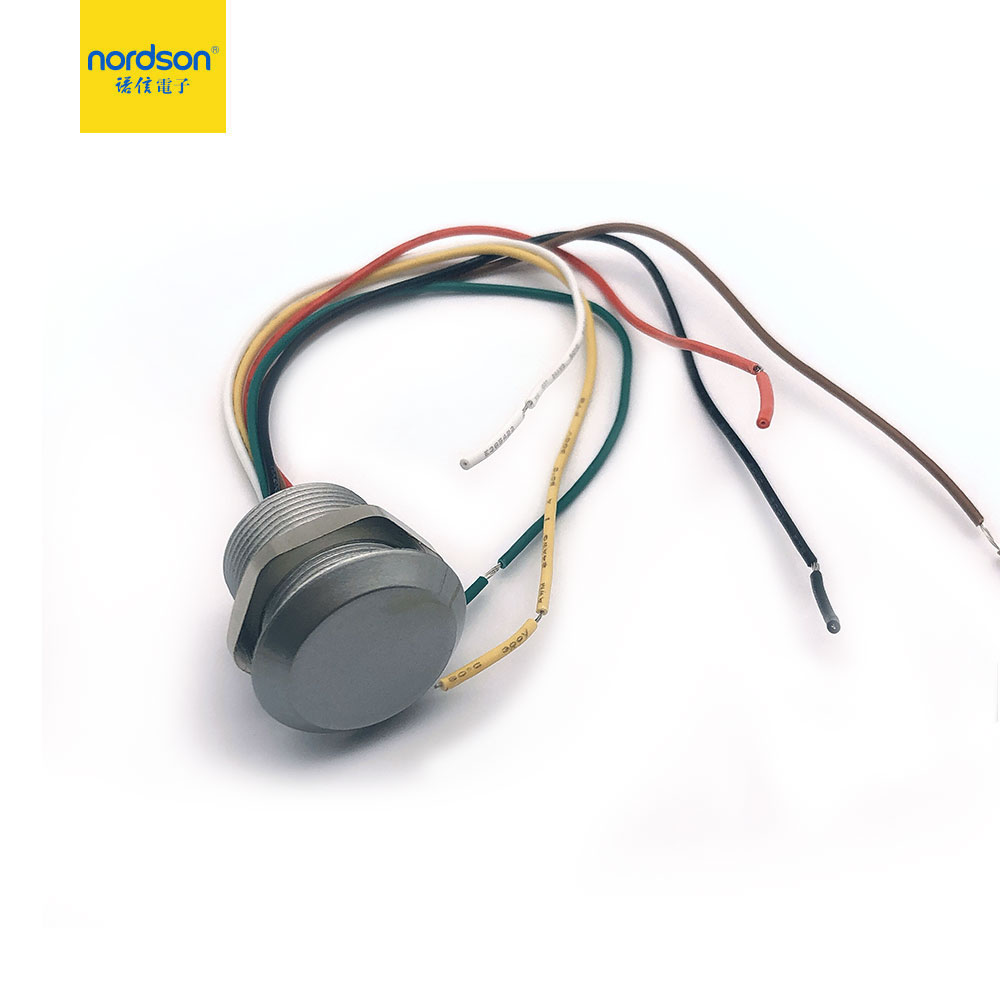

NK-Z2L-EM-Plus&NK-Z2L-MF-Plus embedded RFID reader is one of the smallest RFID card reader, it has IP68 waterproof performance and compatible with Wiegand26/34 communication. NK-Z2L-EM-Plus uses EM、ID card, NK-Z2L-MF-Plus uses Mifare、IC card. LED light will flash when users swip card. It occupy smaller space than common card reader, making the best use of space with elegant appearance. MINI rfid card reader suit for narrow frame door, video doorphone system and access control system. Embedded installation possess the function of tamper device, keep door access control safe. Embedded RFID reader is also called access control card reader, smart card reader, RFID/IC card reader, wiegand card reader.

1.Smallest rfid card reader, easy installation with complete functions.
2.Posses IP68 waterproof performance, can be used outdoor safely.
3.Compatible with Wiegand 26/34, can connect access control system and video doorphone system.
4.Two color LED visual indication. simple and intuitive operation.



Model	NK-Z2L-MF-Plus
Card Type	Mifare-IC
Waterproof	IP68
Voltage	DC8~18V
Current	≤100mA
Ambient Temperature	-30℃～50℃
Reading Range	1~3.5CM
Output Format	Wiegand-26/34
Visual indication	Two color LED(Red/Green)
Material	Poliamd (High temperature resistant, fire prevention)

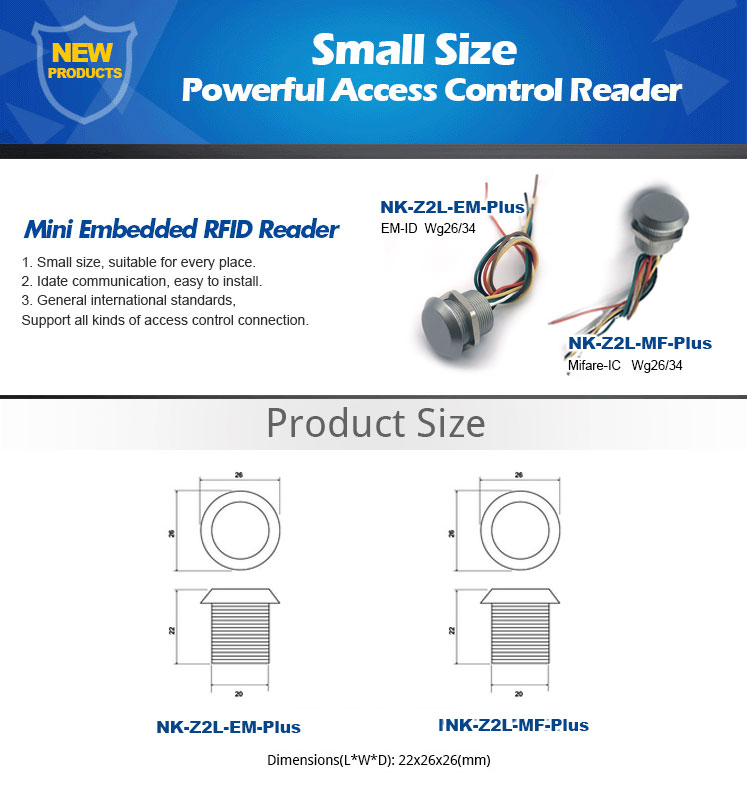

Dimensions	D26 x 22mm
Spiral Diameter(mm)	D20mm
Weight	0.02kg
Color	Silver

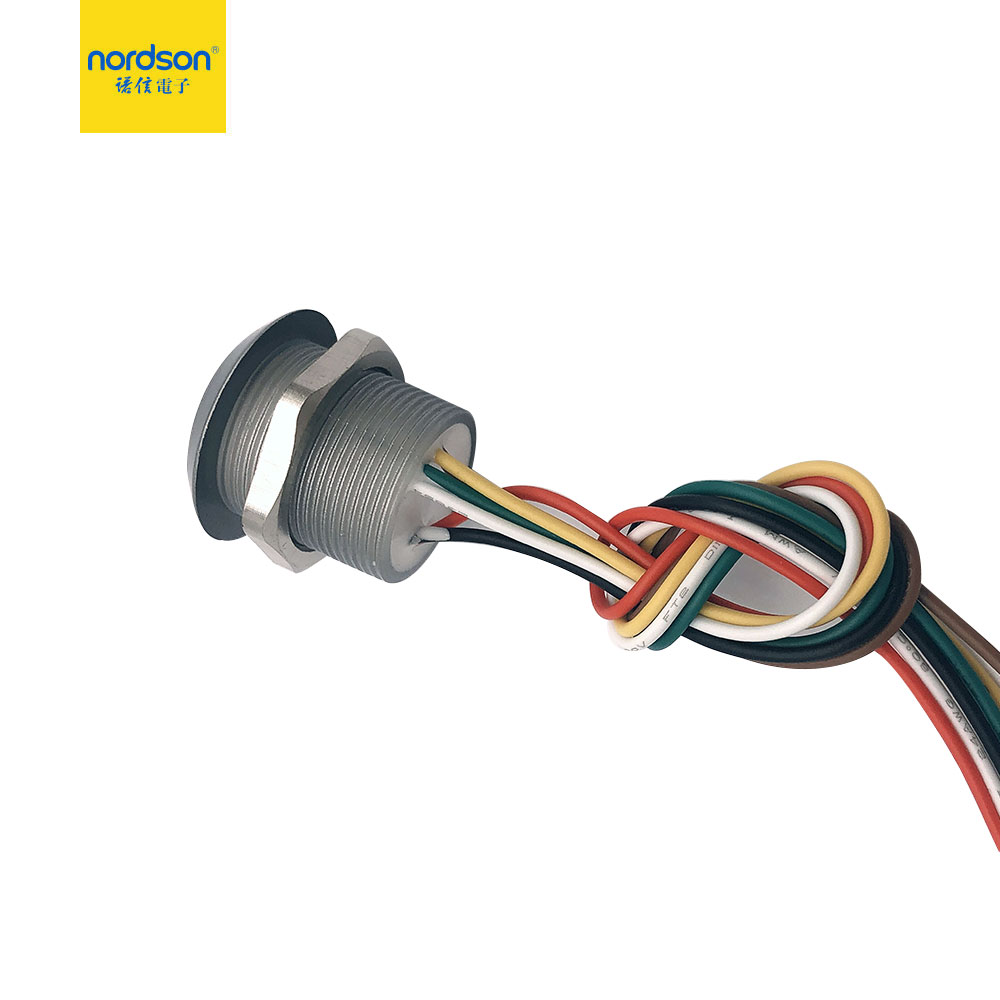

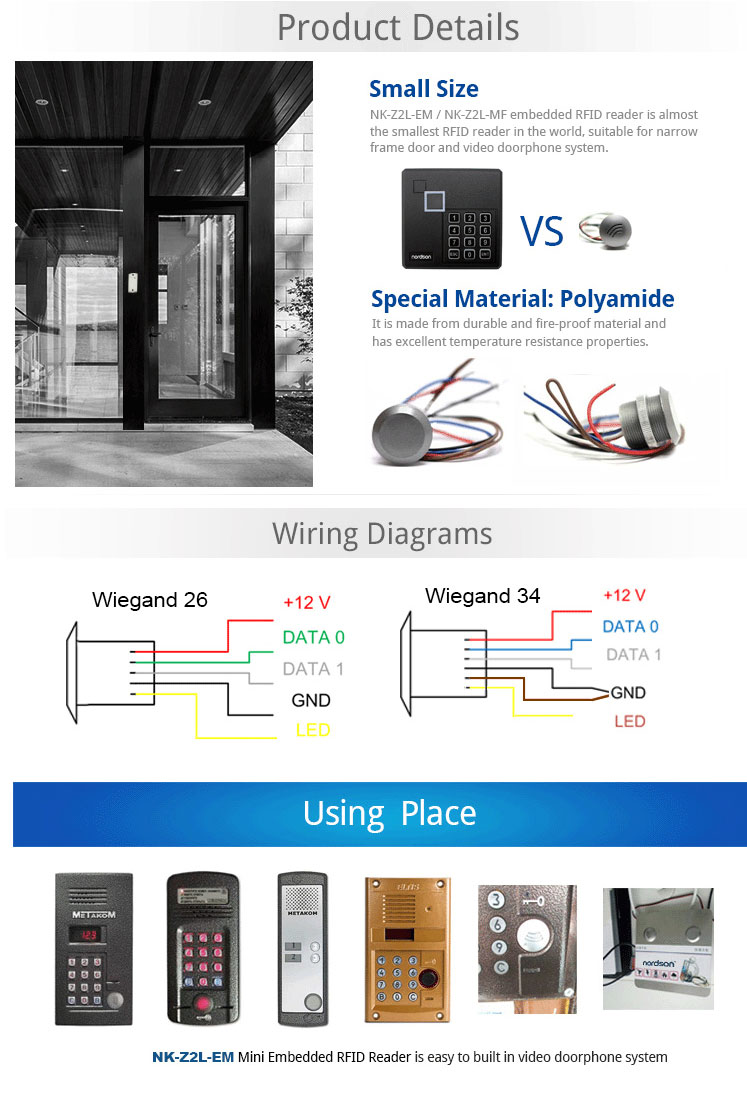

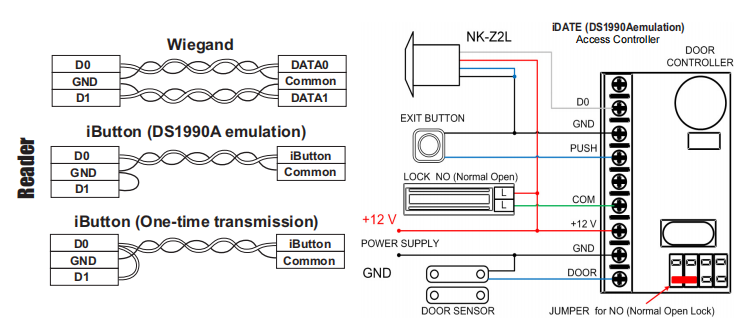

Wiring	Black-GND,White-D1,Green-D0,Yellow-LED,Brown-WG26/34
