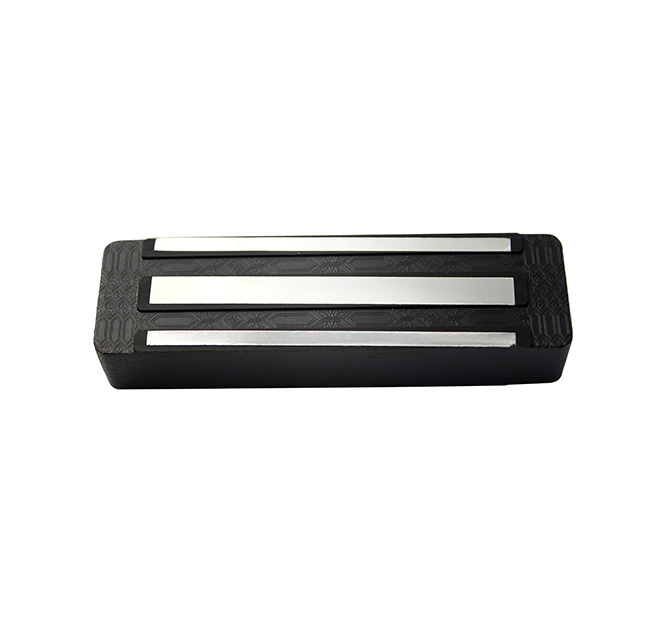

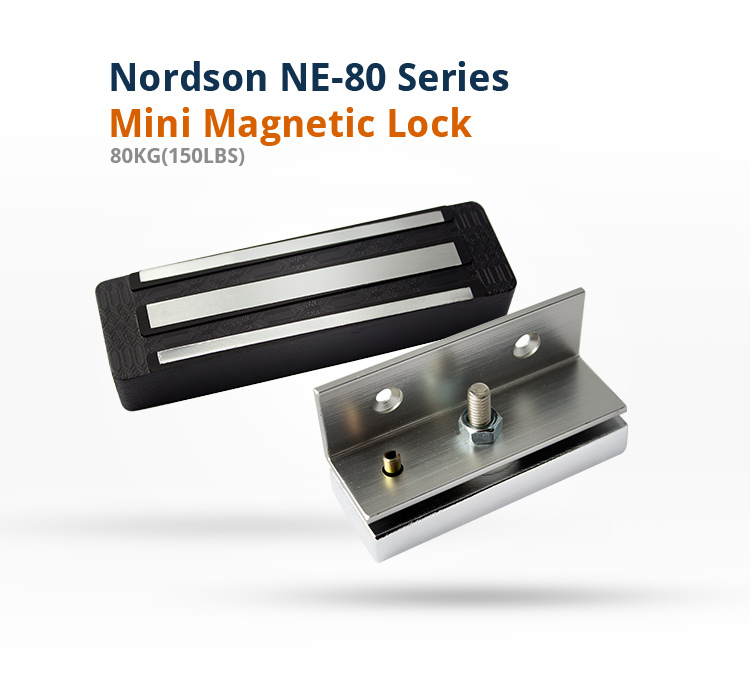

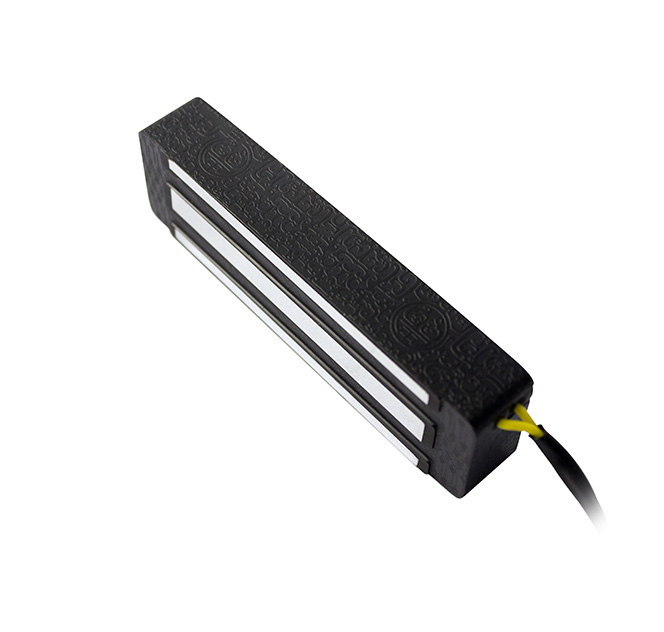

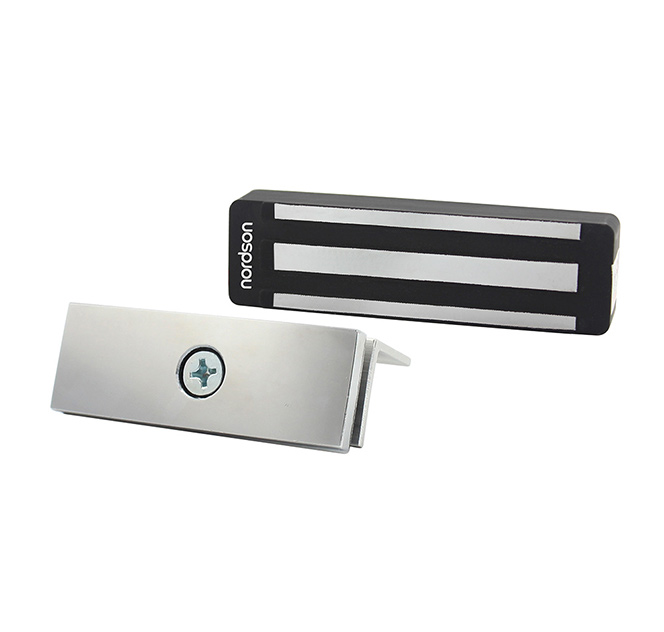

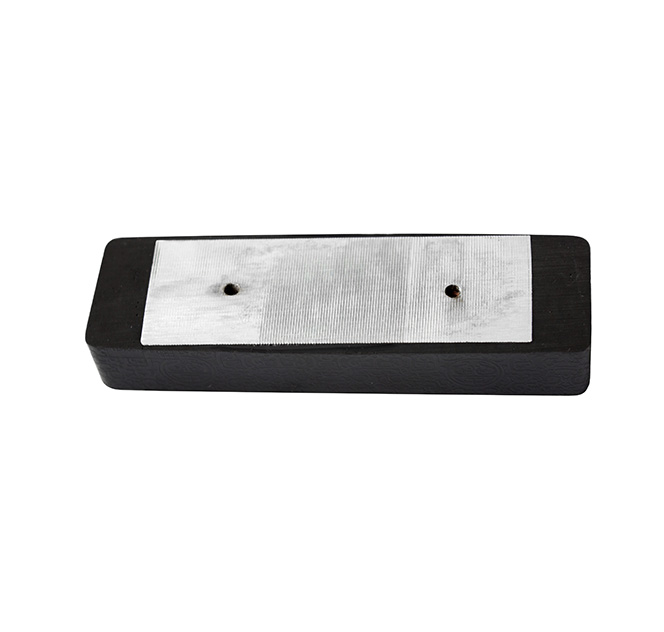

NE-80N Ultra-thin Mini Magnetic Lock

Fail-safe: Power to lock

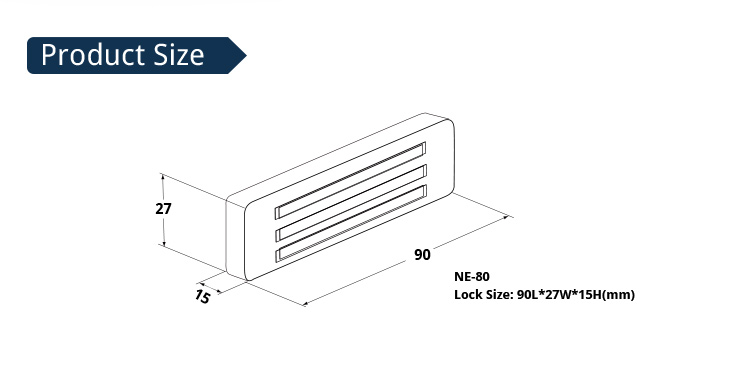

Lock Size: 90L*27W*15H(mm)

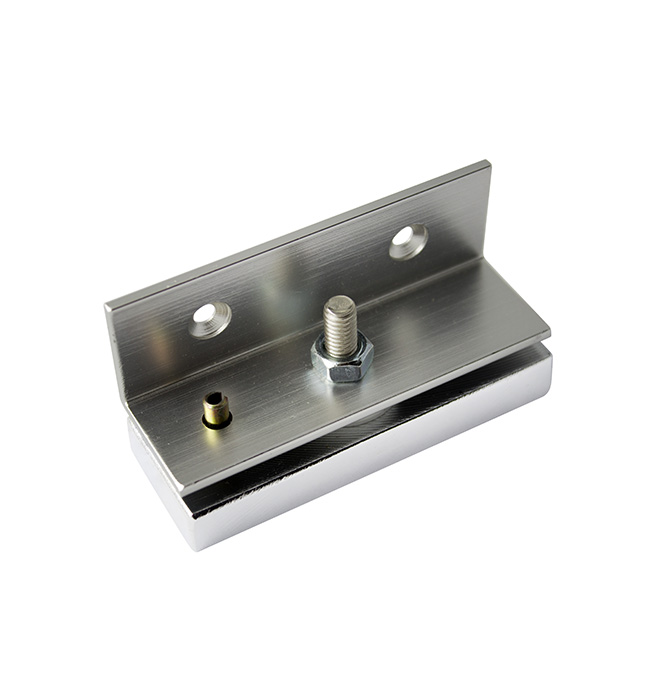

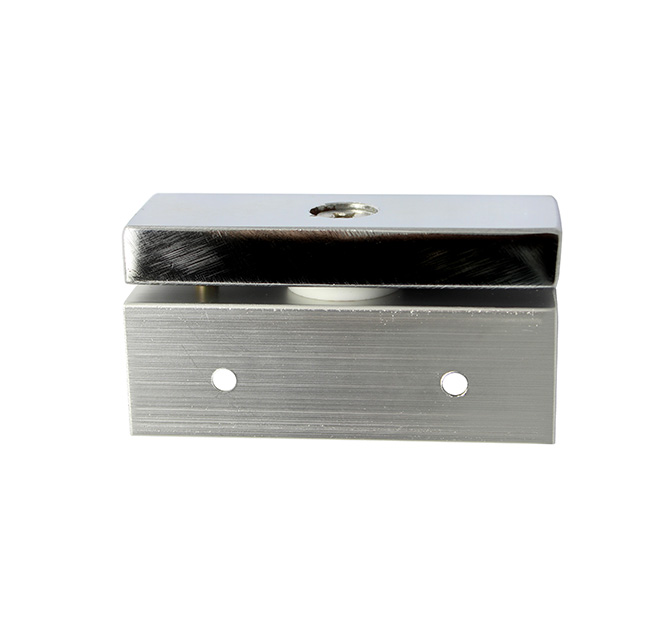

Armature Plate: 75L*27W*10H(mm)
Holding Force: 80kg(150Lbs)
Voltage: 12VDC
Current Draw: 12V/150mA
Suitable for: File Cabinet ,Disply Cabinet
Weight: 0.8kg

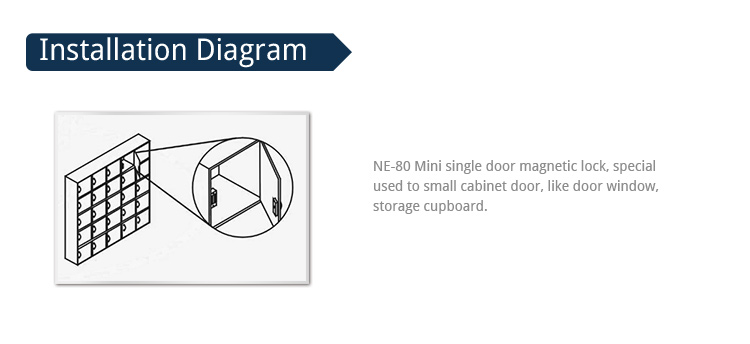

NE-80N Ultra-thin single door mini magnetic lock with bracket,special used to small cabinet door,like door window,storage cupboard.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
1.Passed 150lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constant tension.
3.Built-in reverse current protection device (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.

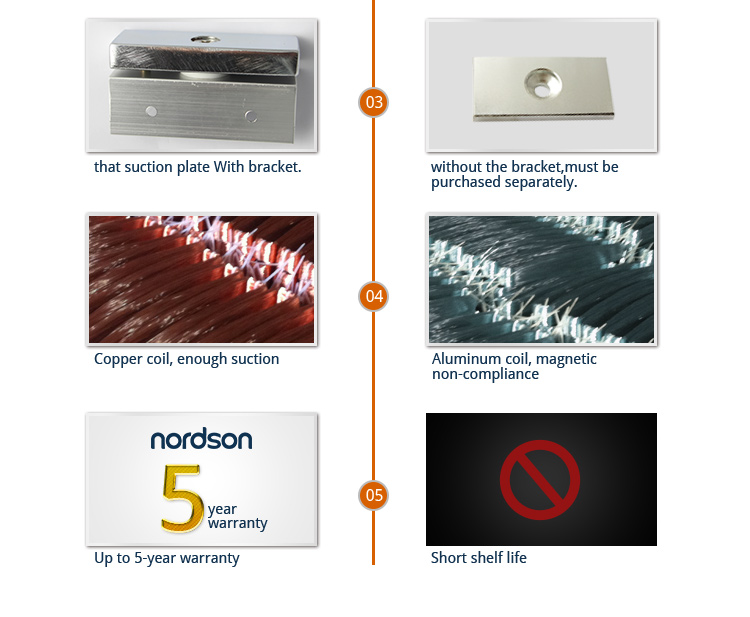

5.Electromagnetic suction work completely, there is no mechanical failure.
6.Shell with high strength alloy material, anode hardening treatment.
7.lock body with double insulation treatment.
8.Through the European CE and ROHS, MA certification in China.

Holding Force	80kg(150Lbs)
Rated Operating Voltage	12V DC
Current consumption	12V/220mA
Optional Functions	Lock Status Sensors,Relock Delay Timer,Buzzer
Surface finish for magnet	Zinc plated
Surface finish for armature plate	Zinc plated
Ambient temperature in °C	-10～+55℃(14-131F)
Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)	90Lx25Wx15H(mm)
Armature Plate Dimensions(L x W x D)	70Lx27Wx10H(mm)
Weight in kg	0.8kg
CE-mark for building	Yes
Rohs-mark for building	Yes
