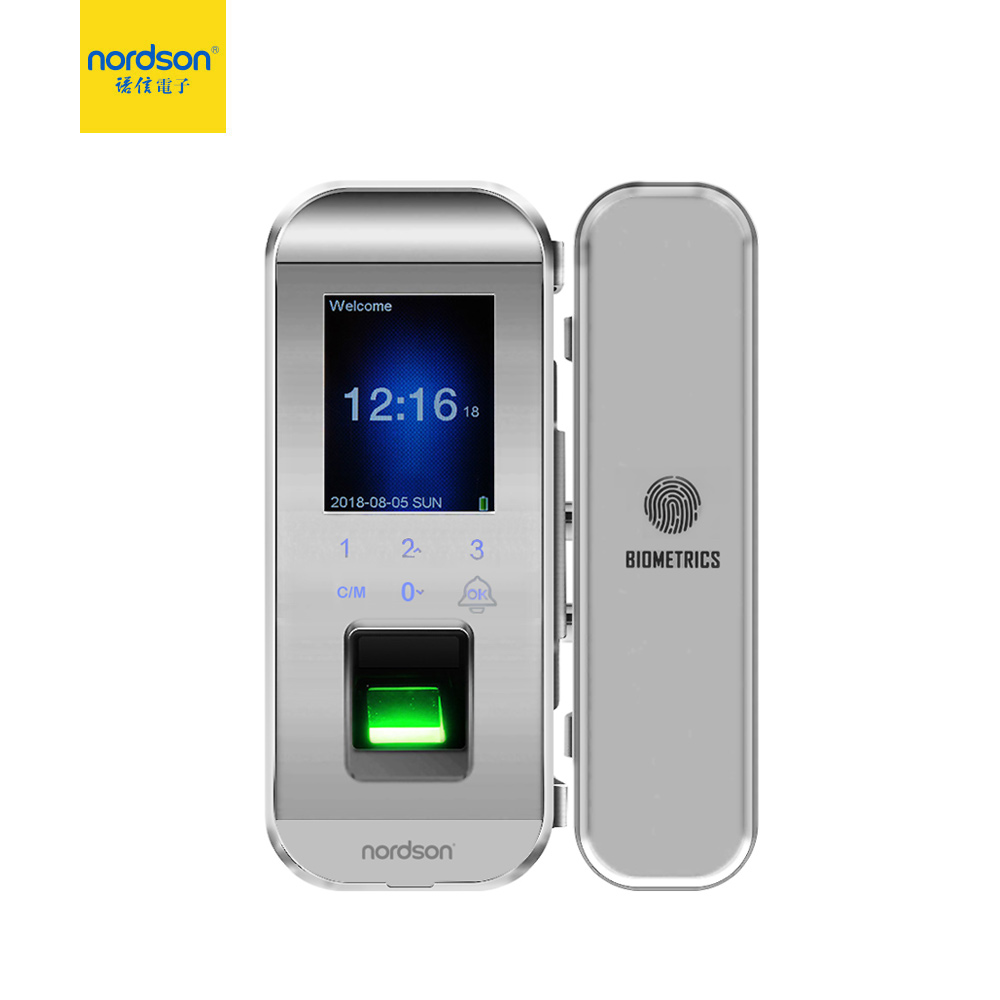

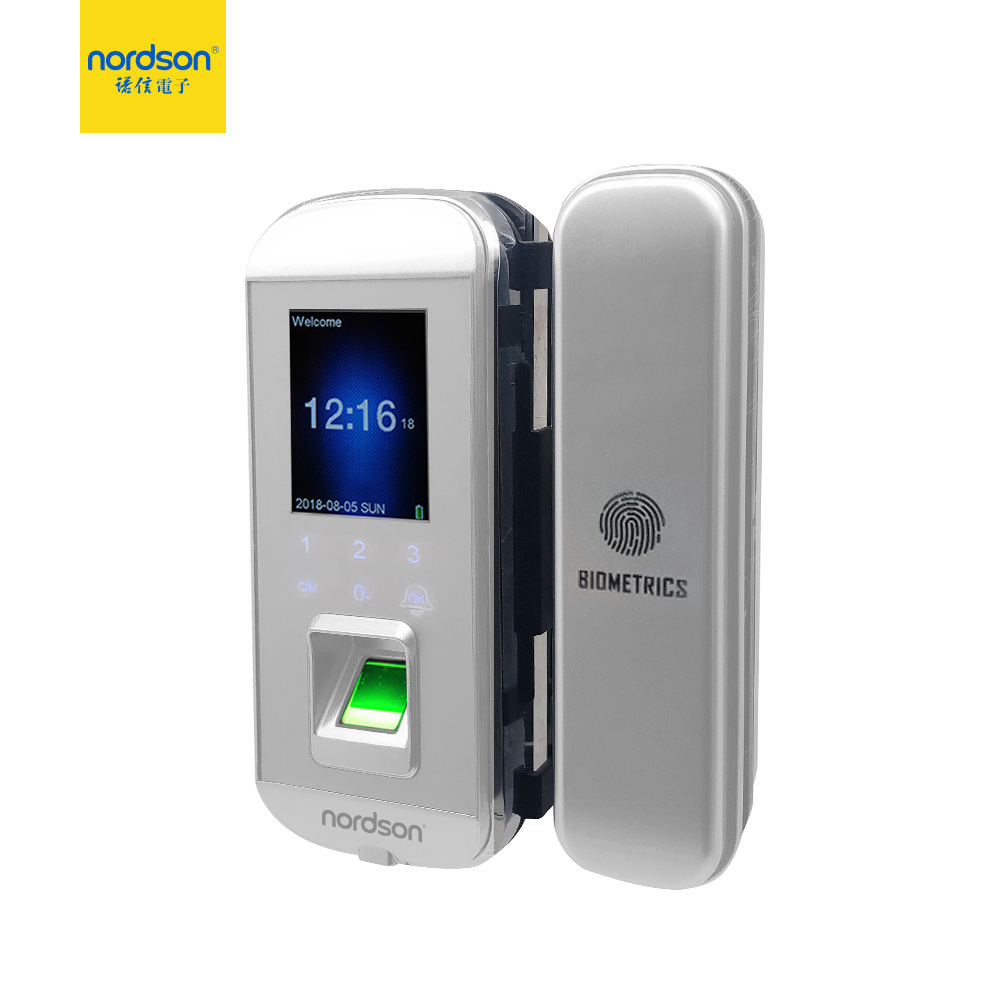

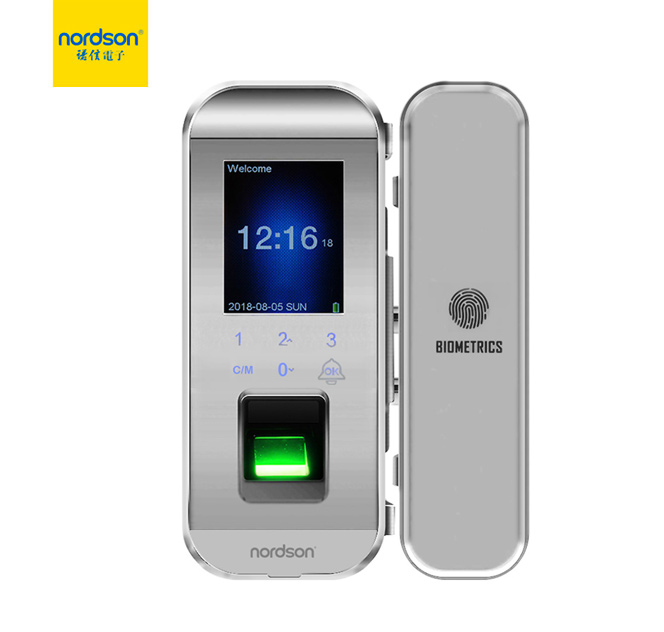

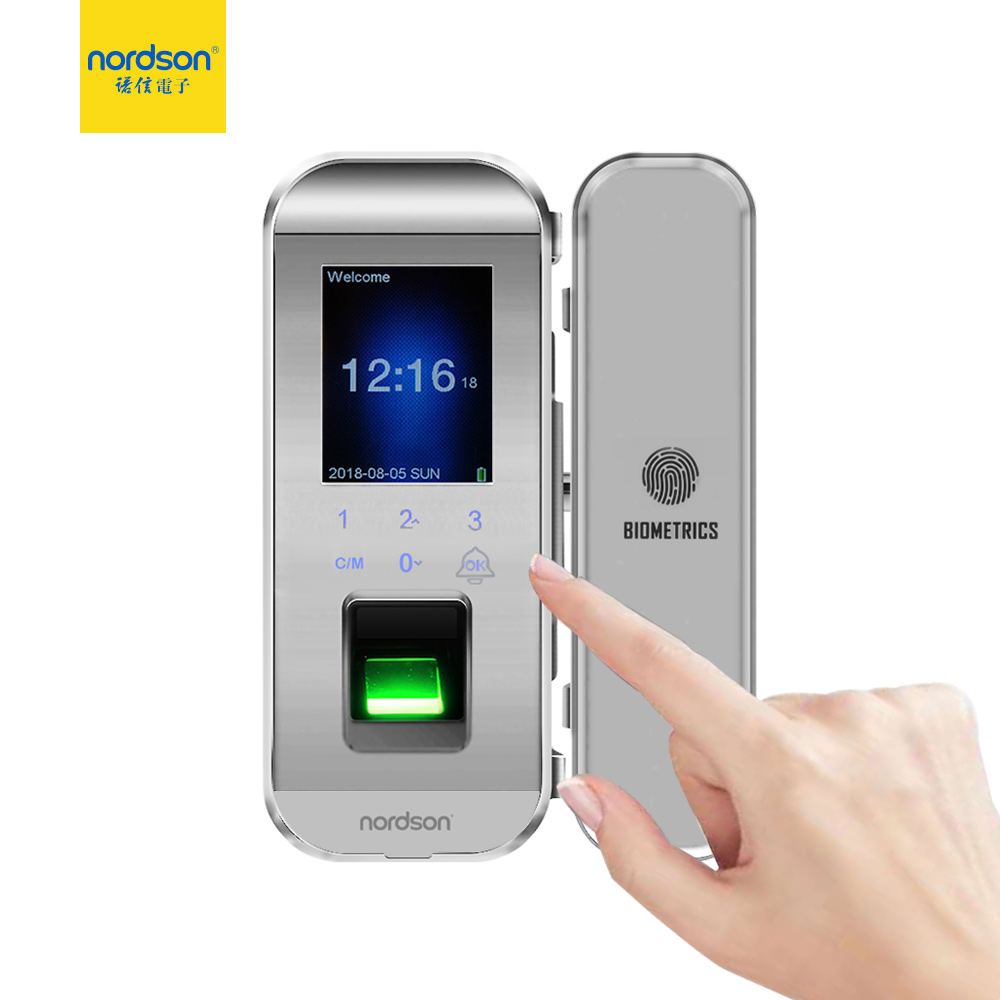

IGLASS II is a revolutionary product of glass door locks. The new design has a 2.4-inch true color large screen, which is intuitive and simple to operate, free of wiring and punching. Support 3 standard opening methods, fingerprint, password, card. With the U disk function, you can export the EXCEL attendance report. This product can be widely used in office frameless double-open glass doors, single-open frameless glass doors and framed doors (optional different accessories)

HD non-membrane fingerprintcollector for quick identification.

360°high speed recognition.

Smart chip with embeddedfingerprint module and 32-bit processor.

3 standard opening methods tomake using it more convenient.

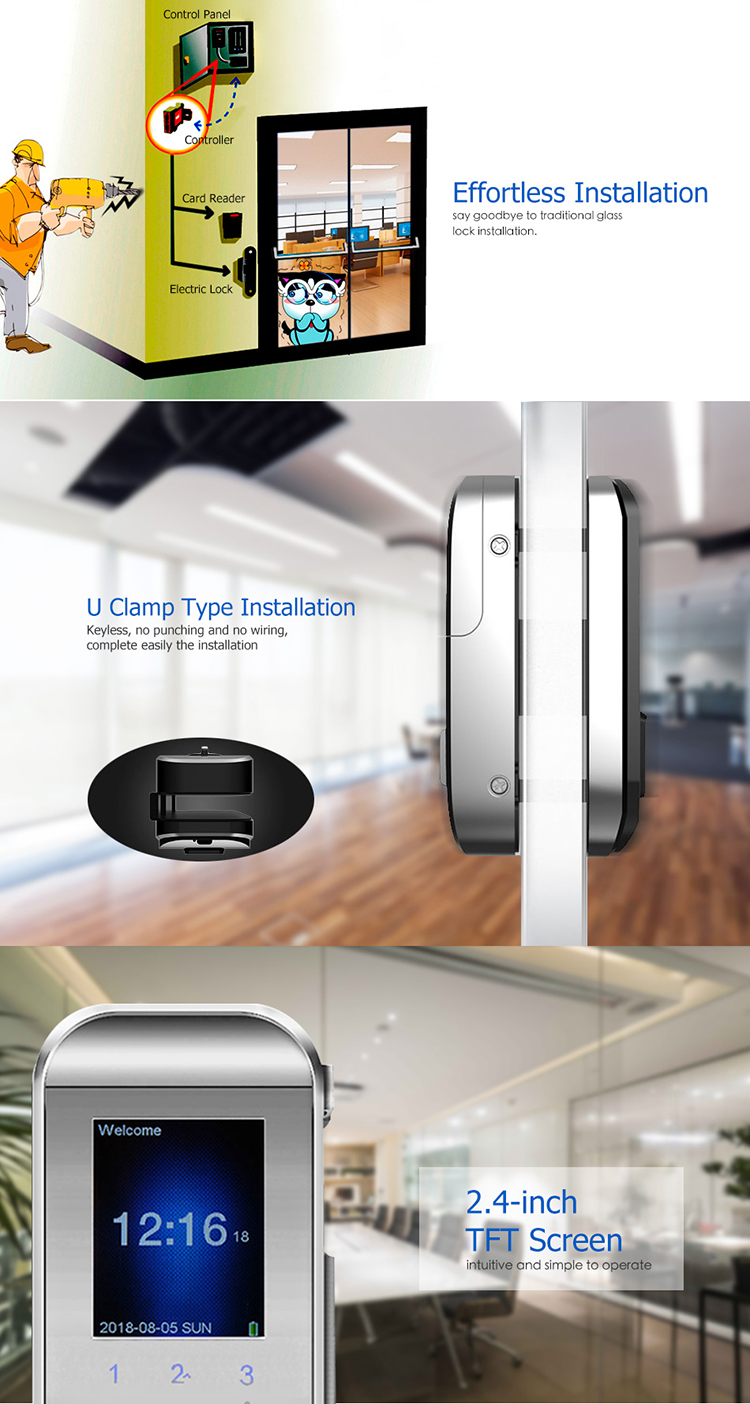

Easy to install without wiring,drilling , nailing and punching.

2.4 inch TFT screen intuitiveto operate.

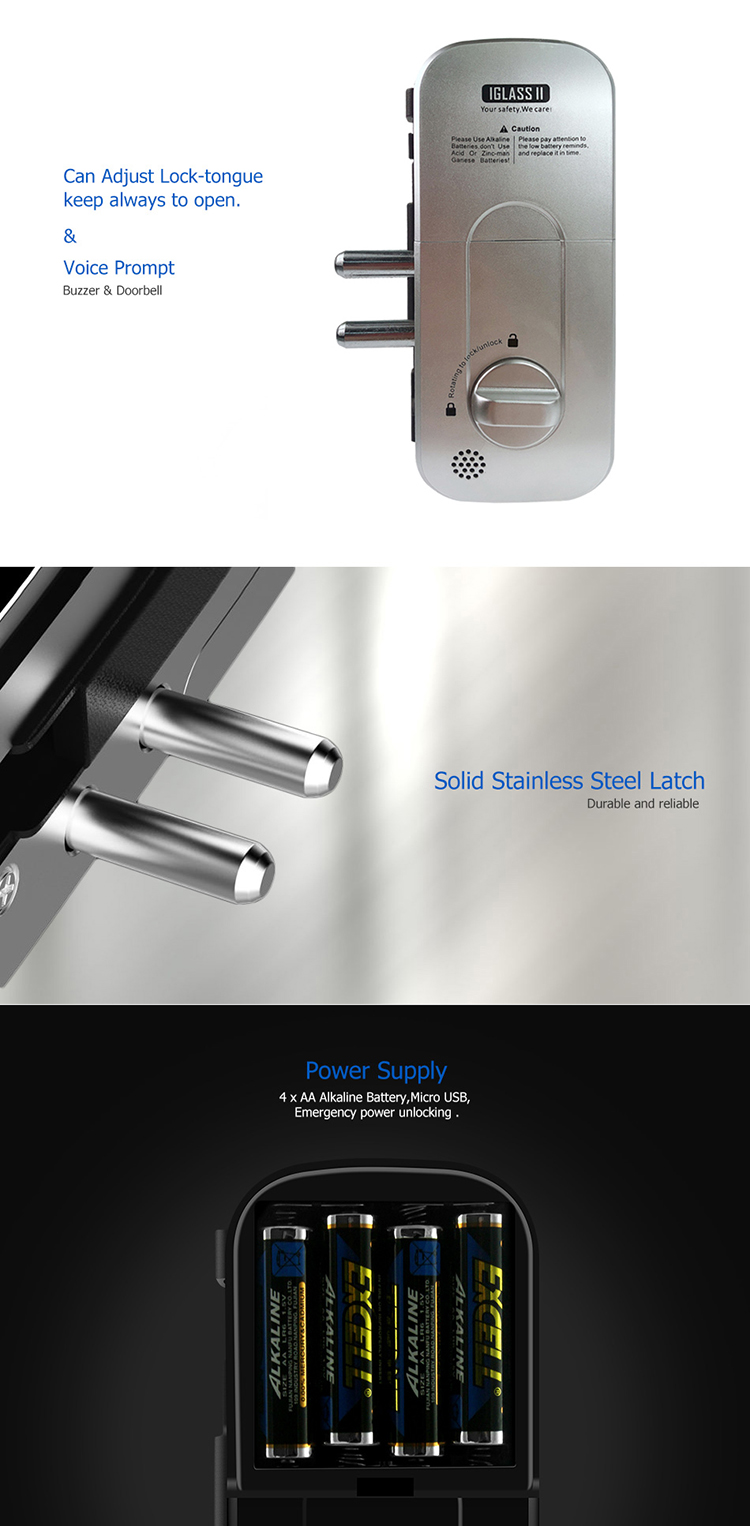

Adjustable lock tongue keepalways to open.

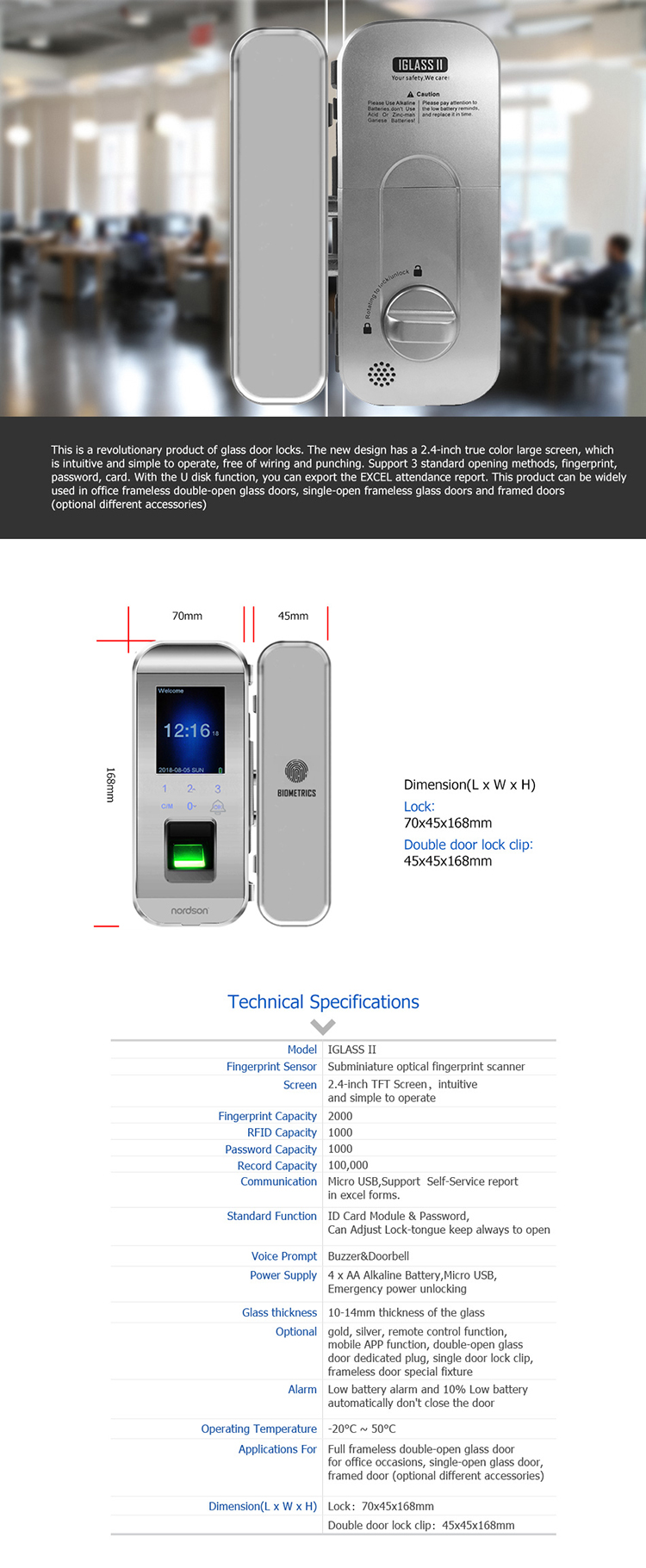

Model	IGLASS II
Fingerprint Sensor	Subminiature optical fingerprint scanner
Screen	2.4-inch TFT Screen, intuitive and simple to operate
Fingerprint Capacity	2,000
RFID Capacity	1,000
Password Capacity	1,000
Record Capacity	100,000
Communication	Micro USB, Support Self-Service report in excel forms
Standard Function	ID card module & password, adjustable lock-tongue keep always to open
Voice Prompt	Buzzer & Doorbell
Power Supply	4*AA alkaline battery, Micro USB, Emergency power unlocking
Glass Thickness	10~14mm thickness of the glass
Optional	Gold, silver, remote control function, mobile APP function, double-open glass door delicated plug, single dor lock clip, frameless door special fixture
Alarm	Low battery alarm and 10% low battery automatically don't close the door
Operating Temperature	-20℃~50℃

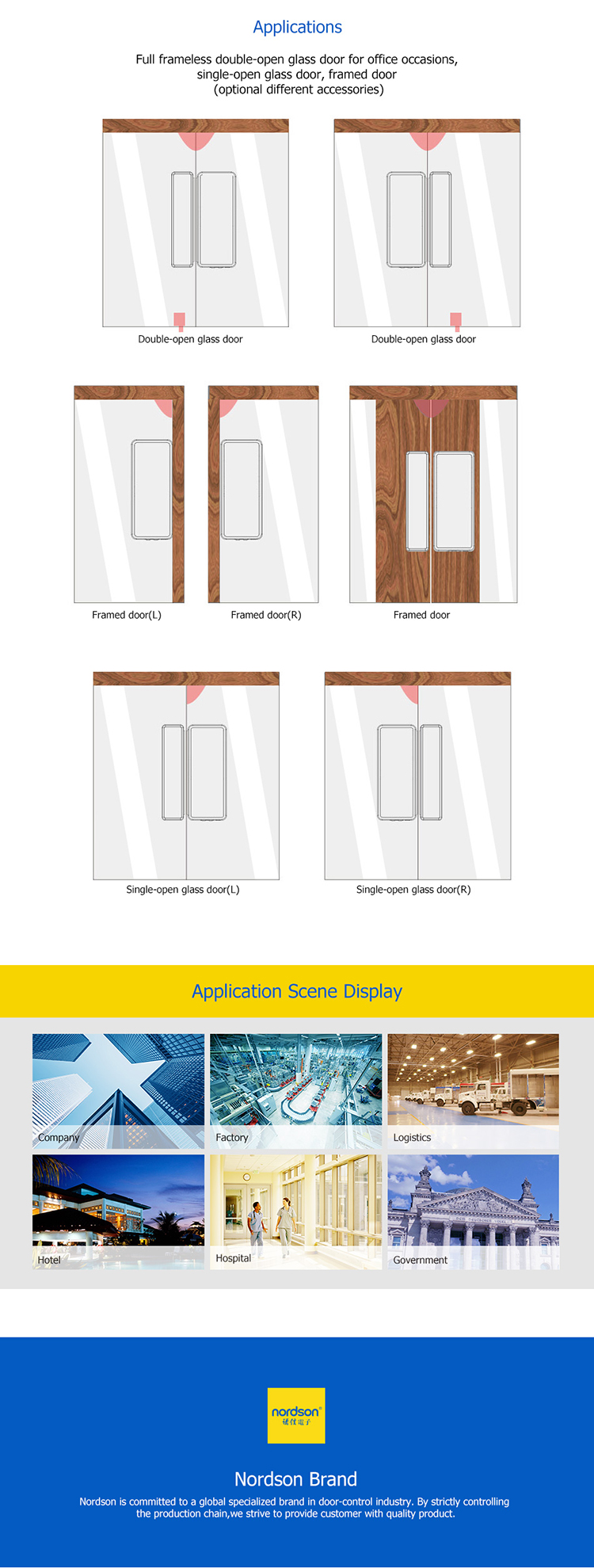

Applications for	Full frameless double-open glass dor for office occasions, single-open glass door framed door(optional different accessories
lock size(L*W*H)	70*45*168mm
Clip size(L*W*H)	45*45*168mm

IGLASSII Glass Door Fingerpri Lock User Manual 1510.86KB 2018-09-12
