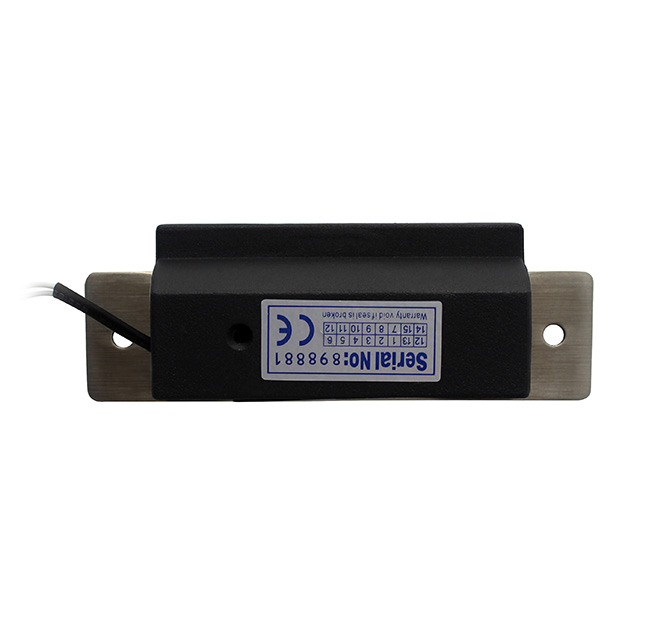

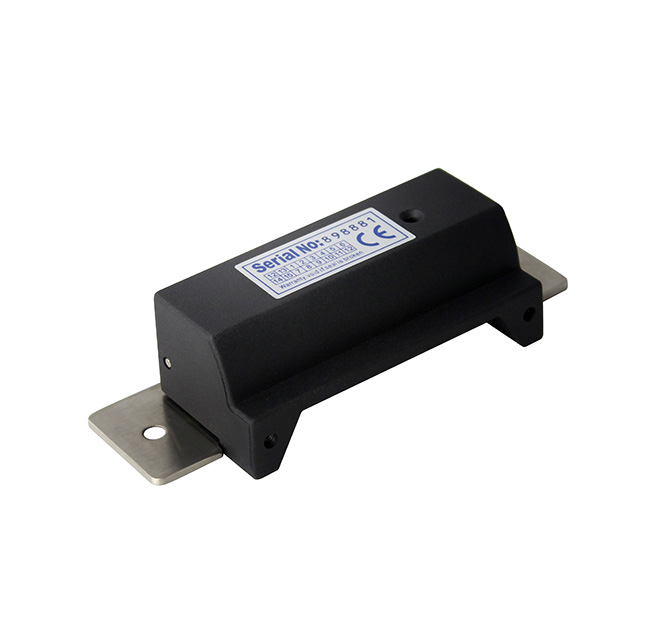

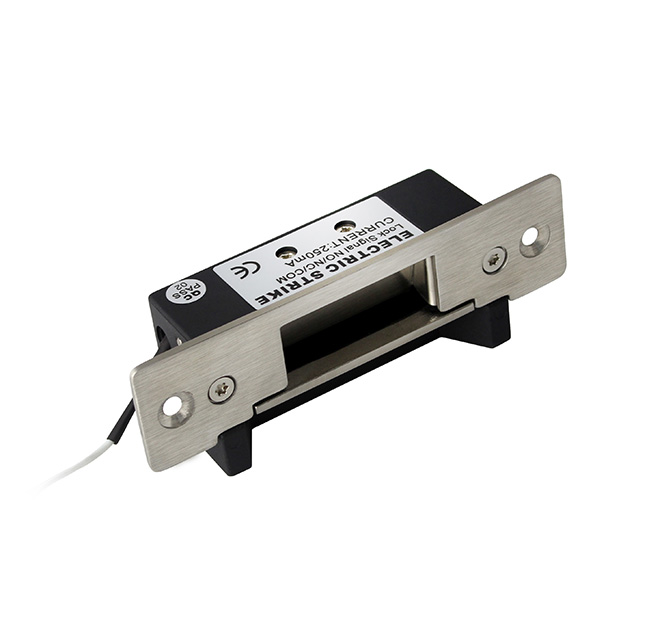

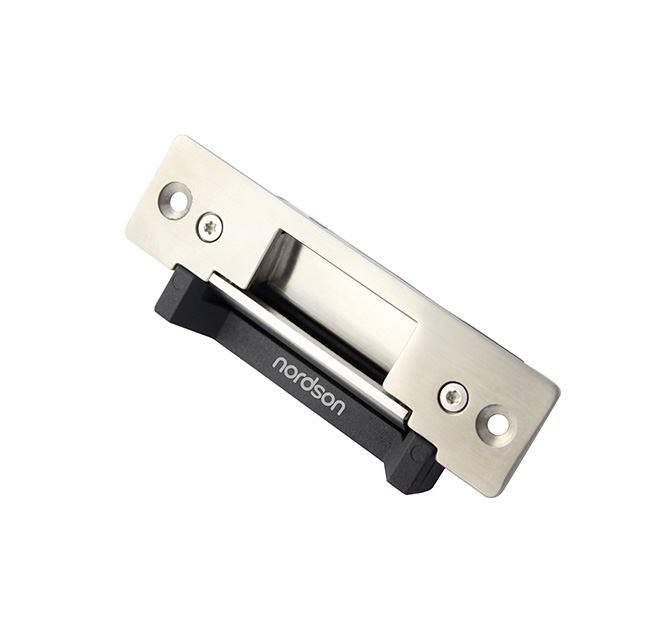

NJ-320B ANSI Standard American Electric Strikes

Fail-safe type (Power to lock)
Can be adjusted

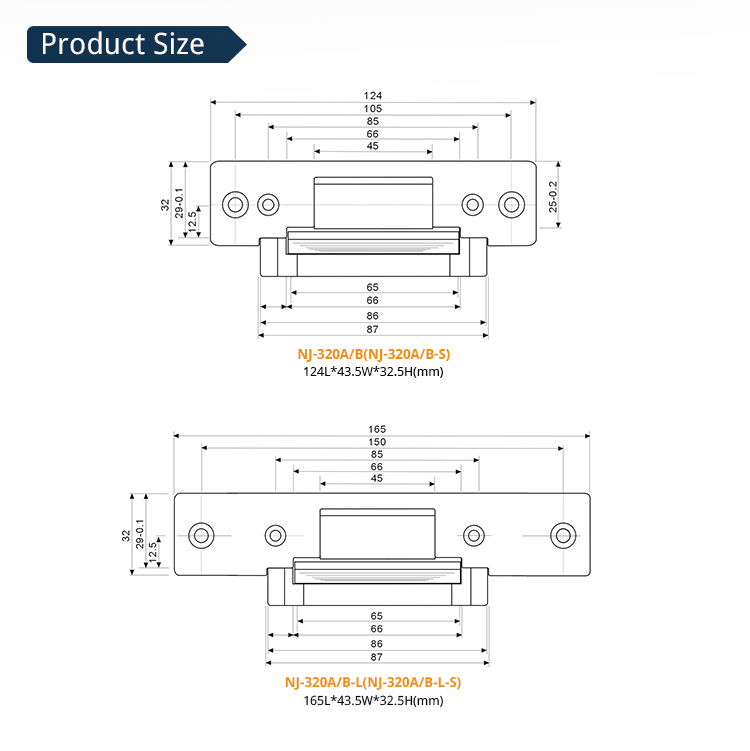

Lock Size: 124L*43.5W*32.5H(mm)
Holding Stength: 800kg
Bolt Structure: Stainless Steel

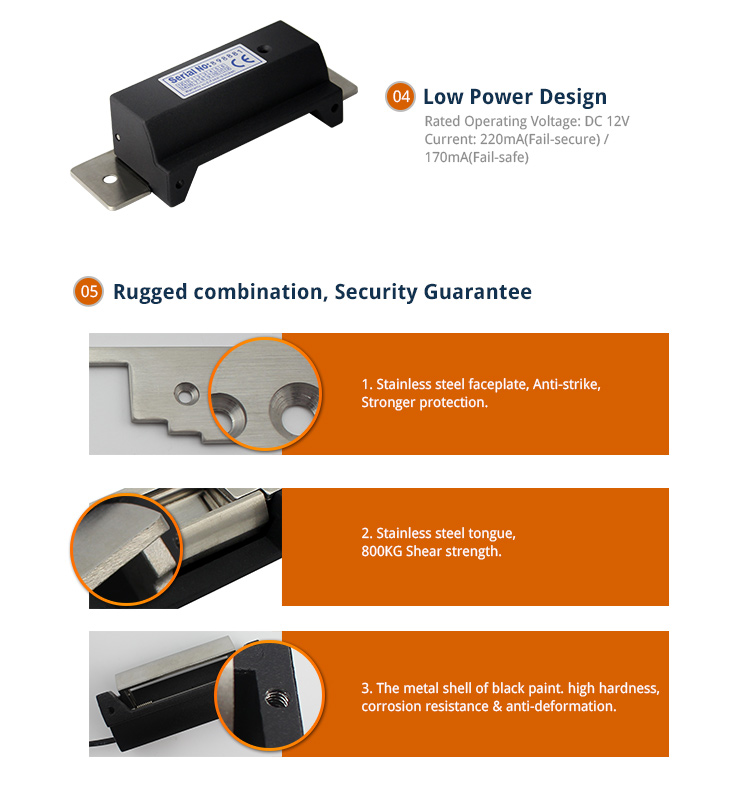

Voltage: 12VDC
Current: 220mA(NJ-320A) / 170mA(NJ-320B)
Weight: 0.6kg

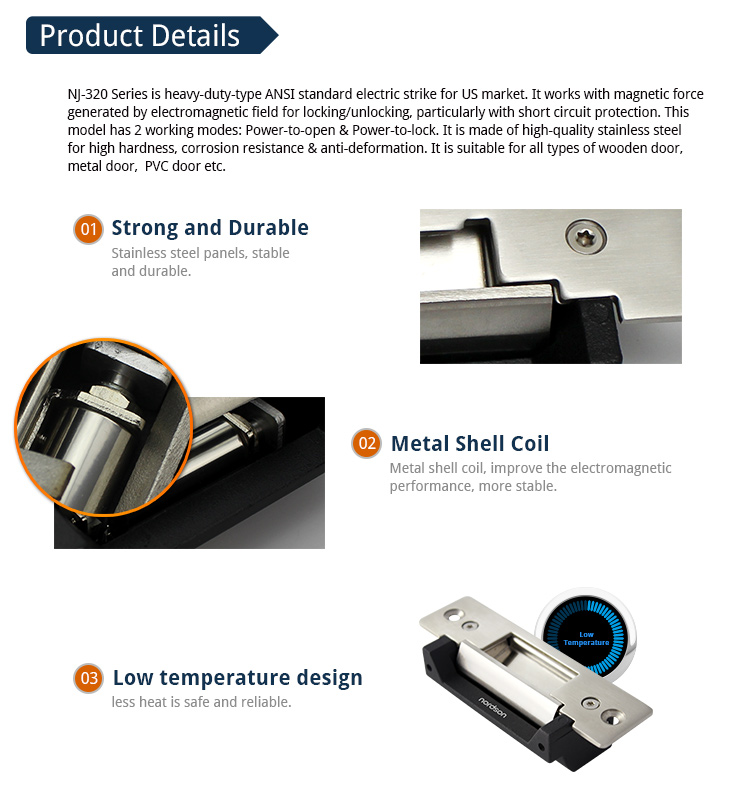

NJ-320B is heavy-duty-type ANSI standard American Electric Strikes with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.
1.Pass 1600lbs super linear static thrust test

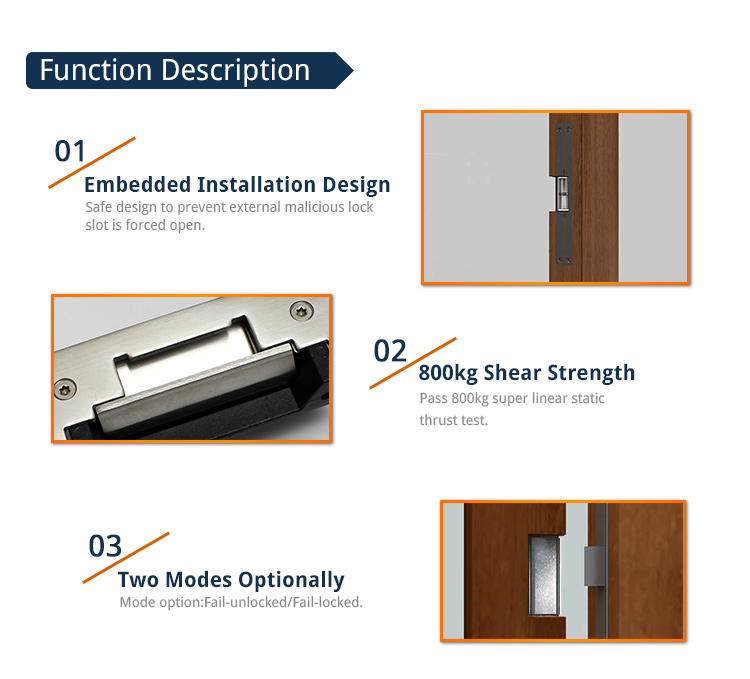

2.Mode option:Fail-unlocked/Fail-locked
3.Suitable for ANSI standard for US Market
4.Direct installation on Wooden,PVC,metal door frame with mounting hole
5.Pass test of high temperature aging 100,000 times
6.Made of high-quality stainless steel for high hardness,corrosion resistance & anti-deformation
7.Strike trough 15mm deep,Widely used with all kinds of mechanical lock.
8.CE Certificate & MA Certificate approved

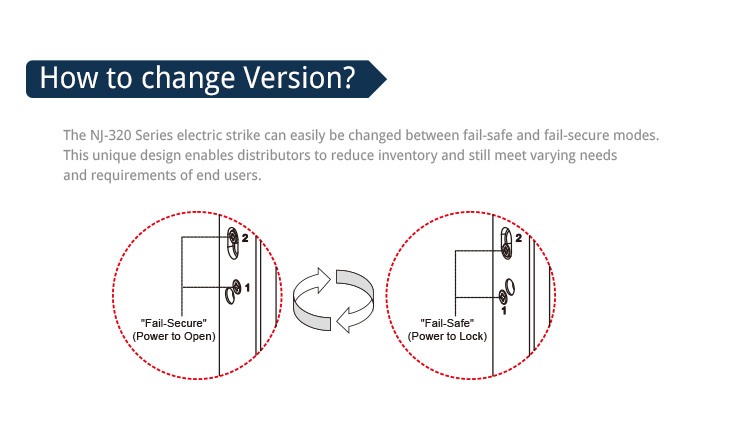

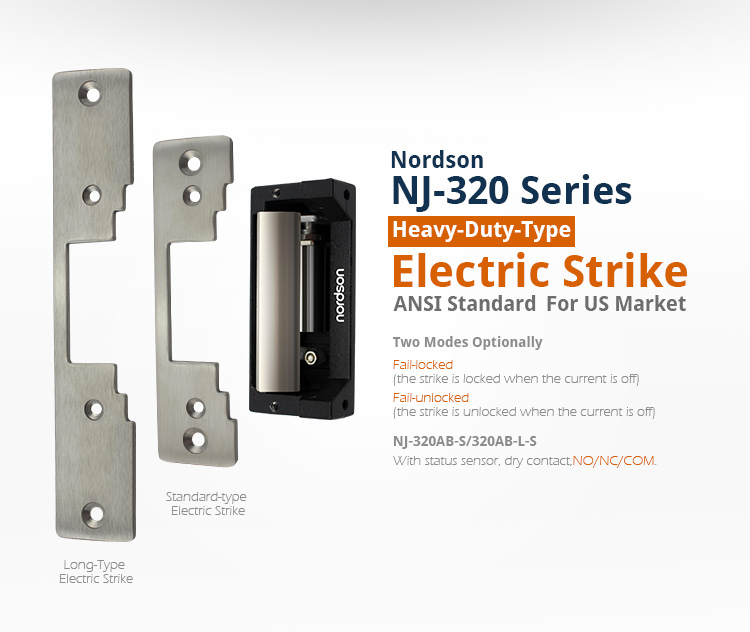

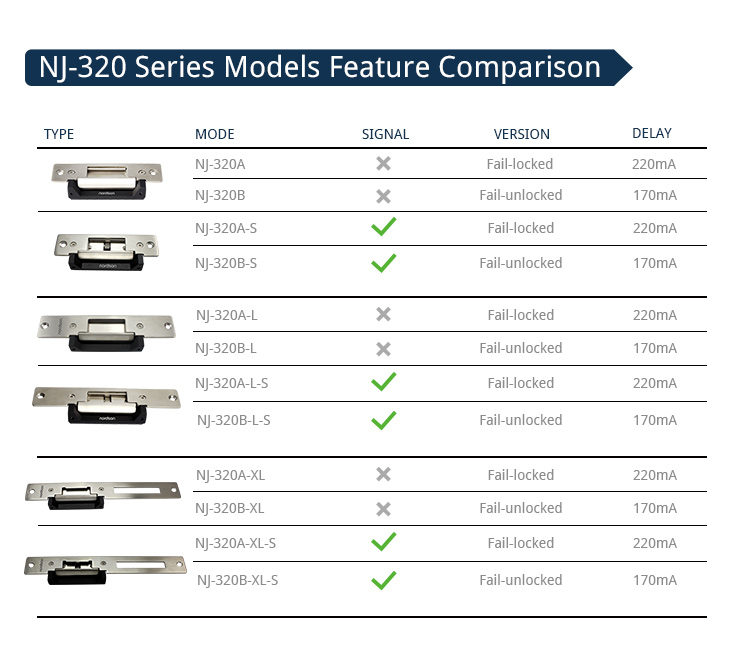

Version	NJ-320A:Fail-locked(the strike is locked when the current is off) NJ-320B:Fail-unlocked(the strike is unlocked when the current is off)
Shear strength	1600Lbs(800kg)
Lock Status Sensors	NO
Rated Operating Voltage	DC 12V
Standby Current	220mA

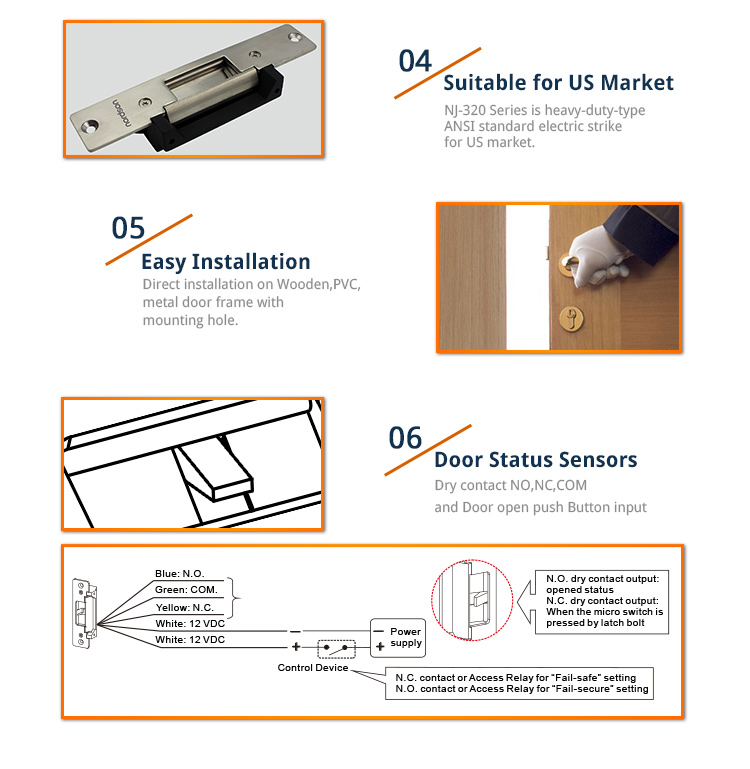

Optional Functions	Lock Status Sensors
Face place material	Stainless Steel
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C

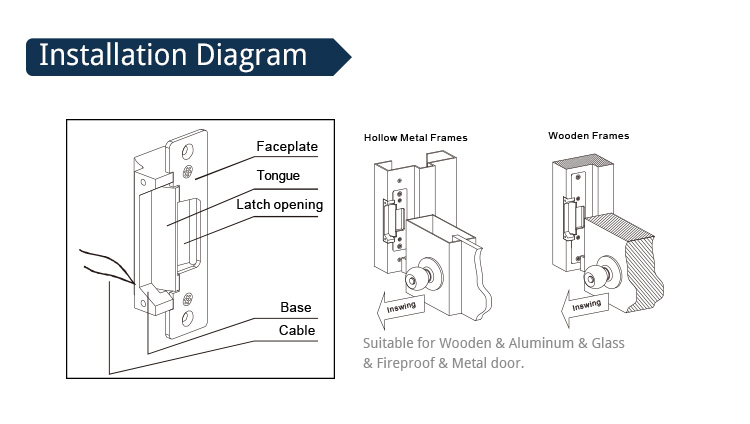

Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal door
Strike Plate Dimensions(L x W x D)	124Lx32Wx36H(mm)
Weight in kg	0.38kg
CE-mark for building	YES
Rohs-mark for building	YES
