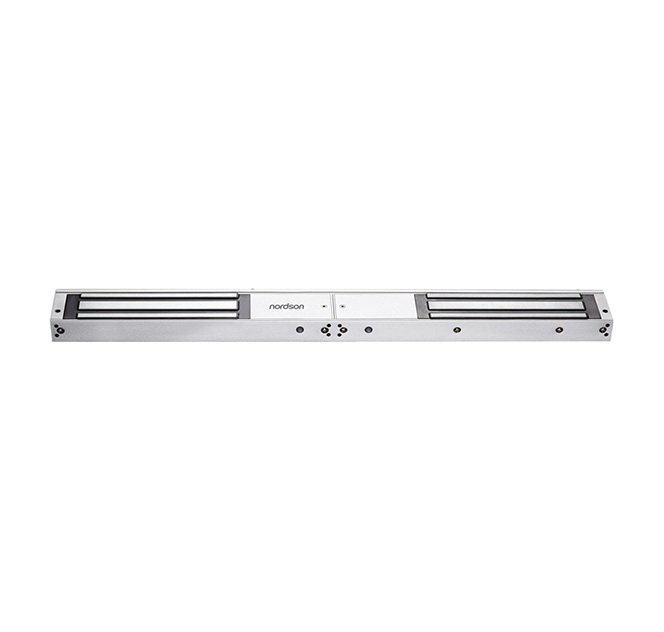

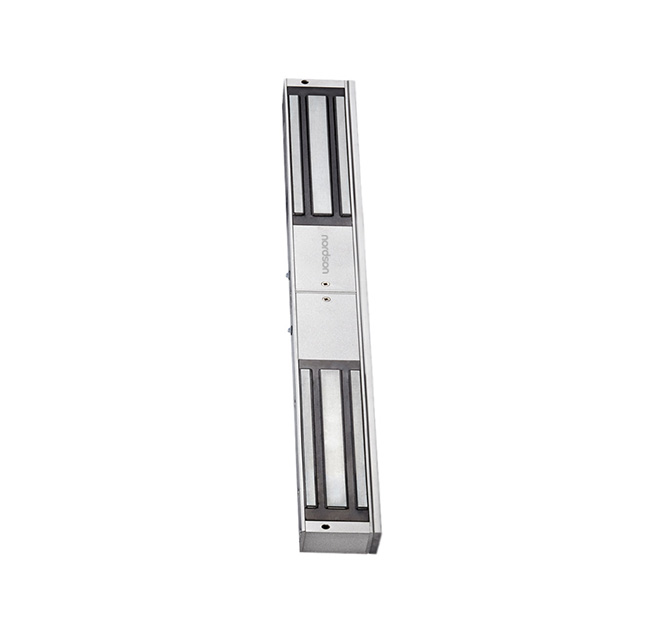

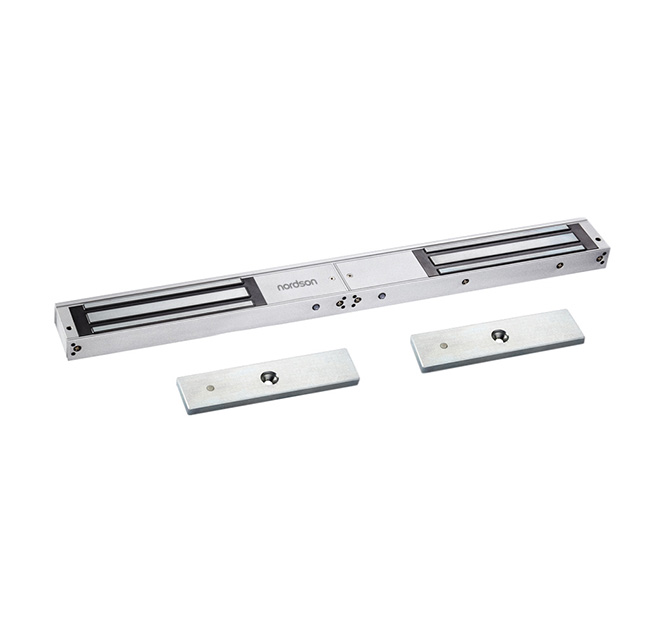

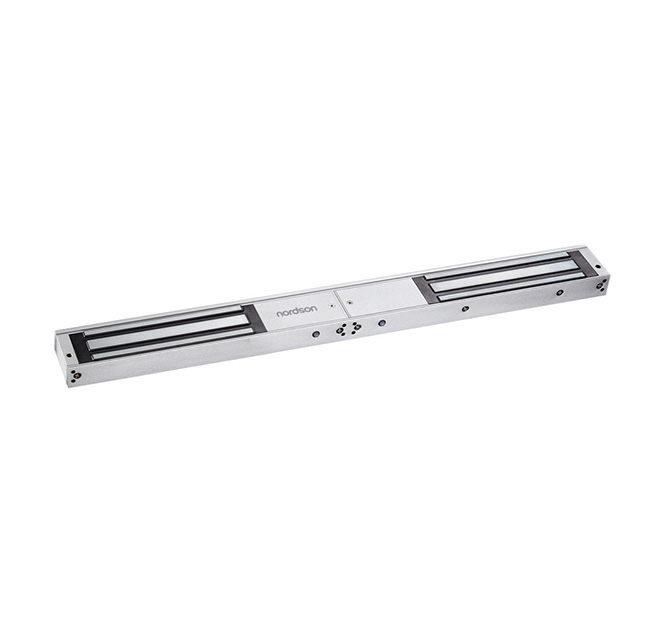

NE-380DST Electro magnetic door lock

LED display and door position detection output & With Timer
Voltage:DC12V or DC24V

Current Draw: 12V/480mAx2 24V/240mAx2

Lock Size: 570L*55W*29H(mm)
Armature Plate: 190L*45W*11H(mm)

Buzzer Customization Available
Weight: 5kg

NE-380DST double door magnetic lock,with door status signal output led indicate and timer,specially used to normal glass door,wodden door,metal door,fire doors,and all kinds of door.Hoisting design,saves time and power when installation.Inward door,frameless glass door,narrow door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
1.With the door status signal output,passed 2x800lbs super static linear tension tests.
2.Anti-residual magnetic design,keep constanttension.
3.Built-in reverse current protectiondevice (MOV), performance stability ,safety coefficient is higher.
4.Wear materials, durable.
5.Electromagnetic suction work completely,there is no mechanical failure.
6.Shell with high strength alloy material,anode hardening treatment.
7.lock body with double insulation treatment.
8.Through the European CE and ROHS, MA certification in China.

Holding Force	2x380kg(800Lbs)
Lock Status Indicator	Red and Green, double color LED
Relock Delay Timer	0,3,6,9 seconds open time delay is adjustable
Lock Status Sensors	Dry contact NO,NC,COM
Rated Operating Voltage	12/24VDC
Current consumption	12V/500mA 24V/250mA
Optional Functions	Buzzer
Surface finish for magnet	Zinc plated
Surface finish for armature plate	Zinc plated
Ambient temperature in °C	-10～+55℃(14-131F)
Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal
Magnets Dimensions(L x W x D)	570Lx55Wx29H(mm)
Armature Plate Dimensions(L x W x D)	190Lx45Wx11H(mm)
Weight in kg	5.4kg
CE-mark for building	Yes
Rohs-mark for building	Yes
