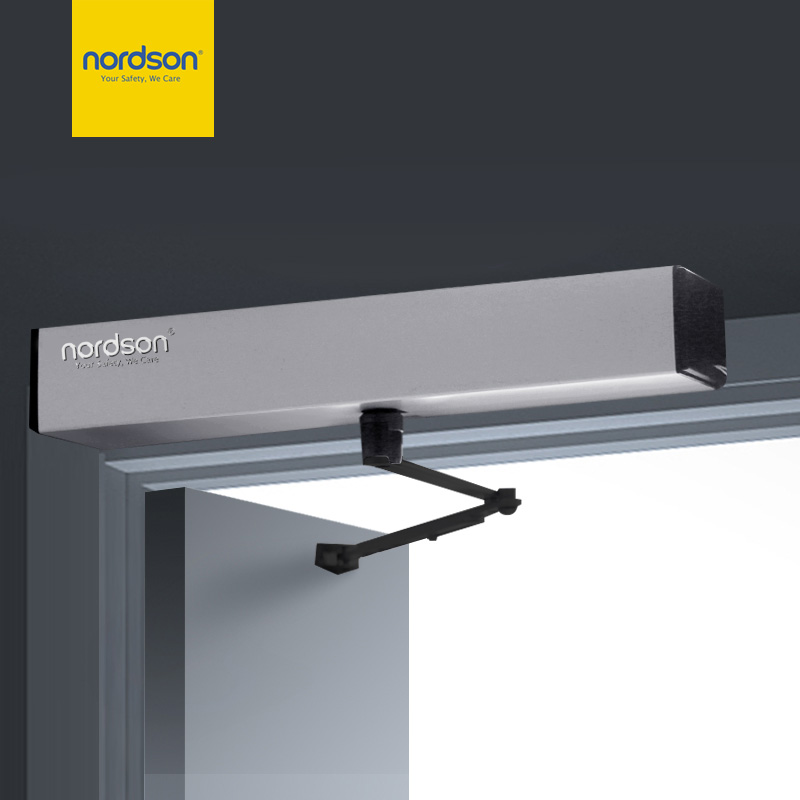

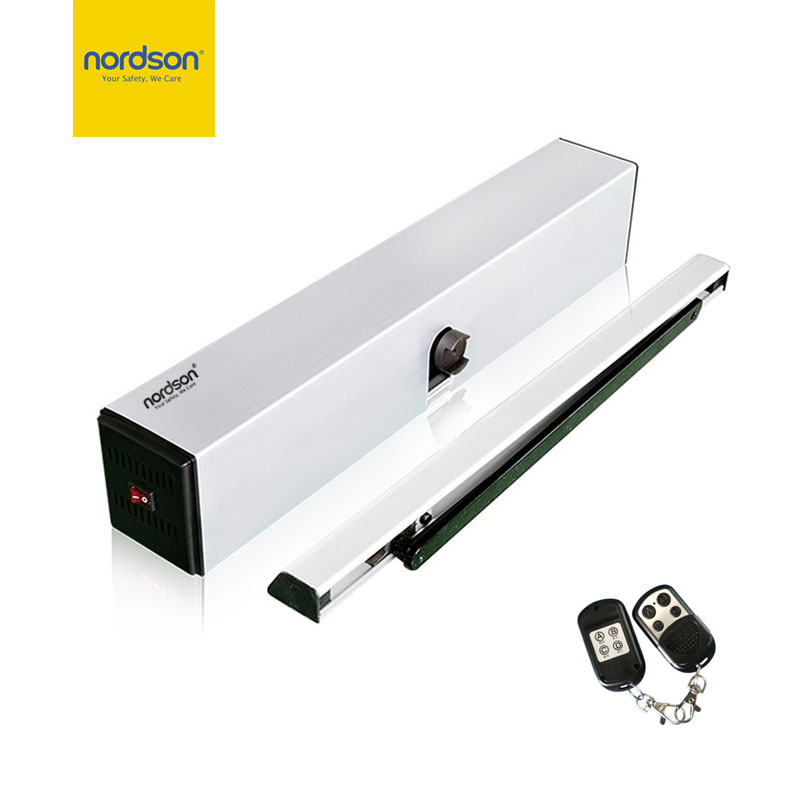

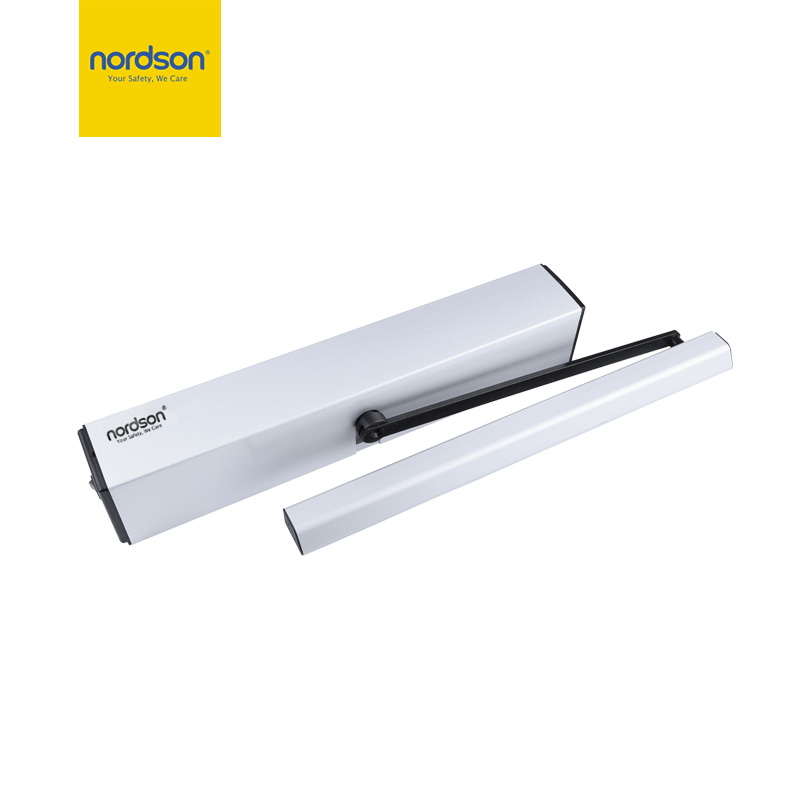

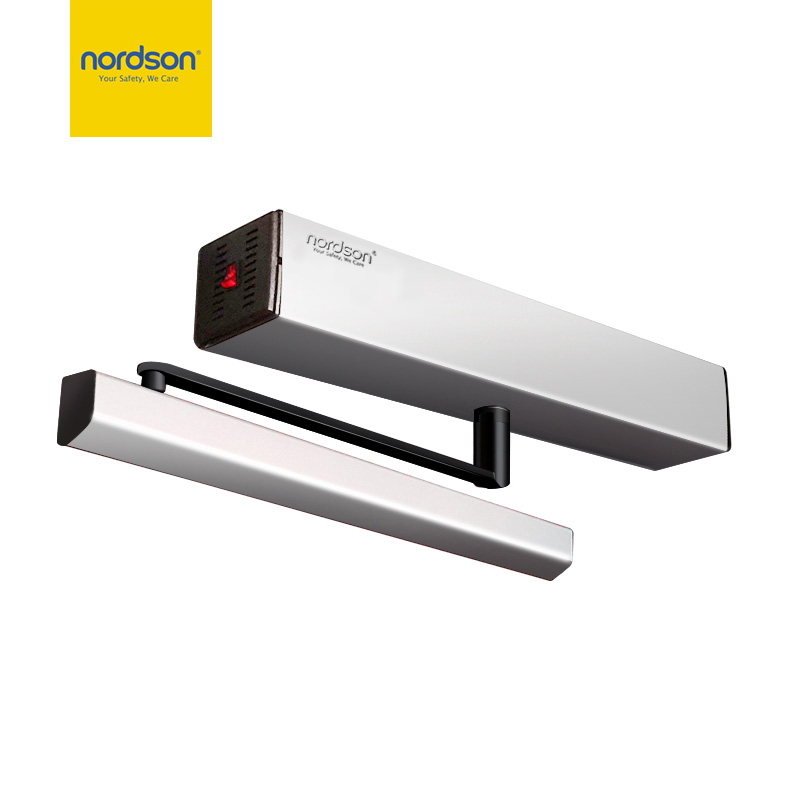

The AUTO100 PRO unit operates with low noise, reliable performance and safe use, providing more convenience for living and working environments.the hardware is a new upgraded transformer-less drive that offers a wider range of supply power voltages for 100V-240V AC. Provides interfaces such as sensors, access control, and security sensor protection, and is equipped with interfaces for magnetic electric lock and support backup battery too.UPS power can be configured to meet security requirements.
Both them can realize Interlocking function between door and door.If touch obstacles or personnel in operation, the door will open in the opposite direction. Applicable to office buildings,storefronts, banks, factories, restaurants, hotels, shopping centers, laboratories, hospitals and other places.It conforms to the existing safety standards and can be programmed to adjust the manual force and speed according to the size of the door. When the obstacle is touched, the door will reopen immediately. The next closing, the door will slow down to detect obstacles.

1.New upgraded transformer-less drive that offers a wider range of supply power voltages for 100V-240V AC
2.Provides interfaces such as sensors, electric lock,access control, and security sensor protection,and support backup battery too.
3.When the obstacle is touched, the door will reopen immediately. The next closing, the door will slow down to detect obstacles.
4.Applicable to office buildings,storefronts, banks, factories, restaurants, hotels, shopping centers, laboratories, hospitals and other place.
5.The Hardware Both them can realize Interlocking function between door and door.
6.One years limited warranty

Model	AUTO100 PRO
product name	Automatic Swing Door Opener
Door form	single door or double door(need two set)
Carrying weight	≤1×100kg
Applicable door width	≤1200mm
Power supply voltage:	AC 100V-240V, 50/60Hz
Power consumption	50W
Door opening speed	250-450mm/S (adjustable)
Closing speed	250-450mm/S (adjustable)
Opening time	3-7S (adjustable)
Door opening time	1-30S (adjustable)
Opening Speed	250-450mm/s(Adjustable)
Closing Speed	250-450mm/s(Adjustable)
Manual opening and closing force	<30N
Running noise	≤55Db
Protection level	IP12D
Door Opener Body Dimension	540*95*82mm

DB-AUTO100 PRO Automatic Swing Door Opener System User Manual 1424.22KB 2020-11-27
