NE-90XP Automatic door magnetic lock with bracket,special used to Automatic door (Especially suitable for panasonic automatic door
),storage cupboard.Hoisting design,saves time and power when installation.Automatic door all have a complete set of accessories.Special Anti-residual magnetic design makes automatic access control safer and more convenient.
Home >
Products >
Electric Locking Devices >
Automatic Door Magnetic Lock >
NE-90XP Automatic magnetic lock Home >
Products >
Electric Locking Devices >
Automatic Door Magnetic Lock >
NE-90XP Automatic magnetic lock

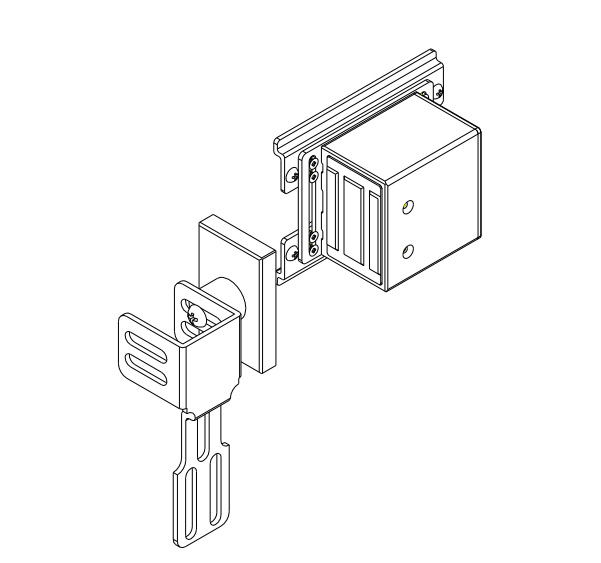

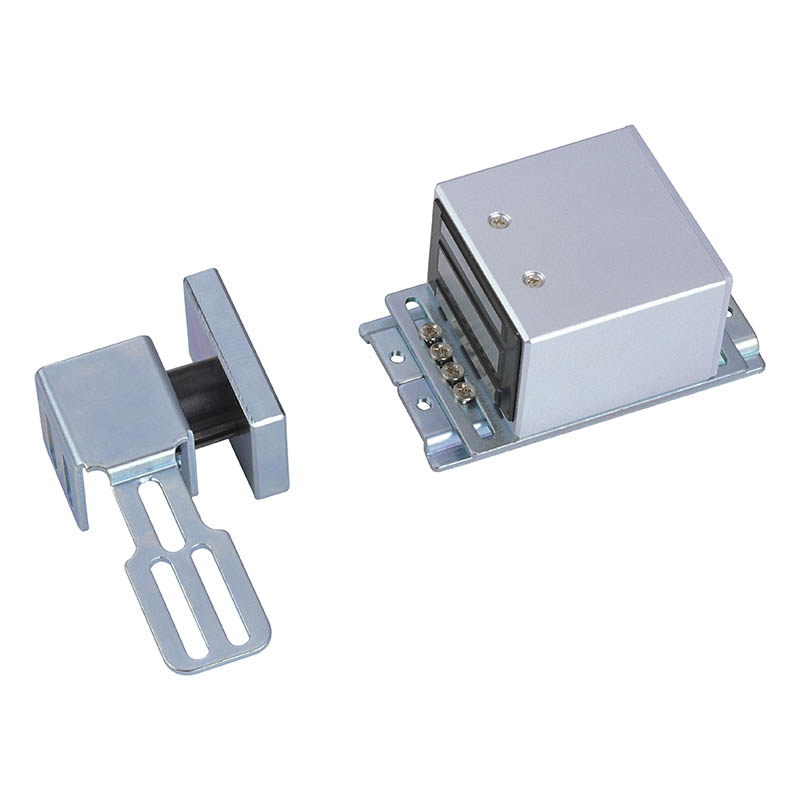

NE-90XP Automatic magnetic lock
Fail-safe: Power to lock
Lock Size: 138L*83W*53H(mm)
Armature Plate: 67L*44W*10H(mm)
Voltage: 12VDC Current Draw: 12V/150mA
Holding Force: 90kg(180Lbs)

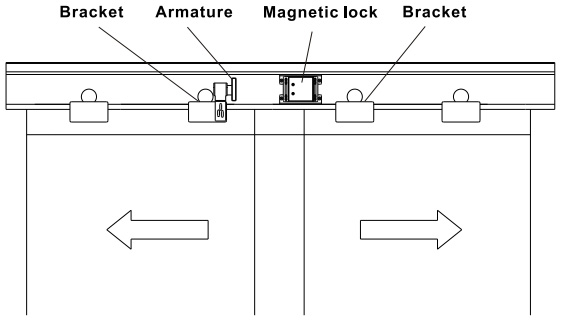

Adjustable bracket for all types of automatic door.
Door position output to prevent doors from being closed.
Weight: 1.4kg
Lock Size: 138L*83W*53H(mm)
Armature Plate: 67L*44W*10H(mm)
Voltage: 12VDC Current Draw: 12V/150mA
Holding Force: 90kg(180Lbs)
Adjustable bracket for all types of automatic door.
Door position output to prevent doors from being closed.
Weight: 1.4kg
