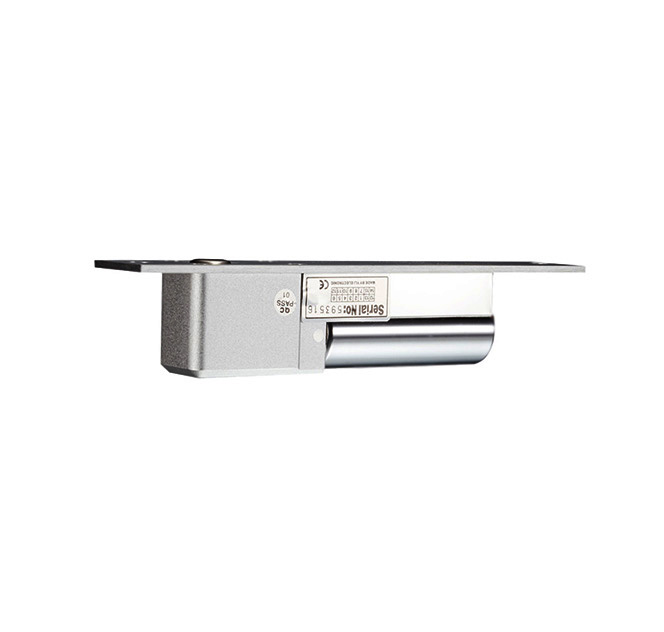

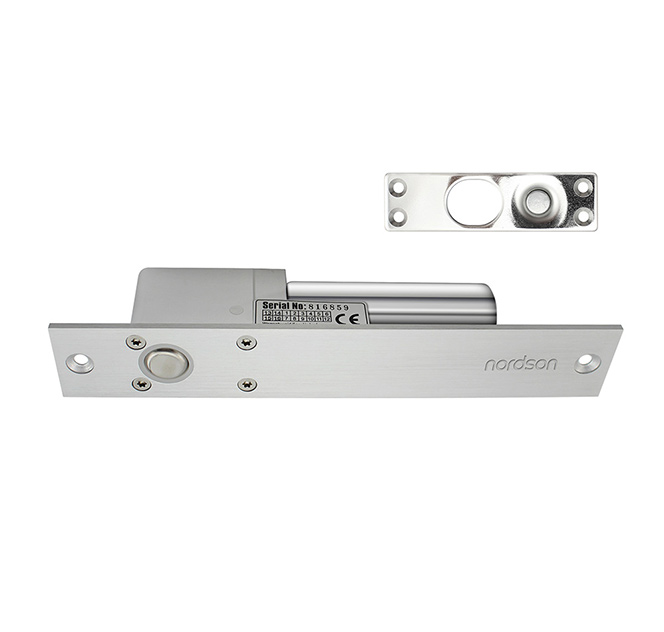

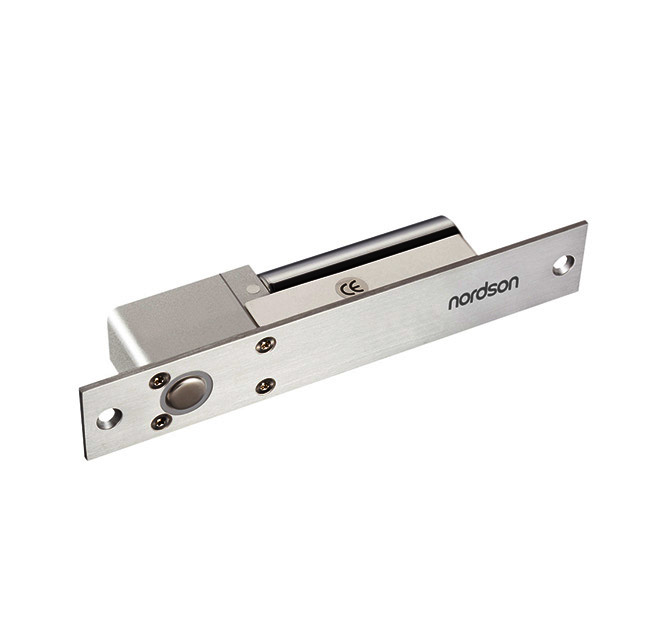

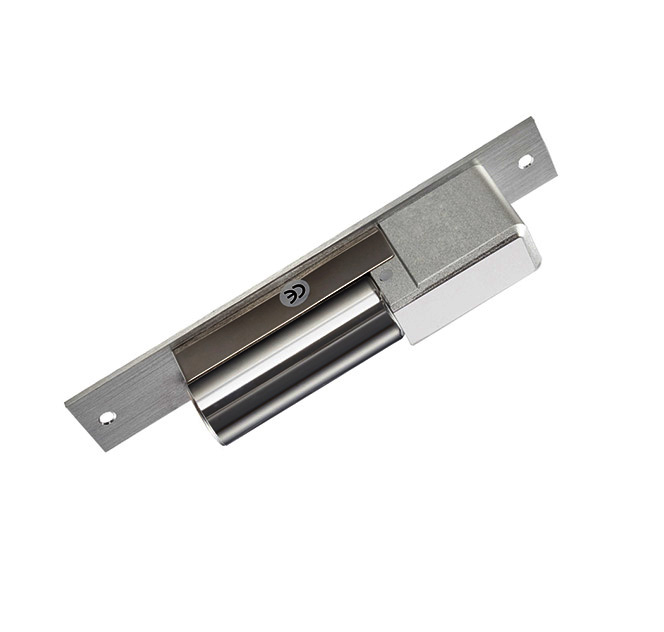

NI-100C is a multi function low temperature electronic door lock with door status signal output, which is fail safe electric bolt lock that suitable for glass door, wooden door, metal door . We supply integrity equipment to collocate with fully frameless glass door, swing-in door and so on. Build-in Photoelectricity control and low temperature design, which makes access safer and durable.

1. with door status signal output, Optical control techniques to prevent mechanical failure

2. Ultra-low temperature design, less heat, safer and more durable

A.Momentary current conversion

B. electric bolt will start scouting low power consumption and low temperature conversion while Door position is not corrector with stands bolt

C. Photoelectric technology, reduce mechanical failure

3.Ultra-low-power design, energy saving

4. 500,000 times successful test

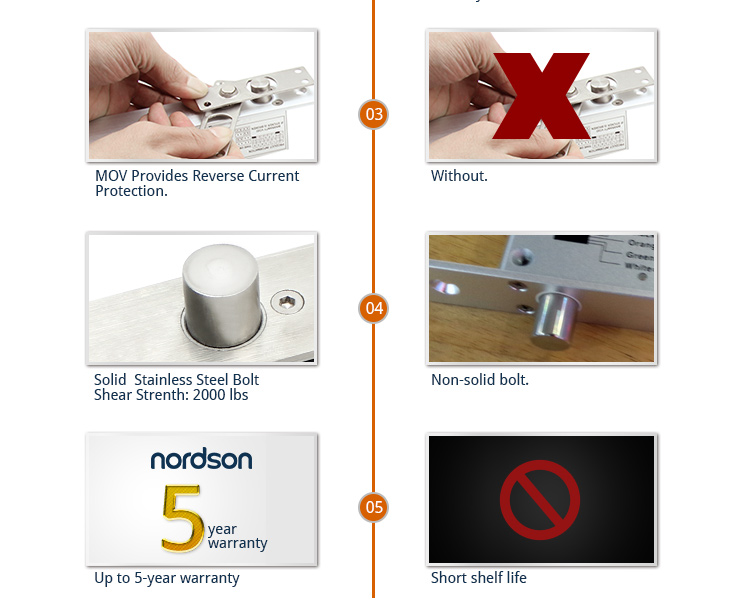

5. Built-in reverse current preventing equipment.

6. Intelligent single-chip configuration, level three current applications

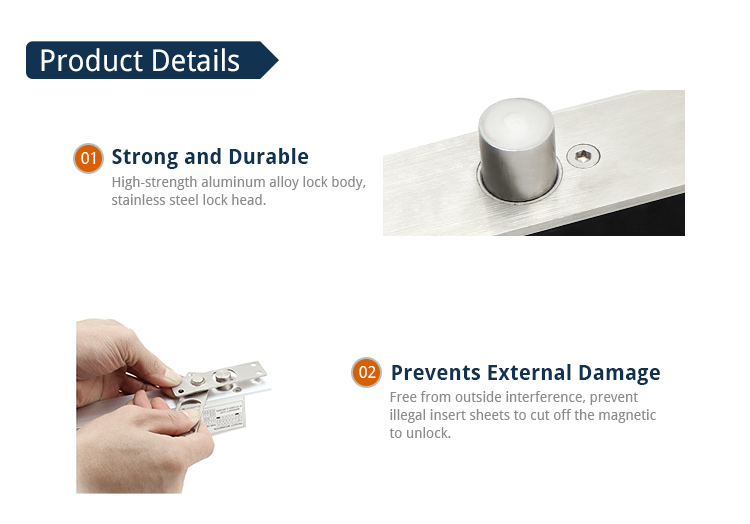

7. High-strength aluminum alloy lock body, stainlesss teel lock head

8. Product specification is complete for all types of door installation

9. CE, ROHS & MA certificates

Fixing	Embedded-mounted(vertical and horizontal)
Version	Fail-unlocked

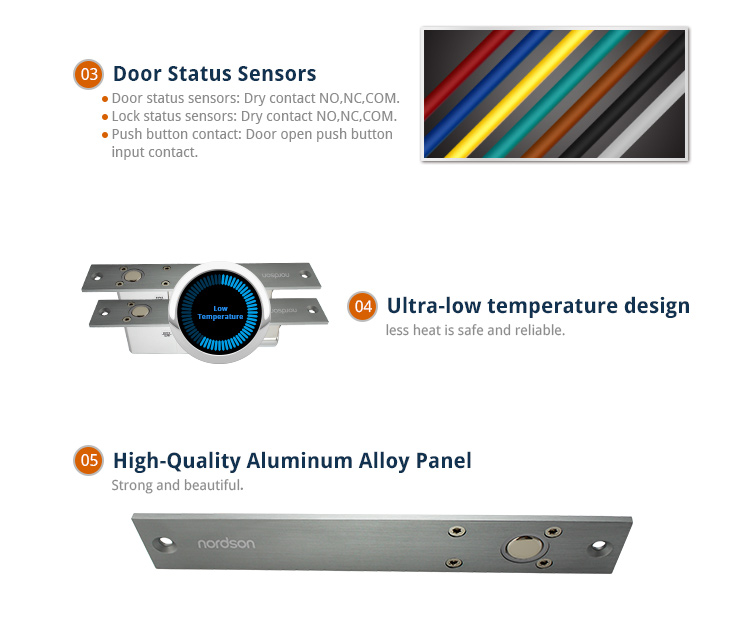

Standard Functions	Low Temperature,Door Status Sensors
Door Status Sensors	Dry contact NC,COM

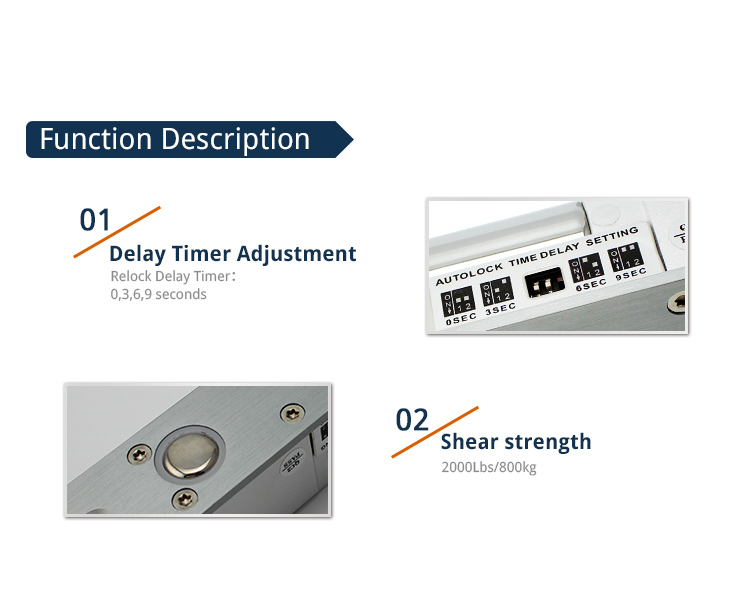

Optional Functions	Relock Delay Timer,Buzzer,Lock Status Sensors, Door Open Push Button Input Contact
Diameter dead bolt	ø16mm,16mm

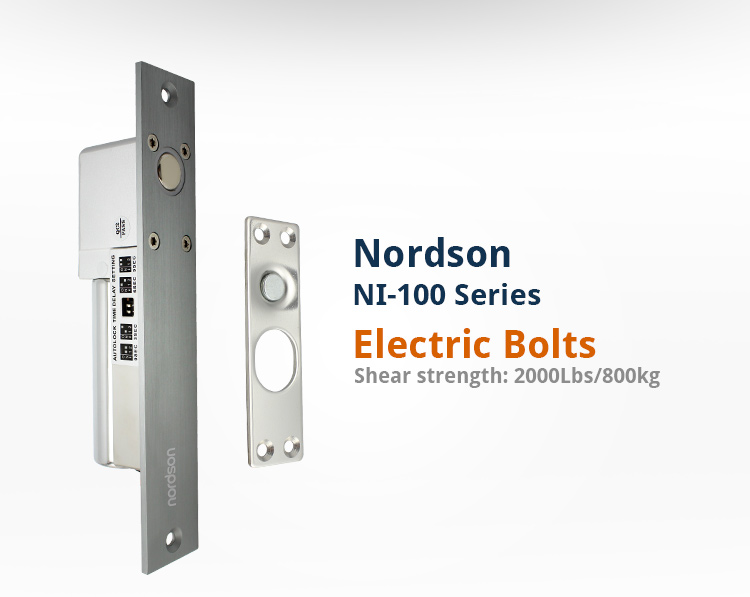

Shear strength	2000Lbs/800kg
Rated Operating Voltage	DC 12V or 24V (Customization Available)
Start Current	960mA
Standby Current	130mA
Face place material	High Aluminum
Surface Temp	Low Temperature
Ambient temperature in °C	-10°C - +55°C

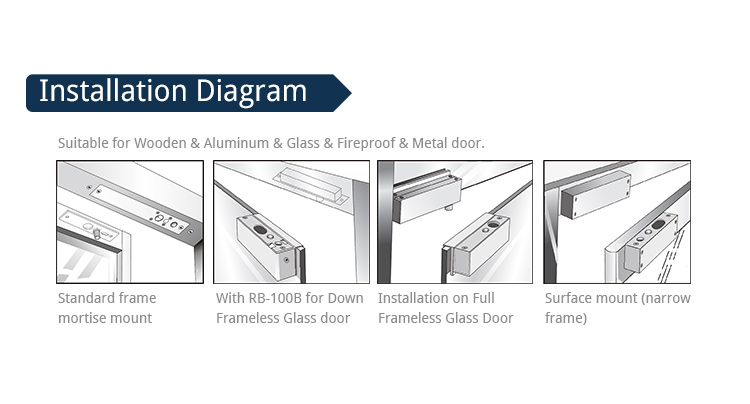

Suitable for	Wooden & Aluminum & Glass & Fireproof &Metal door

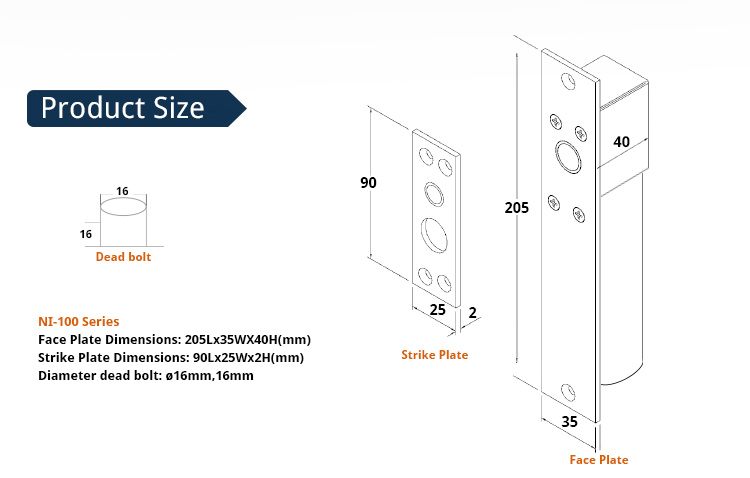

Face Plate Dimensions(L x W x D)	205Lx35WX40H(mm)
Strike Plate Dimensions(L x W x D)	90Lx25Wx2H(mm)
Weight	0.72kg
CE Certificat	YES
Rohs Certificat	YES

NI-100C installation guide 1845.00KB 2015-09-09
