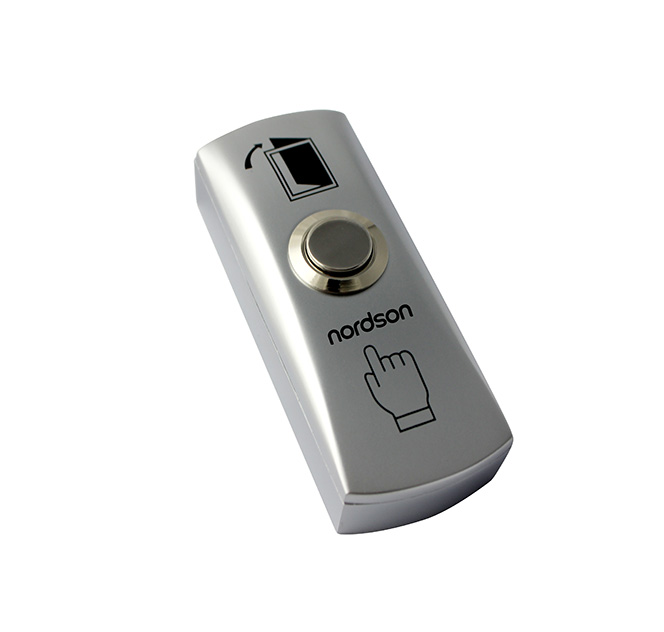

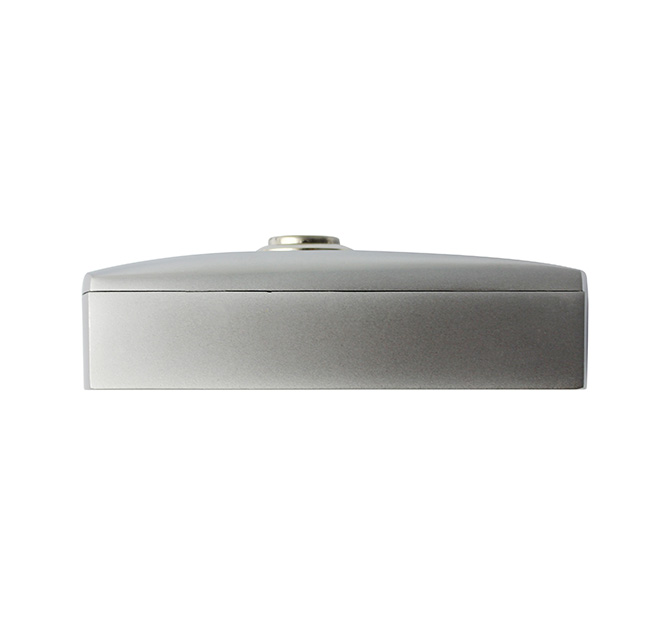

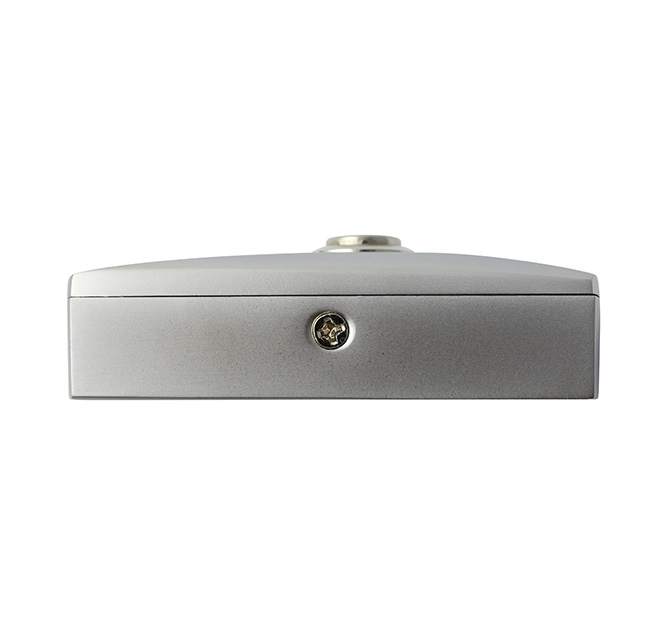

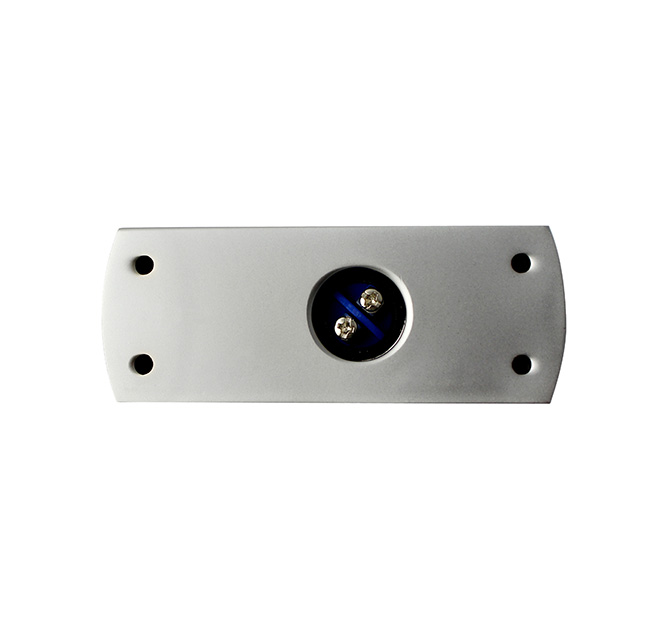

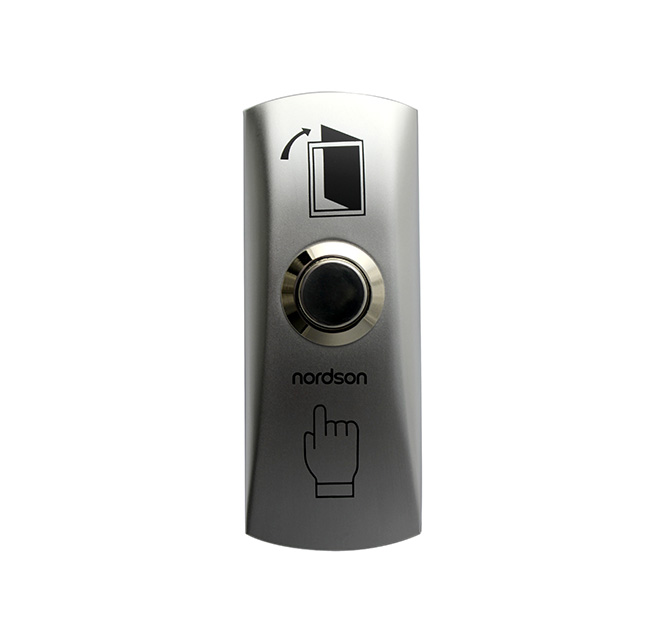

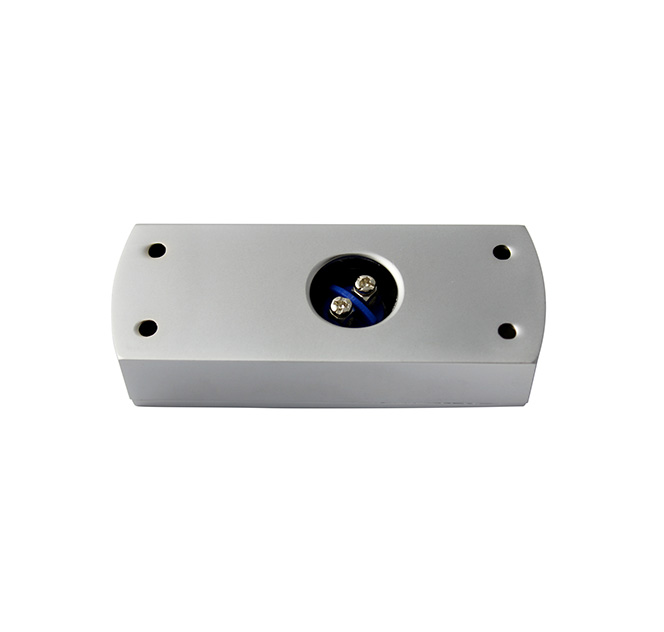

NF-30 Push Button with Back Box

Door Release button with back box
Current Rating: 3A@36VDC Max
Mechanical Life: 500000 tested
Suitable for Door: Hollow Door
Output Contact: NOCOM

Dimensions: 83*32*25(mm)
Weight: 0.2kg

NF-30 Push Button with Back Box is a satin finish stainless steel access switch button with installation back box, suitable for a variety of door frame, which is marketed after 500,000 successful test. It is with simple & ultra-narrow design, refined and elegant.The Exit Button is the Best Choice for Access Control Systems.
1.Simple and elegant design,Push Button with Back Box
2.Durable quality with imported stainless steel for faceplate and button
3.Easy installation with NO/COM dry contact
4.Long lifespan,500000 Successful Test
5.Available option for NO/NC/COM Output

Model	NF-30 Push Button with Back Box
Model	NF-30S Push Button with Back Box (with Night Luminous)
Material	SUS304 Stainless steel Panel, Steel Button
Current Rating	3A@36VDC Max
Output Contact	NO,COM Output
Optional Functions	NO/NC/COM Output
LED Nigh	Available option for Blue,Green or Red
Mechanical Life	500000 Successful Test
Suitable for Door	hollow door frame and electrical box use
Operating temp	-10～+55℃(14-131F)
Operating Humidity	0-95% (Non- condensing)
Dimensions	83Lx32Wx25H(mm)
Weight	0.2kg
