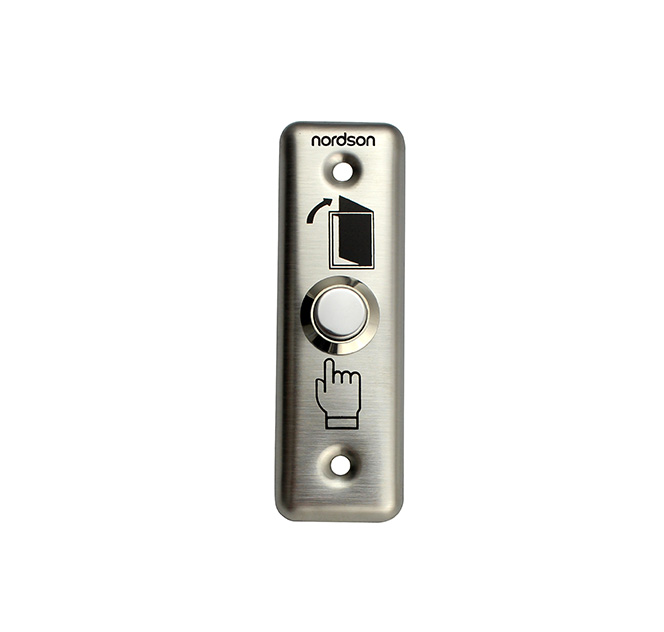

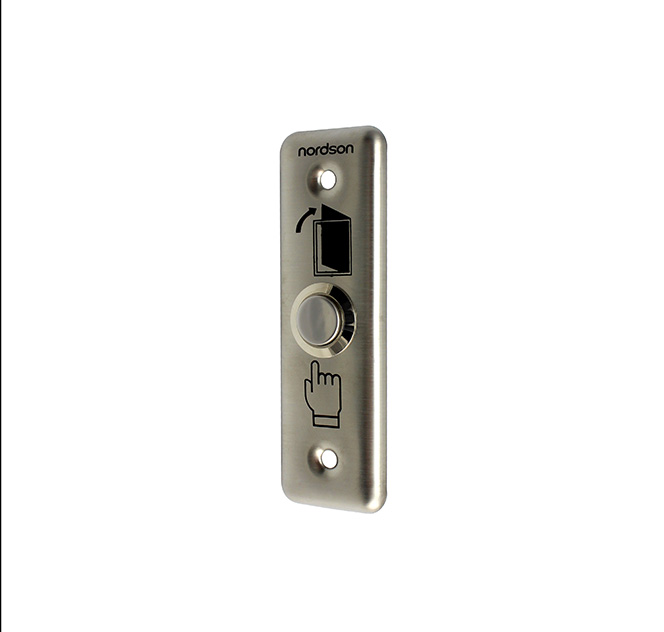

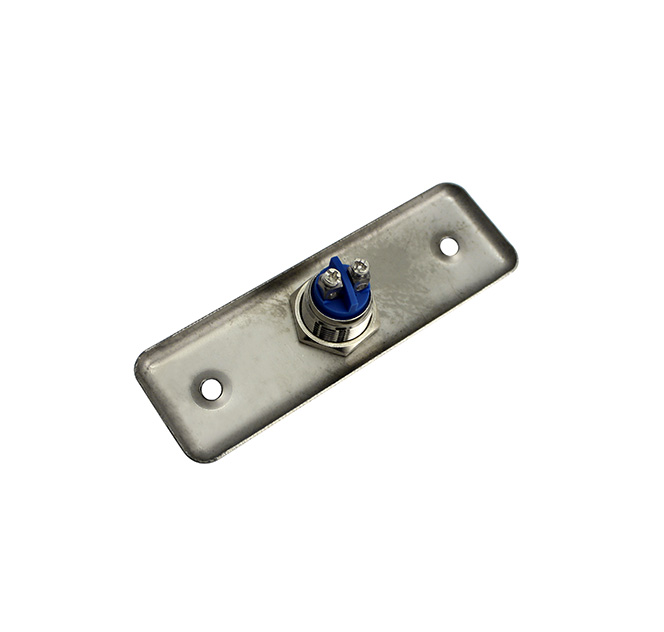

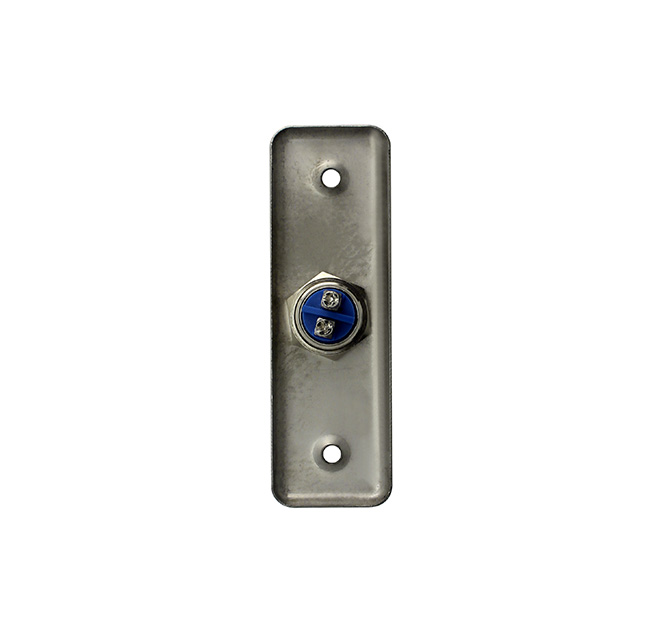

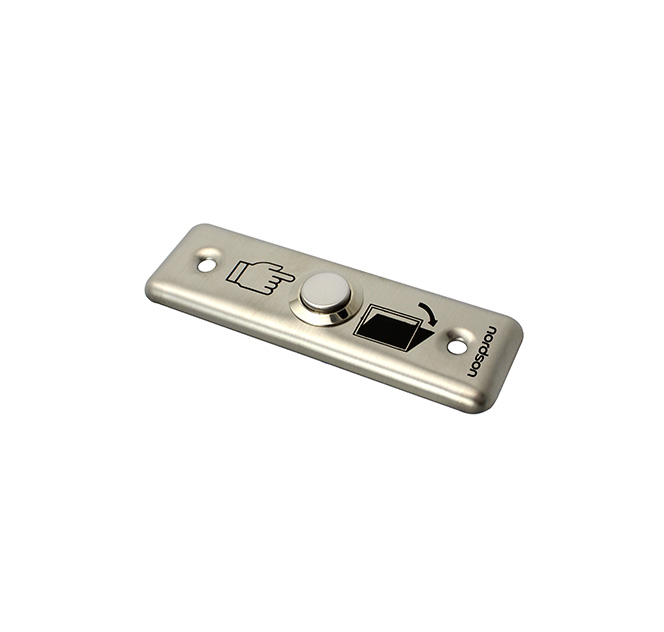

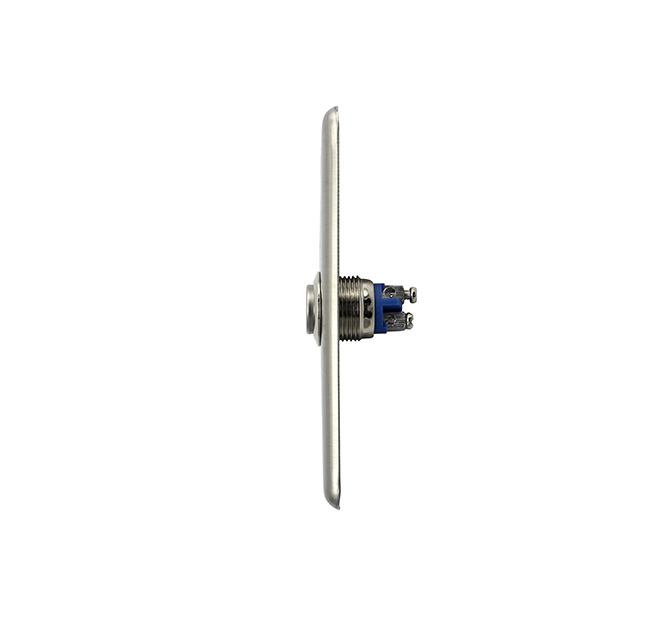

NF-20 Stainless steel Exit Button is a satin finish stainless steel access switch button, suitable for a variety of door frame,Long lifespan,500000 Successful Test. It is with simple & ultra-narrow design, refined and elegant.The Exit Button is the Best Choice for Access Control Systems

1.Simple and elegant design
2.Durable quality with imported stainless steel for faceplate and button
3.Easy installation with NO/COM dry contact
4.Long lifespan,500000 Successful Test
5.Available option for NO/NC/COM Output

Model	NF-20 Exit Button
	NF-20S Exit Button (with Night Luminous)
Material	SUS304 Stainless steel Panel, Steel Button
Current Rating	3A@36VDC Max
Output Contact	NO,COM Output
Optional Functions	NO/NC/COM Output
LED Nigh	Available option for Blue,Green or Red
Mechanical Life	500000 Successful Test
Suitable for Door	hollow door frame and electrical box use
Operating temp	-10～+55℃(14-131F)
Operating Humidity	0-95% (Non- condensing)
Dimensions	91Lx28Wx20H(mm)
Weight	0.08kg
