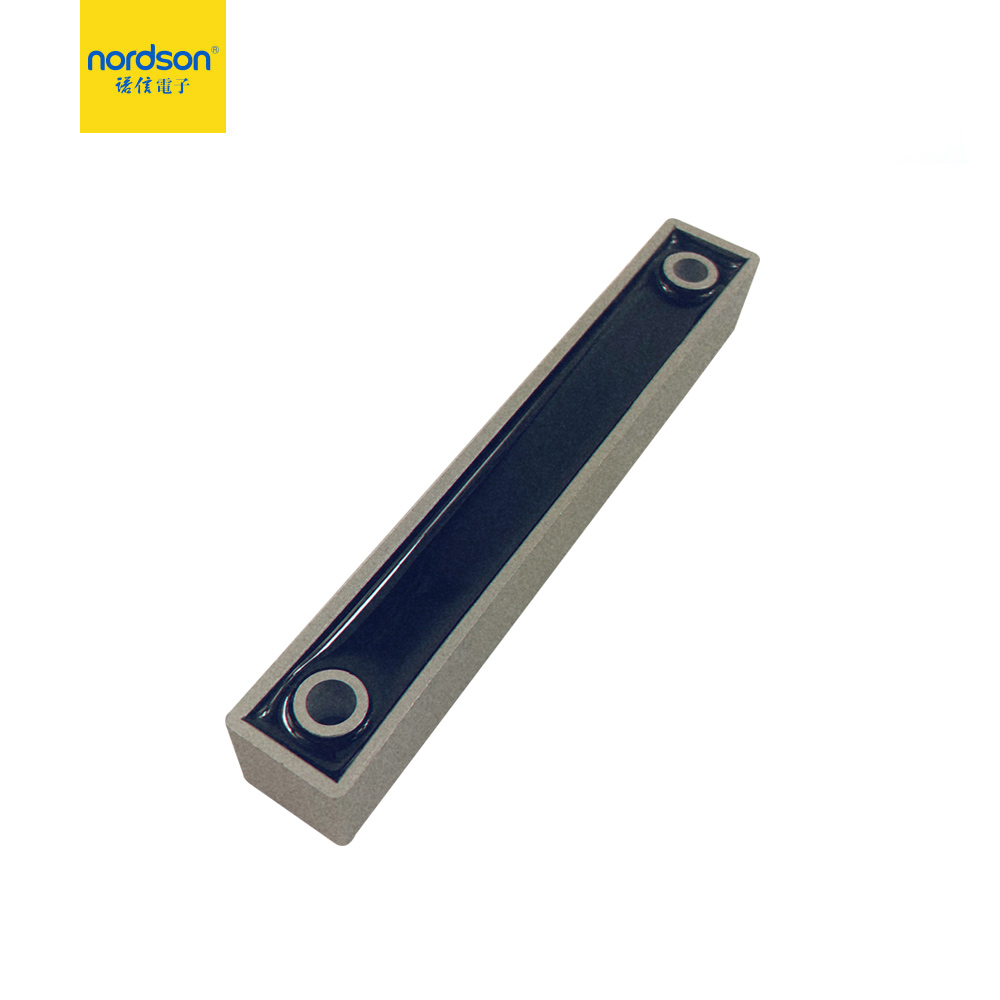

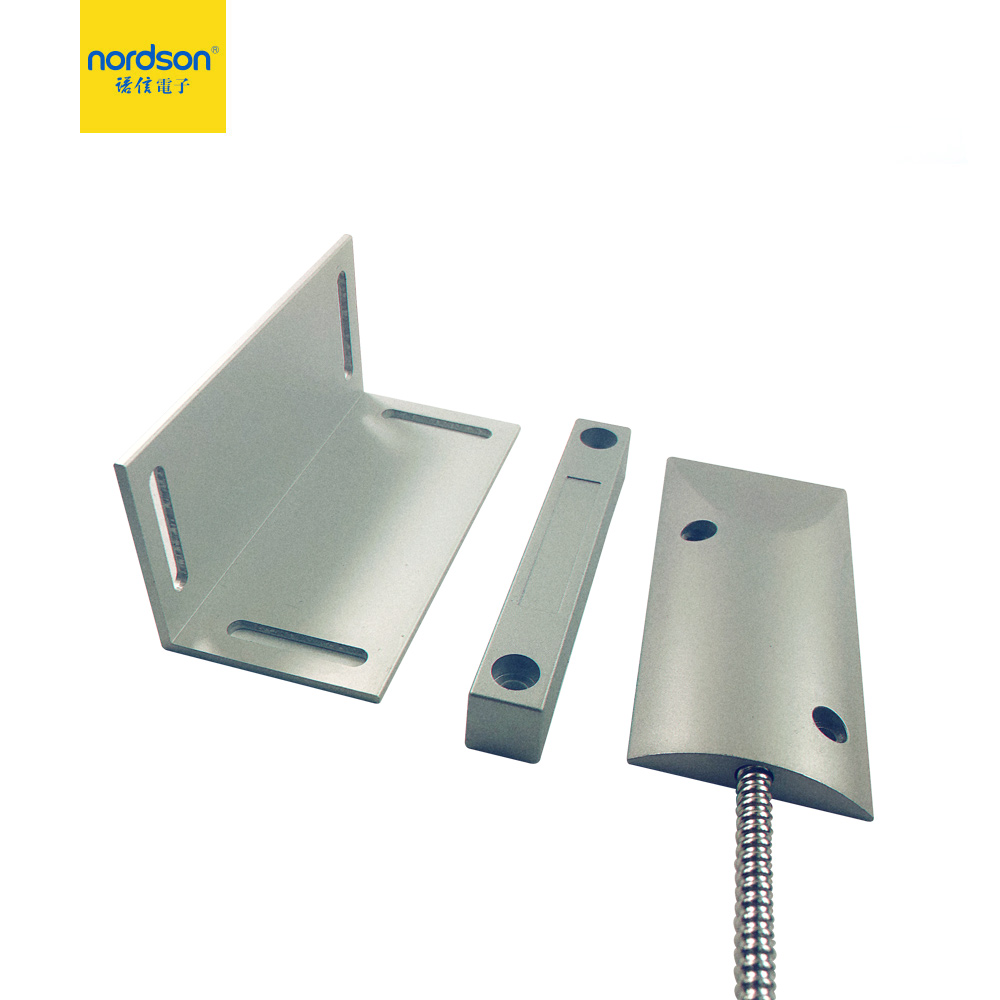

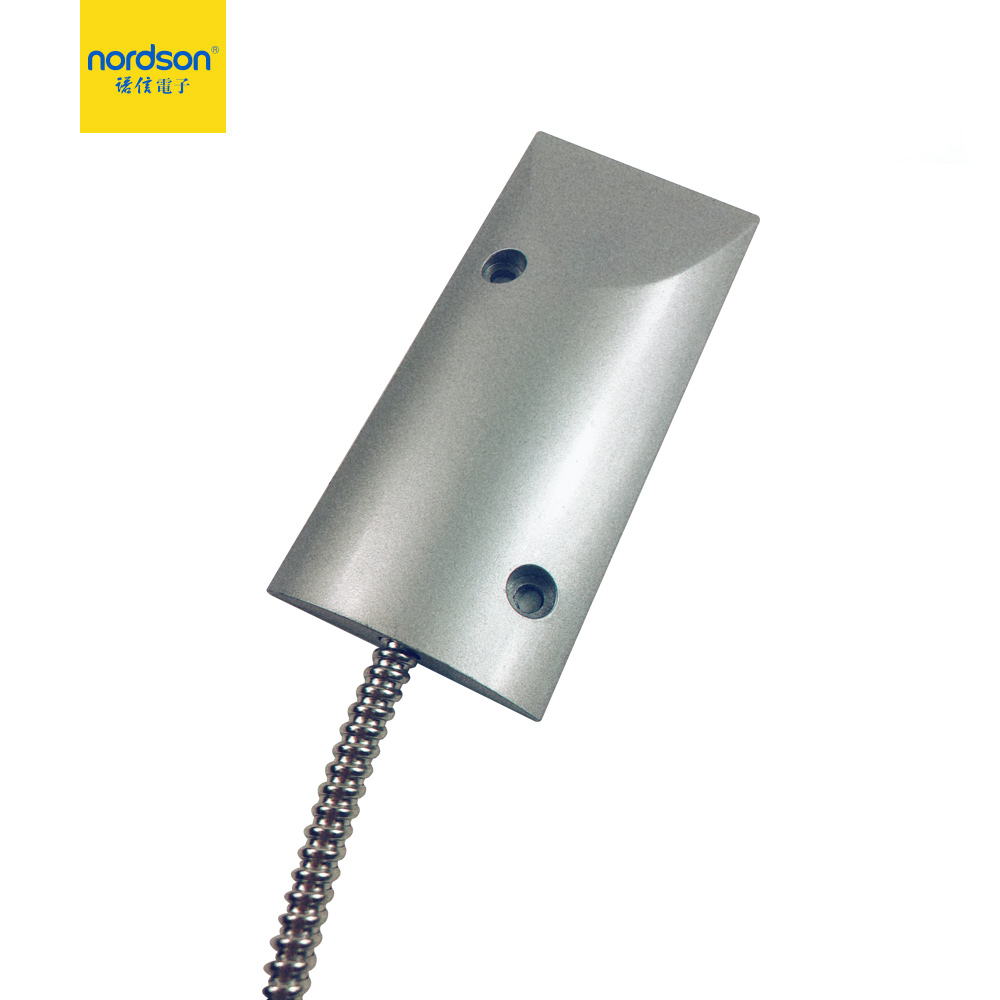

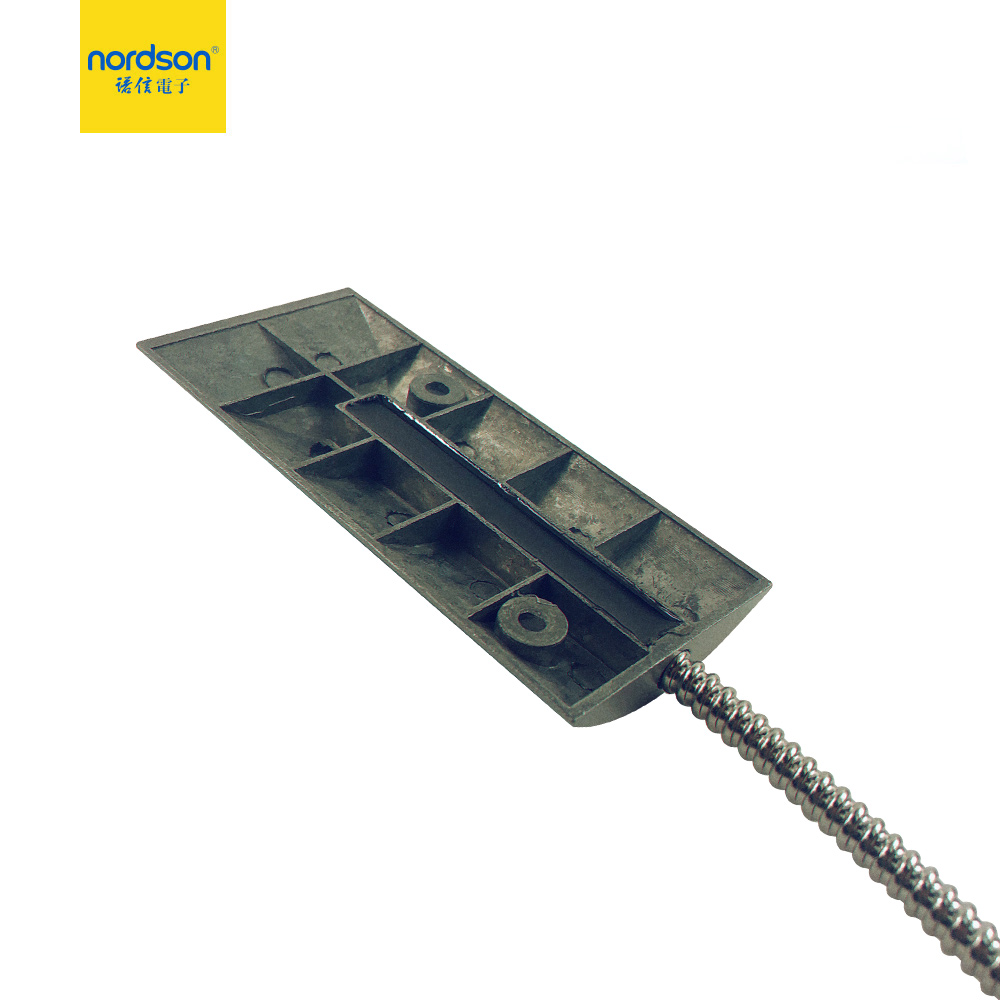

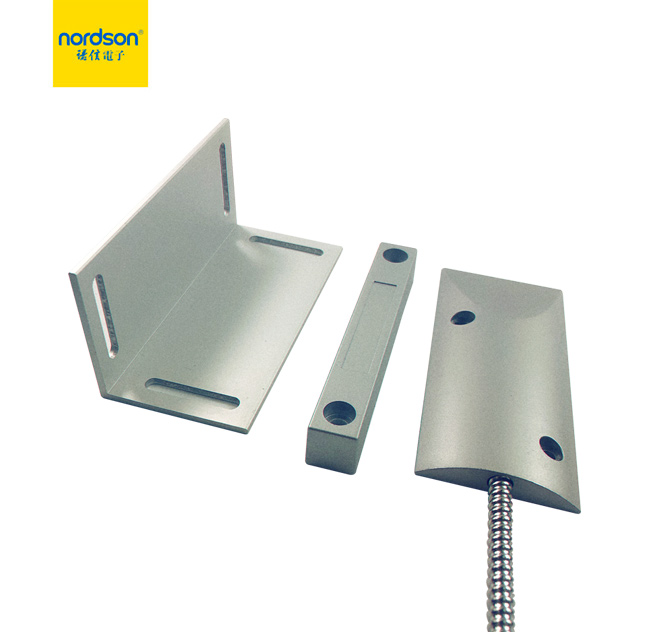

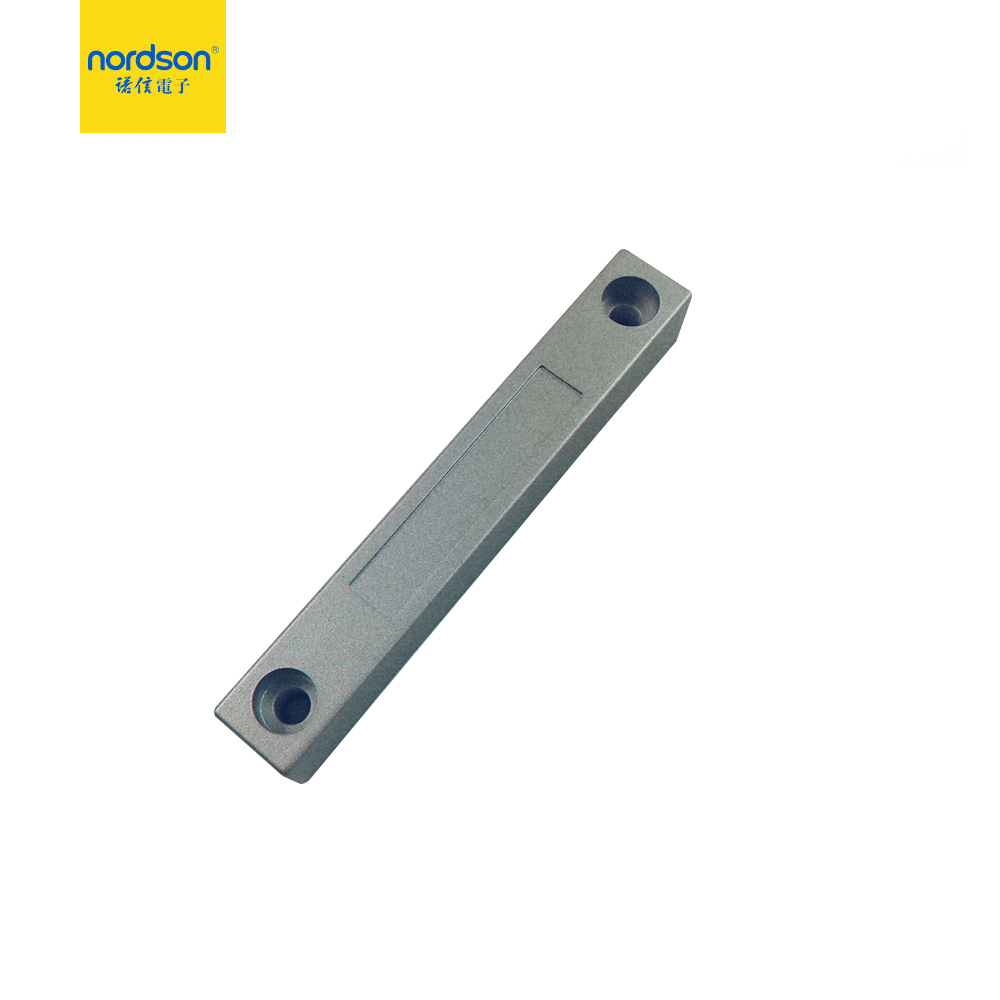

NK-Y1312 Magnetic Door Contact is an Intrusion Detector for doors and windows status monitoring in security system, which is made of a reed switch and a magnet. When doors and windows are closed, switch contact is affected by magnetic field of the magnet then forms a conducting state; When doors and windows are broken by force, magnet will be far from contact, then switch is disconnected and cause alarm.

1.Monitor window and door status at real time, to alarm and anti-theft for the safety of your property.

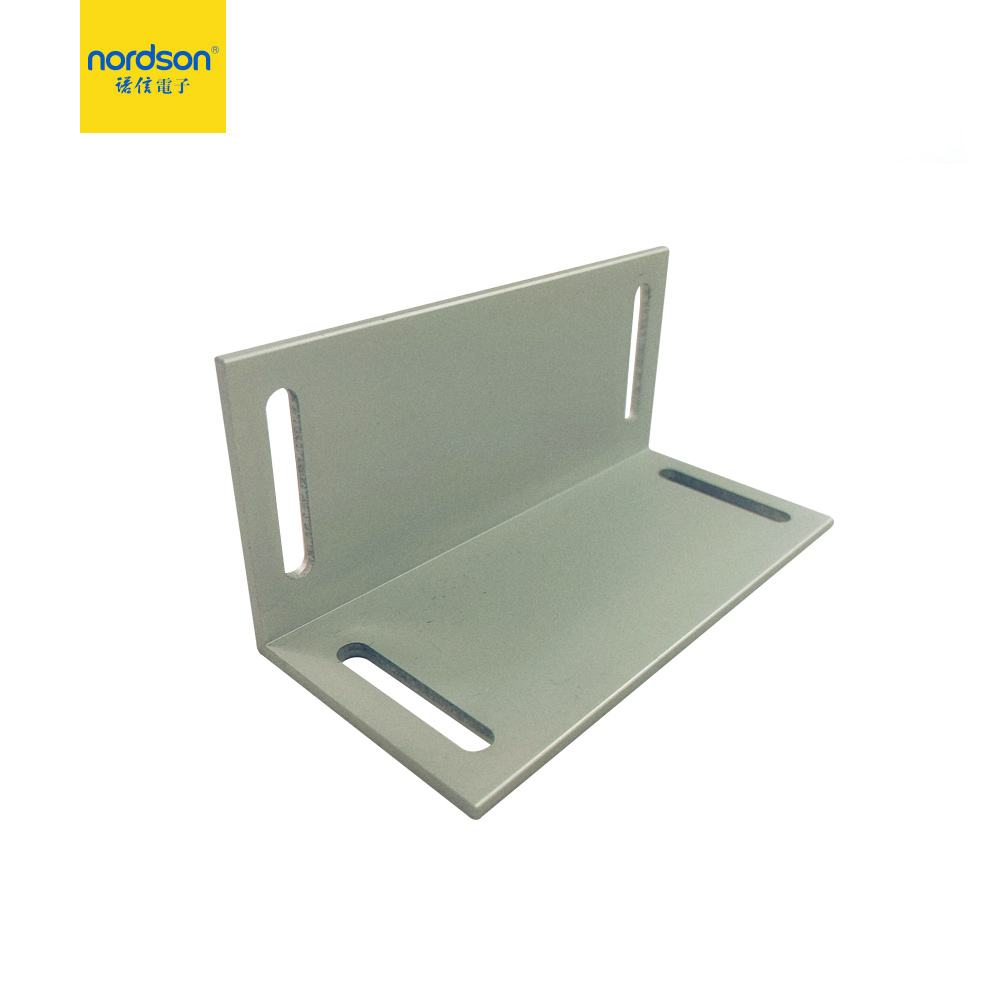

2.With Mounting bracket, it can adjust mounting distance, easy and convenient installation.
3.Multiple reed form are for options, to satisfy different need of security system.
4.Made of Zinc alloy case and stainless steel tube wire, it's strong and durable.
5.Door contact can be used more than 100000 times, ultra long working life.

Model	NK-Y1312
size	105*47.5*9.5mm, 88*20*20mm, 50*50mm
Reed Form	NC, COM (NO, COM/NC, NO, COM Customization )
Operating Gap	50-70mm
Case Material	Zinc Alloy, silver-gray
MAX voltage	100V
Rated current	0-0.5A
Power	10W
Wire rode	1007UL #22AWG 550mm,380mm Stainless steel tube
Switch Life	>100000 times
Identification	CE / FCC / RoHS
Application	Ideal for roll door
Packing	1pcs/bag ， 50pcs/carton ，18kgs/ctn
