You may have ever seen small size access control reader before, but now you have to see our mini card reader. It’s the one of the smallest card reader in the world: easy installation with complete functions. Since it’s embedded card reader, only taking small space, installation requirement is less for wider application

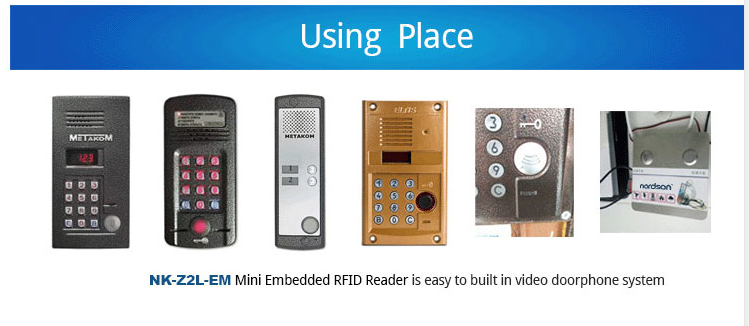

The feature of this access control reader is not only small size, it also has many powerful function: Compatible with Wiegand 26/34, able to connect with more type of access control terminal and video door phone system.What’s more, it has two color LED visual indication! So even in dark environment, you can see working status clearly when swiping card.
Our product has high quality and security, because embedded installation possess the function of tamper device, keep door access control safe. Besides, it’s waterproof IP68 level, so you don’t need to worry rainy day or cover it water careless.

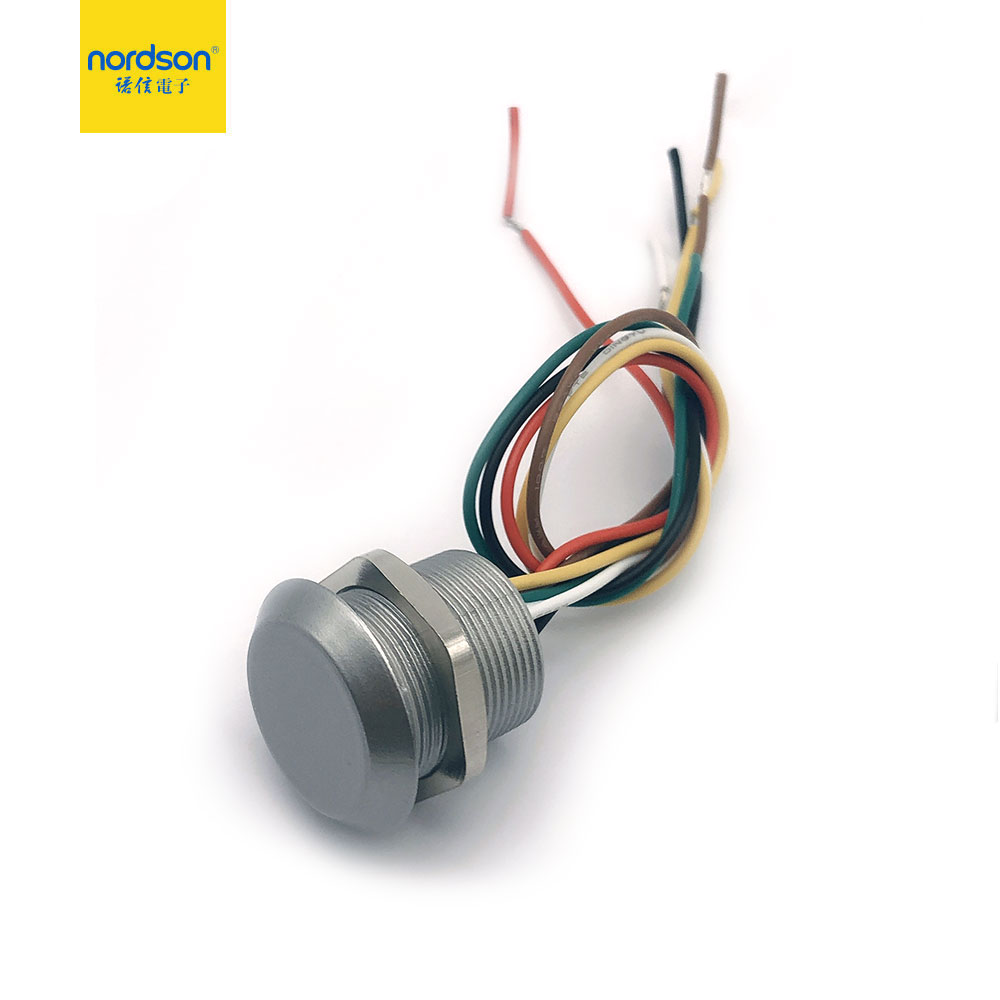

NK-Z2L-EM-Plus&NK-Z2L-MF-Plus is the second generation of our mini card reader. It’s more stable and safe to use. If you want access control to be easy and efficient, you should try the new mini access control reader. I’m sure it won’t let you down. Such powerful function and low price, save your space. There are two type for options: NK-Z2L-EM-Plus use EM/ID cards, NK-Z2L-MF-Plus use Mifare/IC cards. You can replace old or broken card reader by our product easily! Don’t hesitate and buy it now!
Model | NK-Z2L-EM-Plus |
Card Type | EM-ID |
Waterproof | IP68 |
Voltage | DC8~18V |
Current | ≤100mA |
Ambient Temperature | -30℃~50℃ |
Reading Range | 1~3.5CM |
Output Format | Wiegand-26/34 |
Visual indication | Two color LED(Red/Green) |
Material | Poliamd (High temperature resistant, fire prevention) |

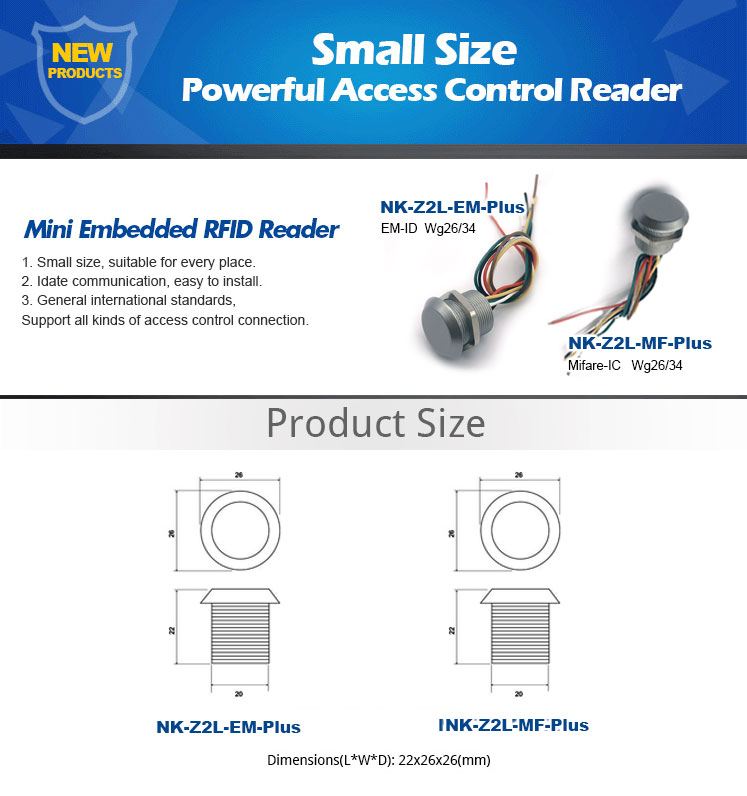

Dimensions | D26 x 22mm |
Spiral Diameter(mm) | D20mm |
Weight | 0.02kg |
Color | Silver |
Wiring | Black-GND,White-D1,Green-D0,Yellow-LED,Brown-WG26/34 |
Model | NK-Z2L-MF-PLlus |
Card Type | Mifare-IC |
Waterproof | IP68 |
Voltage | DC8~18V |
Current | ≤100mA |
Ambient Temperature | -30℃~50℃ |
Reading Range | 1~3.5CM |
Output Format | Wiegand-26/34 |
Visual indication | Two color LED(Red/Green) |
Material | Poliamd (High temperature resistant, fire prevention) |
Dimensions | D26 x 22mm |
Spiral Diameter(mm) | D20mm |
Weight | 0.02kg |
Color | Silver |
Wiring | Black-GND,White-D1,Green-D0,Yellow-LED,Brown-WG26/34 |
